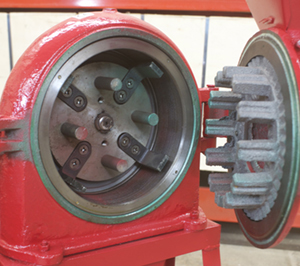

Grinders

for fine material







Single Phase Electric

Three Phase Electric

Diesel Powered

PTO Powered

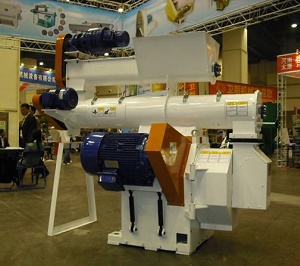

Large Pellet Mills

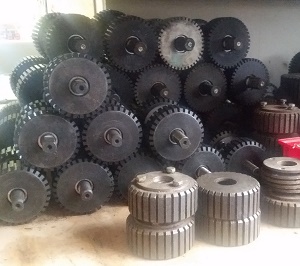

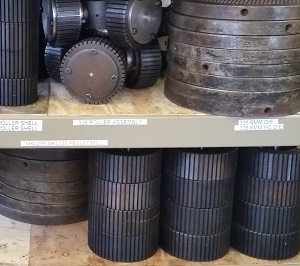

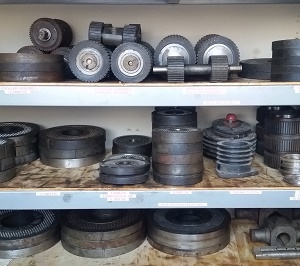

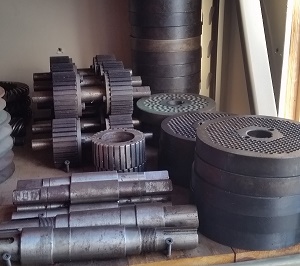

Spare Parts

Working Principles

Single Phase Electric

Three Phase Electric

Gasoline Powered

Diesel Powered

PTO Powered

Shaft / Pulley Drive

Working Principles

Single Phase Electric

Three Phase Electric

Gasoline Powered

Diesel Powered

Cyclone Attachment

Spare Parts

Working Principles

Single Phase Electric

Gasoline Powered

Stainless Steel

Stainless Steel with
Dust Collector Option

Spare Parts

Working Principles

Products are intended for use with animal feed, fertilizer, and fuel production, but are not in compliance
with food grade for human consumption unless otherwise specified in the product description.



Buy a Pellet Mill and Hammer Mill together
and receive 10% off the cost of a Hammer Mill

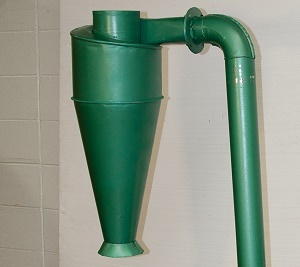

and optional Cyclone Attachment!

PelletMasters Pellet Mills for Wood


All PelletMasters Pellet Mills suitable for wood will also produce pellets from softer materials,
at a slightly lower production rate than a pellet mill designed for feed and fertilizer.

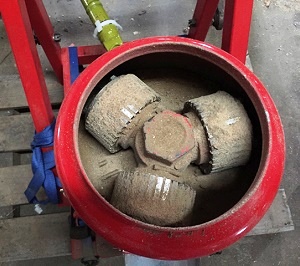

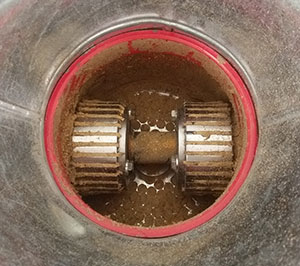

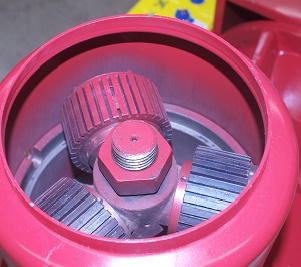

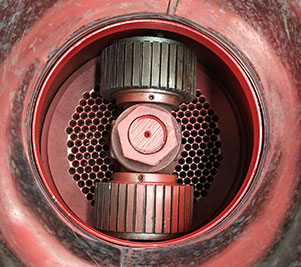

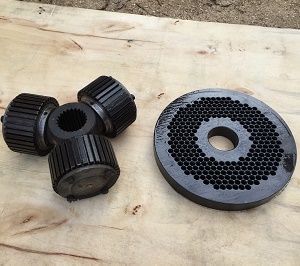

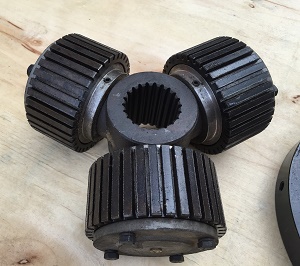

Pellet Mill Working Principles: Raw material is placed into the feeding hopper, which
leads to the pellet mill head, where the rollers and die are located. Material should not
exceed ½ to ¾ the height of the rollers. Material will be forced by the rollers through the

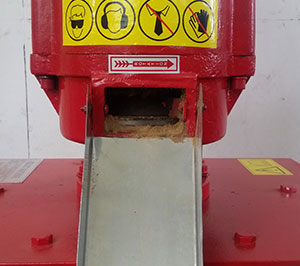

die creating heat and creating pellets. Pellets will exit the pellet mill through the discharge
port and will fall with gravity into your container. With the correct recipe of heat, moisture,
and force (pressure), you should be making perfect pellets.

A conservative estimate of production rate for our Pellet Mills with a 6mm die hole size:
Electrically powered = ~20 pounds per horsepower per hour.
Gasoline, Diesel, and PTO powered = ~13 pounds per horsepower per hour.

Note: All new pellet mill dies must be conditioned before the first use.
Note: Raw material should be no larger than the die hole size. If your material is larger
than the die hole size, material will need to pass through a Hammer Mill first.

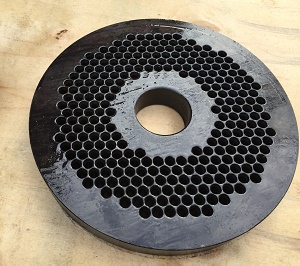

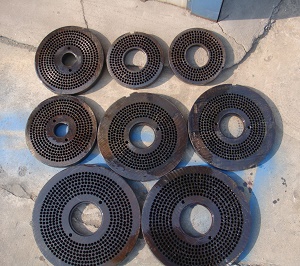

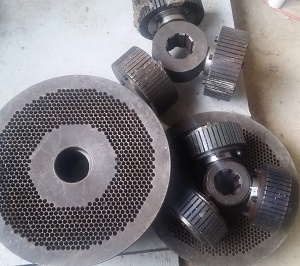

PelletMasters Pellet Mills ship with a standard 6mm die.
Other die sizes available from 3mm to 8mm depending on the model.
Other die sizes are available upon request and can be special ordered.
All additional dies ship free at the time of a purchase of a Pellet Mill.

Note: Actual mill color may vary.

220V 1ph Electric Pellet Mills for Wood


Note: 220V 1ph electricity is a standard in most residences.
Most electric ranges as well as electric clothes dryers utilize 220V 1ph power.

This is our own design and we are trying to gain information on interest for this machine.
We do not currently have inventory other than our prototype machine at this time. Coming Soon!



Die Size

Power

Price

Availability:

9"-2R

10hp 220V

$4,995

Prototype

  • image 1
  • image 2
  • image 3
  • image 4
  • image 4
  • image 2
  • image 4
  • image 4
  • image 4
  • image 4

Potentially available in Spring/Summber of 2017.
Will be available with two roller option only.

Click here for a larger image

Back to Menu


220V 3ph Electric Pellet Mills for Wood

Note: 220V 3ph electricity is usually found only in commercial and industrial buildings.



Die Size

Power

Price

Availability:

9"-2R

10hp 220V

$3,990

In Stock

9"-3R

15hp 220V

$5,495

In Stock

12"-2R

20hp 220V

$7,990

In Stock

13"-3R

30hp 220V

$10,795

In Stock

16"-3R

40hp 220V

$12,795

In Stock

  • image 1
  • image 2
  • image 3
  • image 4
  • image 4
  • image 4
  • image 4
  • image 4
  • image 4
  • image 4

Click here for a larger image

Back to Menu



Die Size

Power

Price

Availability:

8"

7.5hp 220V

$3,990

In Stock

8"

7.5hp 220V

$3,490

Demo Machine

12"

20hp 220V

$7,990

By Request

16"

30hp 220V

$11,490

By Request

  • image 1
  • image 2
  • image 3
  • image 4
  • image 4

Click here for a larger image

Back to Menu

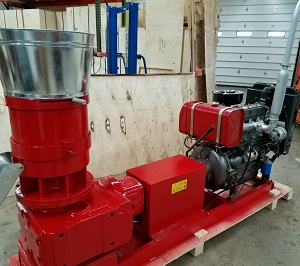

Diesel Powered Pellet Mills for Wood

Note: Due to shipping regulations, Acid for Battery shown is not included.



Die Size

Power

Price

Availability:

9"-2R

15hp Electric Start

$4,995

In Stock

9"-3R

22hp Electric Start

$5,995

In Stock

12"-2R

35hp Electric Start

$8,995

In Stock

13"-3R

55hp Electric Start

$10,995

In Stock

16"-3R

55hp Electric Start

$12,995

On Order

  • image 1
  • image 2
  • image 3
  • image 4
  • image 4
  • image 4
  • image 4
  • image 4
  • image 4
  • image 4

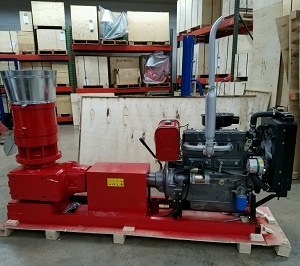

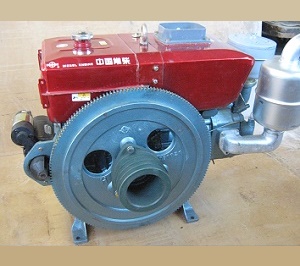

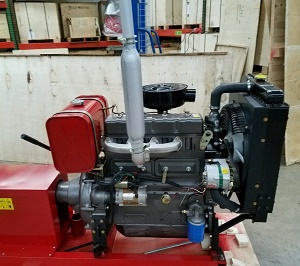

Photos show 22hp and 55hp Diesel Engines.

Click here for a larger image (9"-3R 22hp)

Click here for a larger image (16"-3R 55hp)

Back to Menu



Die Size

Power

Price

Availability:

16"

40hp Electric Start

$12,990

By Request

  • image 1
  • image 2
  • image 3
  • image 4
  • image 4

Click here for a larger image

Back to Menu



Die Size

Power

Price

Availability:

8"

15hp Electric Start

$3,675

By Request

10"

22hp Electric Start

$3,990

By Request

12"

32hp Electric Start

$4,495

By Request

12"

50hp Electric Start

$6,295

By Request

14"

55hp Electric Start

$8,095

By Request

16"

55hp Electric Start

$13,495

By Request

  • Image 1
  • image 2
  • image 3
  • image 4
  • image 4

Click here for a larger image

Back to Menu

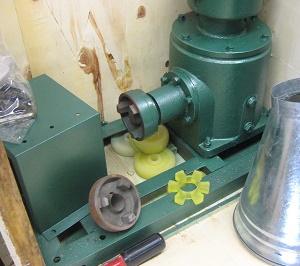

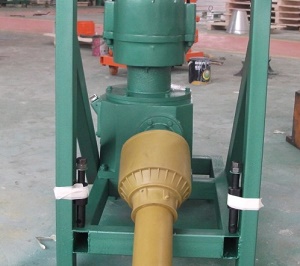

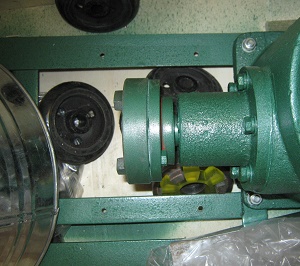

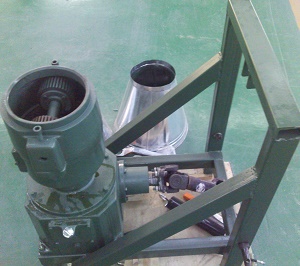

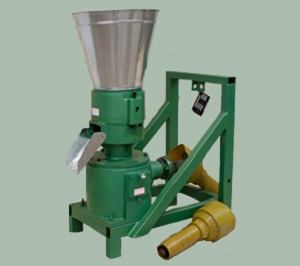

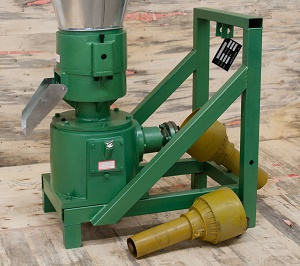

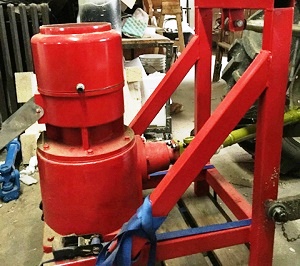

PTO Powered Pellet Mills for Wood



Model

Recommended Power

Price

Availability:

9"-2R

15hp

$2,995

In Stock

9"-3R

22hp

$3,595

In Stock

12"-2R

35hp

$5,495

By Request

13"-3R

45hp

$5,995

In Stock

16"-3R

60hp

$8,995

On Order

  • image 1
  • image 2
  • image 3
  • image 4
  • image 4
  • image 4
  • image 4
  • image 4
  • image 4

Click here for a larger image

Back to Menu



Die Size

Recommended Power

Price

Availability:

8"

15hp

$2,390

Demo Machine

10"

22hp

$2,990

By Request

12"

30hp

$3,690

By Request

14"

45hp

$4,690

Demo Machine

  • image 1
  • image 2
  • image 3
  • image 4
  • image 4
  • image 4

Click here for a larger image

Back to Menu

PelletMasters Pellet Mills for Feed and Fertilizer


Pellet Masters offers pellet mills and hammer mills in sizes ranging from
small mills suited to home owners wishing to cut their feed and/or fuel bills to larger mills
suitable for the small scale production of pellets.

Pellet Mill Working Principles: Raw material is placed into the feeding hopper, which
leads to the pellet mill head, where the rollers and die are located. Material should not
exceed ½ to ¾ the height of the rollers. Material will be forced by the rollers through the
die creating heat and creating pellets. Pellets will exit the pellet mill through the discharge
port and will fall with gravity into your container. With the correct recipe of heat, moisture,
and force (pressure), you should be making perfect pellets.

A conservative estimate of production rate for our Pellet Mills with a 6mm die hole size:
Electrically powered = ~20 pounds per horsepower per hour.
Gasoline, Diesel, and PTO powered = ~13 pounds per horsepower per hour.

Note: All new pellet mill dies must be conditioned before the first use.
Note: Raw material should be no larger than the die hole size. If your material is larger
than the die hole size, material will need to pass through a Hammer Mill first.

PelletMasters Pellet Mills ship with a standard 6mm die.
Other die sizes available from 3mm to 8mm depending on the model.
Other die sizes up to 12mm are available upon request and can be special ordered.
All additional dies ship free at the time of a purchase of a Pellet Mill.

Note: Actual mill color may vary.

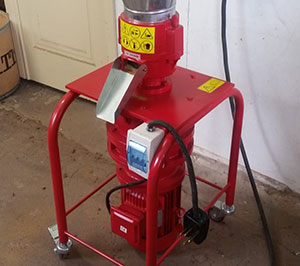

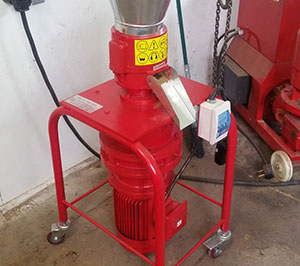

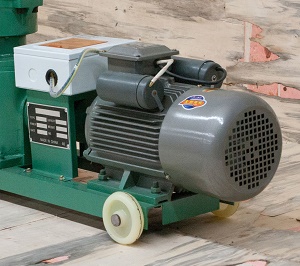

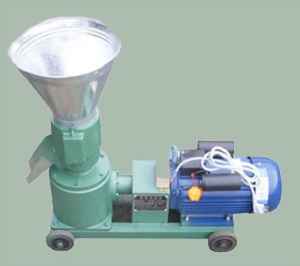

220V 1ph Electric Pellet Mills


Note: 220V 1ph electricity is a standard in most residences.
Most electric ranges as well as electric clothes dryers utilize 220V 1ph power.

Note: The 5hp, 7.5hp, and 10hp single phase motors are locally sourced & American made motors.


SPRING SPECIAL on the 5" 4hp Single Phase Electric Pellet Mill

Click here for details on the SPRING SPECIAL for Pellet Mills



Die Size

Power

Price

Availability:

5"

3hp 220V

$1,545

By Request

5"

4hp 220V

$1,585

In Stock

6"

5hp 220V

$2,990

In Stock

6"

7.5hp 220V

$3,675

In Stock

8"

10hp 220V

$4,390

In Stock

  • image 1
  • image 2
  • image 3
  • image 4
  • image 4
  • image 4
  • image 4
  • image 4
  • image 4
  • image 4

Click here for a larger image

Back to Menu

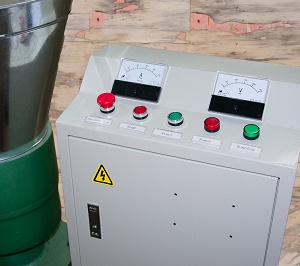

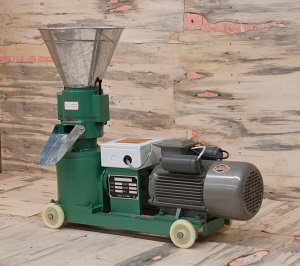

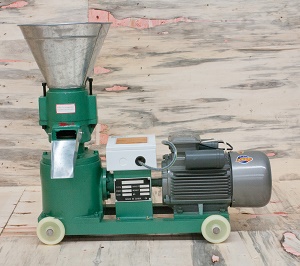

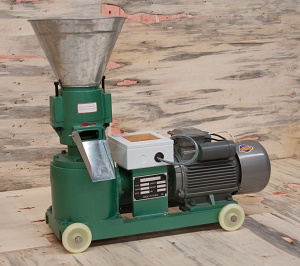

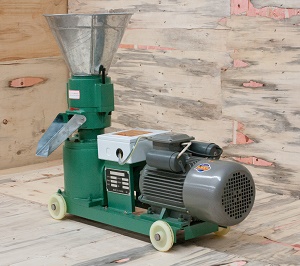

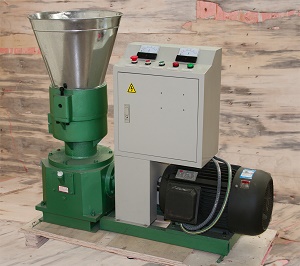

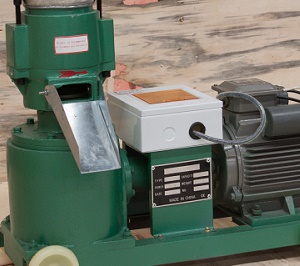

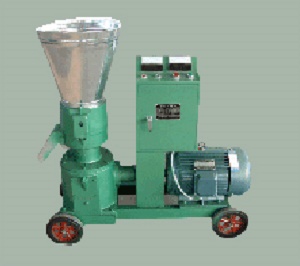

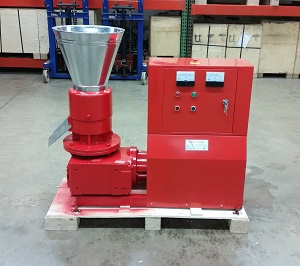

220V 3ph Electric Pellet Mills

Note: 220V 3ph electricity is usually found only in commercial and industrial buildings.



Die Size

Power

Price

Availability:

6"

5.3hp 220V

$1,700

In Stock

6"

7.5hp 220V

$2,260

By Request

8"

10hp 220V

$2,750

In Stock

9"

15 hp 220V

$3,590

In Stock

10"

20 hp 220V

$4,690

In Stock

12"

30 hp 220V

$5,900

In Stock

16"

40 hp 220V

$7,990

In Stock

  • image 1
  • image 2
  • image 3
  • image 4
  • image 4
  • image 4

Click here for a larger image

Back to Menu

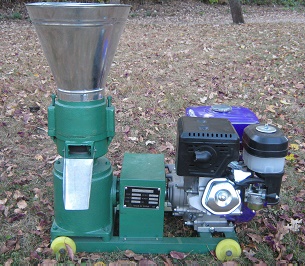

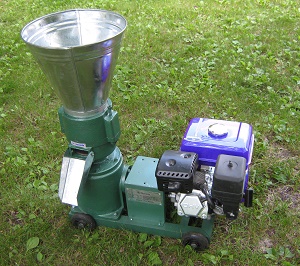

Gasoline Powered Pellet Mills

Note: Our supplier rates this engine as 7.5hp.
The engine is a clone of a Honda SX200 which Honda rates at 6.5hp.


SPRING SPECIAL on the 6" 13hp Electric Start Gasoline Pellet Mill

Click here for details on the SPRING SPECIAL for Pellet Mills



Die Size

Power

Price

Availability:

5"

6.5hp Pull Start

$1,785

By Request

6"

6.5hp Pull Start

$1,885

By Request

6"

13hp Electric Start

$2,185

In Stock

  • image 1
  • image 2
  • image 3
  • image 4
  • image 4

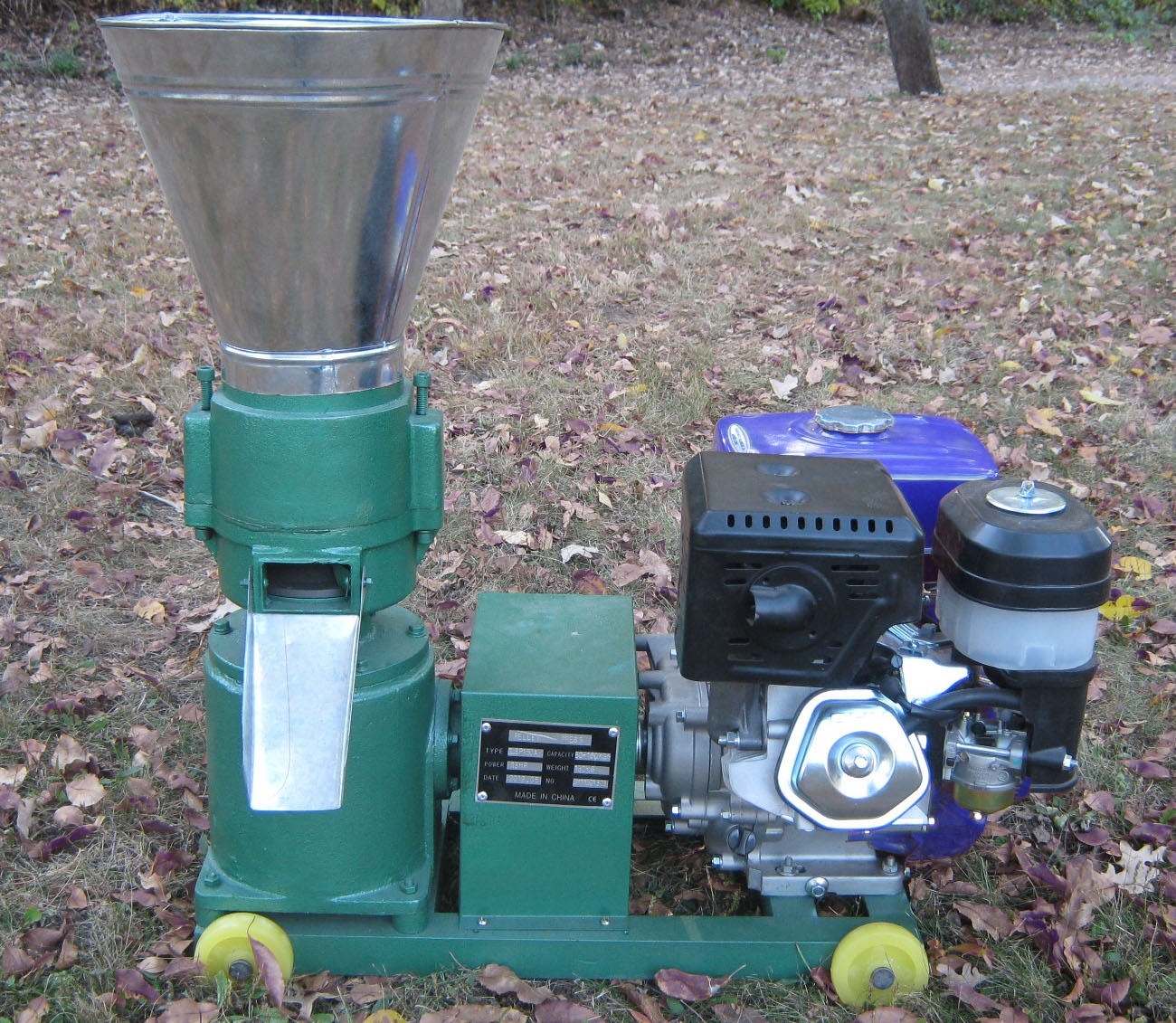

Click here for a larger image (6" 13hp)

Back to Menu

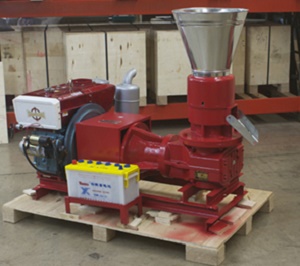

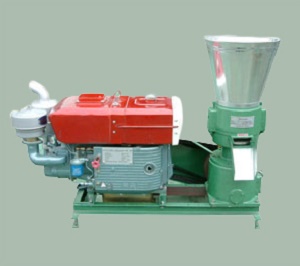

Diesel Powered Pellet Mills



Die Size

Power

Price

Availability:

5"

8hp Crank Start

$1,895

By Request

5"

8hp Electric Start

$2,395

By Request

6"

8hp Crank Start

$1,990

By Request

6"

8hp Electric Start

$2,495

In Stock

8"

15hp Crank Start

$2,785

By Request

8"

15hp Electric Start

$3,990

In Stock

9"

22hp Crank Start

$3,390

By Request

9"

22hp Electric Start

$4,290

On Order

  • image 1
  • image 2
  • image 3
  • image 4
  • image 4

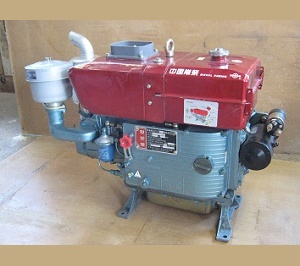

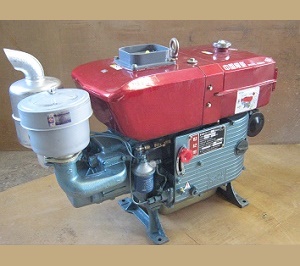

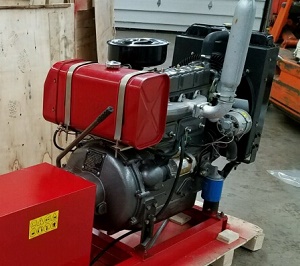

Photos show 22hp Diesel Engine.

Click here for a larger image

Back to Menu



Die Size

Power

Price

Availability:

10"

No Engine

$3,995

In Stock

10"

30hp Electric Start

$6,585

By Request

12"

55hp Electric Start

$7,690

By Request

14"

55hp Electric Start

$8,590

By Request

16"

55hp Electric Start

$9,790

By Request

  • image 1
  • image 2
  • image 3
  • image 4
  • image 4

Click here for a larger image (16" 55hp)

Back to Menu

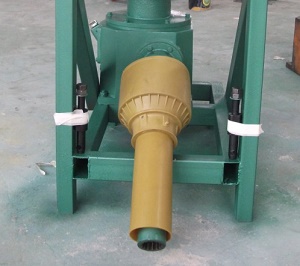

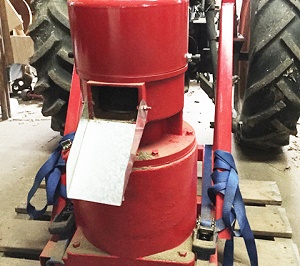

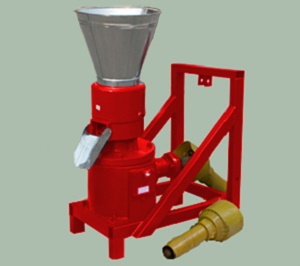

PTO Powered Pellet Mills



Die Size

Recommended Power

Price

Availability:

6"

8hp

$1,474

By Request

8"

15hp

$2,275

In Stock

9"

22hp

$2,390

In Stock

10"

30hp

$2,975

By Request

12"

45hp

$3,890

By Request

14"

50hp

$4,690

In Stock

16"

60hp

$5,990

On Order

  • image 1
  • image 2
  • image 3
  • image 4
  • image 4
  • image 4
  • image 4
  • image 4
  • image 4

Click here for a larger image

Back to Menu

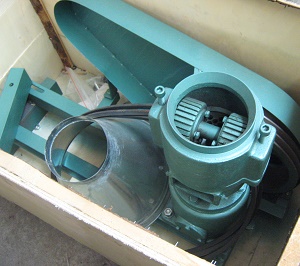

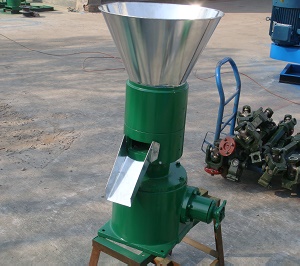

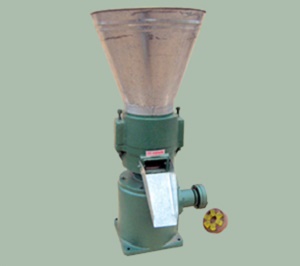

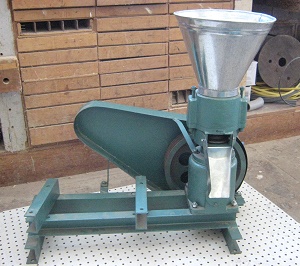

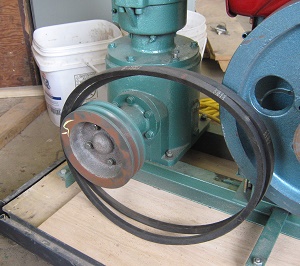

Non-Powered Shaft Drive Pellet Mills



Die Size

Power

Price

Availability:

5"

Shaft w/frame

$1,285

In Stock

6"

Shaft

$1,385

In Stock

6"

Shaft w/frame

$1,585

In Stock

8"

Shaft w/frame

$2,265

In Stock

9"

Shaft

$2,485

By Request

10"

Shaft w/frame

$2,965

In Stock

12"

Shaft

$4,465

By Request

14"

Shaft

$5,965

By Request

16"

Shaft

$6,565

By Request

  • image 1
  • image 2
  • image 3
  • image 4
  • image 4
  • image 4
  • image 4

Click here for a larger image

Back to Menu


Non-Powered Pulley Drive Pellet Mills



Die Size

Power

Price

Availability:

5"

Pulley w/frame

$1,285

In Stock

6"

Pulley w/frame

$1,585

On Order

8"

Pulley w/frame

$2,265

In Stock

9"

Pulley w/frame

$2,785

In Stock

  • image 1
  • image 2
  • image 3
  • image 4
  • image 4
  • image 4
  • image 4
  • image 4

These machines use qty. 2 V-Belt size B.

Click here for a larger image

Back to Menu

PelletMasters Large Pellet Mills


Please contact David at Pellet Masters for more information regarding
these Pellet Mills. Phone: 715-716-3100

Large Pellet Mills



Die Size

Power

Price

Availability:

10"

30hp Electric

Call for Price

By Request

22"

120hp Electric

Call for Price

By Request

  • image 1
  • image 2
  • image 3
  • image 4
  • image 4
  • image 4

Click here for a larger image (10" 30hp)

Click here for a larger image (22" 120hp)

Back to Menu

PelletMasters Fine Grinders


PelletMasters offers a line of grinders to reduce your materials to a smaller particle size that
our hammer mills are capable of. We offer grinders in varying sizes that are capable
of attaining particle sizes ranging from .4mm to 2mm.

Grinder Working Principles: Raw material is placed into the feeding hopper, which leads to the
grinder chamber where the material enters the side and is beaten and crushed (ground) by high
speed rotating pins on one side and stationary pins on the other side. Under centrifugal force the
material is processed quickly due to continuous squeezing, crushing, and beating, by the grinder pins.
Under rotor centrifugal force and gravity, crushed material and air is discharged through the holes
in the 360 degree screen while those that cannot get through will repeat the process until they are
small enough to pass through the screen and out the discharge outlet where a dust bag should be
used to collect it.

Production rate for our Grinders varies greatly with the different screen sizes.

Note: Raw material size entering the Grinder depends on type of material.

PelletMasters Fine Grinders ship with a standard 1.2mm screen.
Other screen sizes available from .4mm to 2mm depending on the model.
Additional screens are $34.00. All additional screens ship free with the purchase of a Hammer Mill.

Click here for Measuring a Screen: Millimeters vs. Mesh.pdf

Click here for a 0.4mm and 0.5mm sample photos


Note: Actual mill color may vary.

220V 1phase Electric Grinder

Note: 220V 1ph electricity is a standard in most residences.
Most electric ranges as well as electric clothes dryers utilize 220V 1ph power.

Power

Screen Dia.

Price

Availability:

3hp 220V

190mm

$1,095

In Stock

4hp 220V

230mm

$1,475

In Stock

  • image 1
  • image 2
  • image 3
  • image 4
  • image 4
  • image 4
  • image 4

Click here for a larger image (230mm)

Back to Menu


Gasoline Fine Grinder

Power

Screen Dia.

Price

Availability:

6.5 hp Gasoline

230mm

$1,475

In Stock

  • image 1
  • image 2
  • image 3
  • image 4
  • image 4
  • image 4
  • image 4

Click here for a larger image

Back to Menu


Stainless Steel Grinder

Stainless Steel Fine Grinders ship with a standard 100 mesh screen.
Other screen sizes available from 120 mesh to 10 mesh. Additional screens are $72.00.
All additional screens ship free with the purchase of a Stainless Steel Fine Grinder.

Note: The is a locally sourced & American made 7.5hp 2 pole TEFC Baldor 220V 60Hz single phase motor.

Note: This model is made with food grade 304 stainless steel, but does not include compliance labels.



Power

Screen Dia.

Price

Availability:

7.5 hp Electric

100 mesh

$5,995

On Order

  • image 1
  • image 2
  • image 3
  • image 4
  • image 4
  • image 4
  • image 4
  • image 4
  • image 4
  • image 4

Click here for a larger image

Back to Menu


Stainless Steel Grinder with Cyclone and Rotary Valve

Stainless Steel Fine Grinders ship with a standard 100 mesh screen.
Other screen sizes available from 120 mesh to 10 mesh. Additional screens are $72.00.
All additional screens ship free with the purchase of a Stainless Steel Fine Grinder.

Note: This model is made with food grade 304 stainless steel, but does not include compliance labels.



Power

Screen Dia.

Price

Availability:

7.5 hp Electric

100 mesh

T.B.D.

By Request

  • image 1
  • image 2
  • image 3
  • image 4
  • image 4
  • image 4
  • image 4
  • image 4
  • image 4
  • image 4

Click here for a larger image

Back to Menu

PelletMasters Hammer Mills


PelletMasters offers a wide range of hammer mills from small, perfect for the hobby farmer,
to larger models suitable for mid-sized industrial operations.

Hammer Mill Working Principles: Raw material is placed into the feeding hopper, which leads to the
hammer chamber where the material enters from the top and is beaten and crushed (hammered)
by high speed rotating blades. Under centrifugal force the material is processed quickly due to
continuous squeezing, crushing, and beating, by the hammer mill blades. Under rotor centrifugal
force, fan suction force, and gravity crushed material and air is discharged through the holes in
the 180 degree screen on the bottom while those that cannot get through will repeat the process
until they are small enough to pass through the screen into the lower body of the hammer mill.

Blower: After material passes through the screen into the lower body, fan suction from the blower
forces air and material out the discharge outlet (model 158) where a dust bag should be used to
collect it or upward and into the cyclone (all other models).

Cyclone Attachment: The material and air coming from the hammer mill blower enters the cyclone at the
top on the side. The material then falls in a circular motion through a downward vortex of the cyclone’s
outer chamber to the bottom where the material exits the cyclone. At the same time the clean air
flows through an upward vortex of the cyclone’s inner chamber to the top where it exits the cyclone.

A conservative estimate of production rate for our Hammer Mills with 6mm screens:
158 Hammer Mill = ~30 pounds (1/2 bushel) of shell corn per minute.
198 Hammer Mill = ~60 pounds (1 bushel) of shell corn per minute.
420 Hammer Mill = ~150 pounds (2 ½ bushels) of shell corn per minute.

Note: Raw material size entering the Hammer Mill depends on type of material.

PelletMasters Hammer Mills ship with a standard 6mm screen.
Other screen sizes available from 2mm to 10mm depending on the model.
Additional screens are $28.00 for model 158, $38.00 for model 198, and $49.00 for model 420.
All additional screens ship free with the purchase of a Hammer Mill.

Diagram and Explanation of What Happens in a Cyclone

Structure of Hammer Mill Diagram for Models 158, 198, and 420

Click here for Measuring a Screen: Millimeters vs. Mesh.pdf

Click here for a 2mm, 3mm, and 4mm sample photo or here for a 6mm sample photo


Note: Actual mill color may vary.

220V 1ph Electric Hammer Mills

Note: 220V 1ph electricity is a standard in most residences.
Most electric ranges as well as electric clothes dryers utilize 220V 1ph power.



Model

Power

Price

Availability:

158

3hp 220V 1ph.

$1,395

In Stock

  • image 1
  • image 2
  • image 3
  • image 4
  • image 4
  • image 4
  • image 4
  • image 4
  • image 4
  • image 4

Click here for a larger image

Back to Menu

SPRING SPECIAL! Model 198 Hammer Mill, Cyclone, and Shipping for $1995.00!

Click here for details on the SPRING SPECIAL

Shown with optional Cyclone Attachment. Available for an additional $165.00.



Model

Power

Price

Availability:

198

4hp 220V 1ph.

$1,695

On Order

  • image 1
  • image 2
  • image 3
  • image 4
  • image 4
  • image 4
  • image 4
  • image 4
  • image 4
  • image 4

Click here for a larger image

Back to Menu

Shown with optional Cyclone Attachment. Available for an additional $245.00.

Note: 10hp motor is a locally sourced American made motor.



Model

Power

Price

Availability:

420

10hp 220V 1ph.

$4,390

In Stock

  • image 1
  • image 2
  • image 3
  • image 4
  • image 4
  • image 4
  • image 4

Click here for a larger image

Back to Menu


220V 3ph Electric Hammer Mills

Shown with optional Cyclone Attachment. Available for an additional $165.00.

Note: 220V 3ph electricity is usually found only in commercial and industrial buildings.



Model

Power

Price

Availability:

198

5.3hp 220V 3ph.

$1,695

On Order

  • image 1
  • image 2
  • image 3
  • image 4
  • image 4
  • image 4
  • image 4
  • image 4
  • image 4
  • image 4

Click here for a larger image

Back to Menu

Shown with optional Cyclone Attachment. Available for an additional $245.00.
Cyclone Attachment for model 500 available for an additional $345.00.

Note: Photos show model 420 Hammer Mill measurements and size.



Model

Power

Price

Availability:

420

10hp 220V 3ph.

$2,990

By Request

420

15hp 220V 3ph.

$3,395

In Stock

500

30hp 220V 3ph.

$5,995

By Request

  • image 1
  • image 2
  • image 3
  • image 4
  • image 4
  • image 4
  • image 4

Click here for a larger image (Model 420)

Back to Menu


Gasoline Powered Hammer Mills

SPRING SPECIAL! Model 198 Hammer Mill, Cyclone, and Shipping for $1995.00!

Click here for details on the SPRING SPECIAL

Shown with optional Cyclone Attachment. Available for an additional $165.00.

Note: Our supplier rates this engine as 7.5hp,
This engine is a clone of a Honda SX200 which Honda rates at 6.5hp.



Model

Power

Price

Availability:

198

6.5hp Gasoline

$1,695

In Stock

  • image 1
  • image 2
  • image 3
  • image 4
  • image 4
  • image 4
  • image 4
  • image 4
  • image 4
  • image 4

Click here for a larger image

Back to Menu


Diesel Powered Hammer Mills

Shown with optional Cyclone Attachment. Available for an additional $245.00.
Cyclone Attachment for model 500 available for an additional $345.00.

Note: 22hp and 55hp Diesel motors are equipped with electric start.
Note: Photos show model 420 Hammer Mill measurements and size.
Note: Due to shipping regulations, Acid for Battery shown is not included.



Model

Power

Price

Availability:

420

22hp Diesel

$3,590

In Stock

500

55hp Diesel

$8,295

By Request

  • image 1
  • image 2
  • image 3
  • image 4
  • image 4
  • image 4
  • image 4
  • image 4
  • image 4
  • image 4

Photos show 22hp Diesel Engine.

Click here for a larger image (Model 420)

Click here for a larger image (Model 500)

Back to Menu

PelletMasters Spare Parts


PelletMasters offers a wide range of Spares and Replacement Parts

PelletMasters Pellet Mills and Hammer Mills ship with standard 6mm dies and screens.
Other die and screen sizes available from 2mm to 10mm depending on the model.
Additional die and screen costs very depending on the size and model of the mill.
All additional dies and screens ship free with the purchase of a Mill.

Click here for Measuring a Screen: Millimeters vs. Mesh.pdf

Spare and Replacement Parts

Call for costs and availability.


  • image 1
  • image 2
  • image 3
  • image 4
  • image 4
  • image 4
  • image 4
  • image 4
  • image 4
  • image 4

Click here for a larger image

Back to Menu

Packaging and Delivery


Our machines are packaged securely to a strong plywood case with a pellet securely
fastened to the base for easy loading and unloading.


Industrial Machinery


These are industrial machines. They are internally wired up and ready to go, but are not wired up for
your specific power receptacle because of the many different options available. You will be able to
use whichever plug and receptacle you choose in accordance with the power required by the machine.


Warranty and Returns


We stand behind our products. If you ever have any problems, we are here to answer the phone.

We carry a large inventory of alternate and general maintenance replacement parts.

If for some reason you receive your machine and it isn't what you expected or you changed your mind,
leave it in the crate and send it back for a full refund less shipping costs.


Be Careful and Follow All Safety Guidelines!
