PelletMasters Customer Sample Photos and Videos

Pellet Masters has run many samples over the years.
Here are photos and a few videos of some samples we have run.
Note: We are not at liberty to share information of some customer samples.

Pellet Mill Customer Samples Wood Samples Hemp Samples Hay/Straw Samples Leaves Samples

Hammer Mill Customer Samples Wood Samples Hemp Samples Hay/Straw Samples Leaves Samples

Fine Grinder Customer Samples Wood Samples Spices Samples Hay/Straw Samples Wheat Bran Samples

American Rotary and Gentec visit Pellet Masters, a Wisconsin based company who
offers 20 different models of electric, diesel, and PTO driven pellet & hammer mills.
Pellet Masters shares how pellets are made and the numerous applications for pellet products.

Fine Grinder Samples

Click on the photo for a larger image.

Examples of material run through different screen sizes. (examplesG)

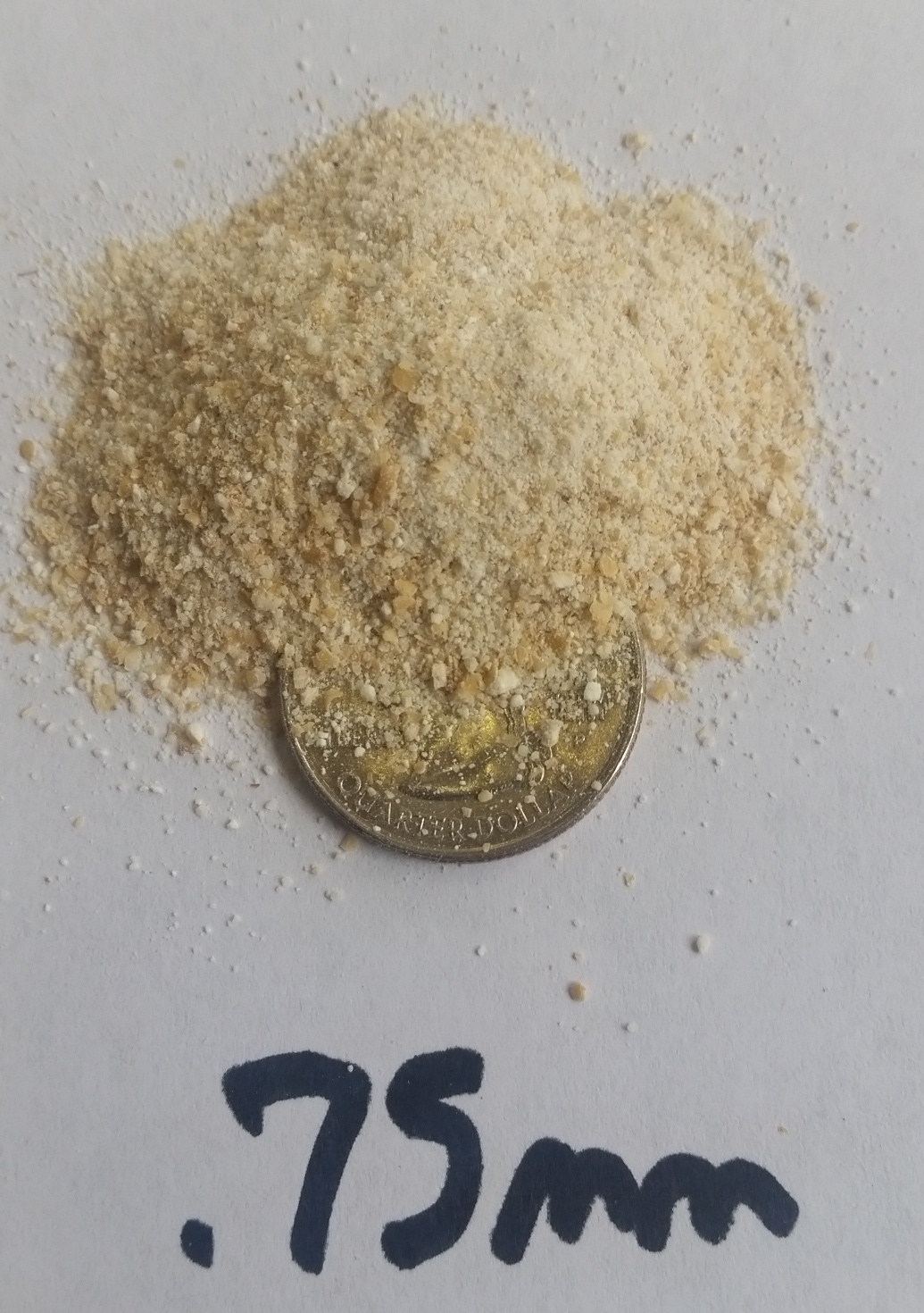

Mineral - 0.4mm Screen	Corn - 0.5mm Screen	Corn - 0.75mm Screen	Corn - 1.3mm Screen

---

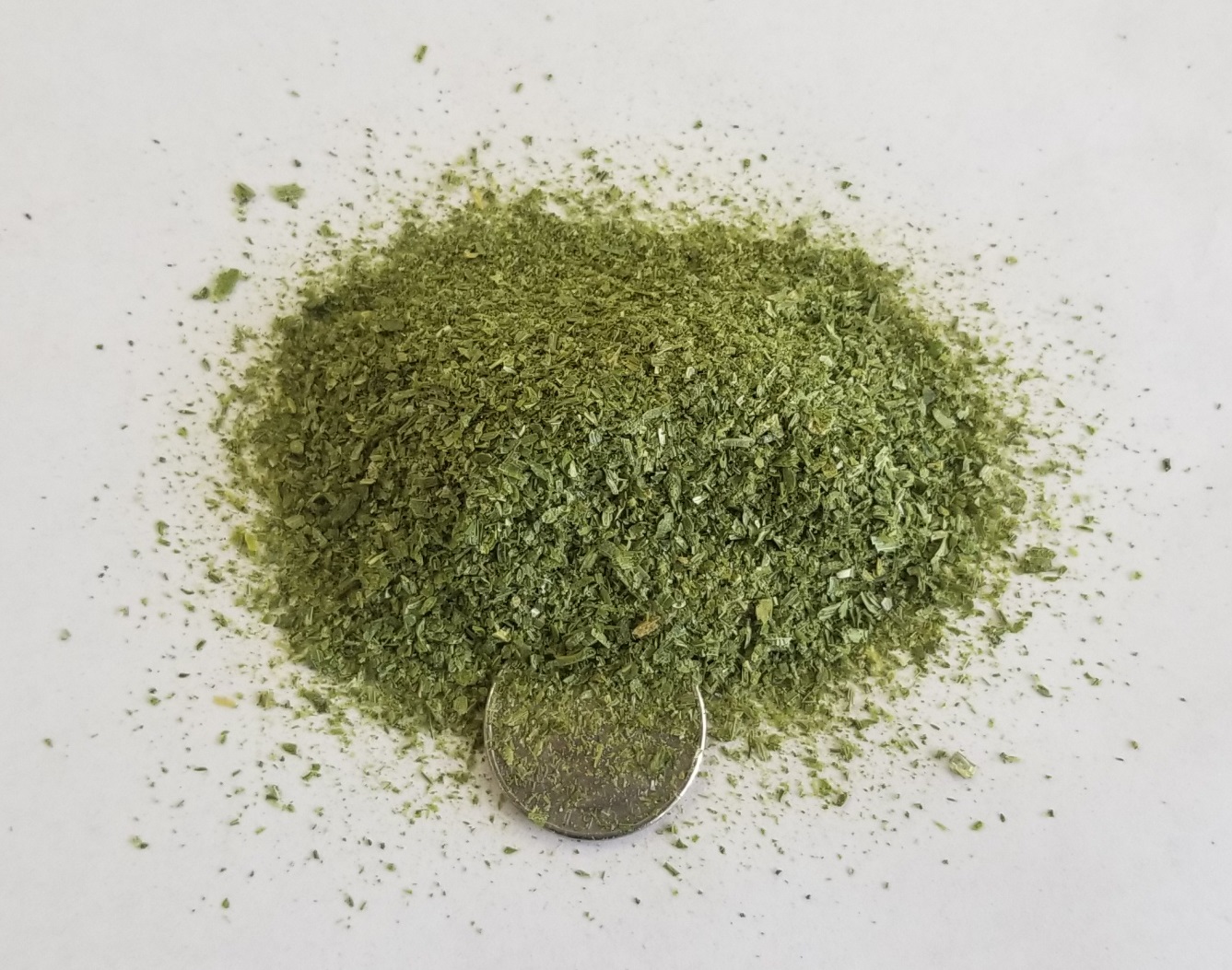

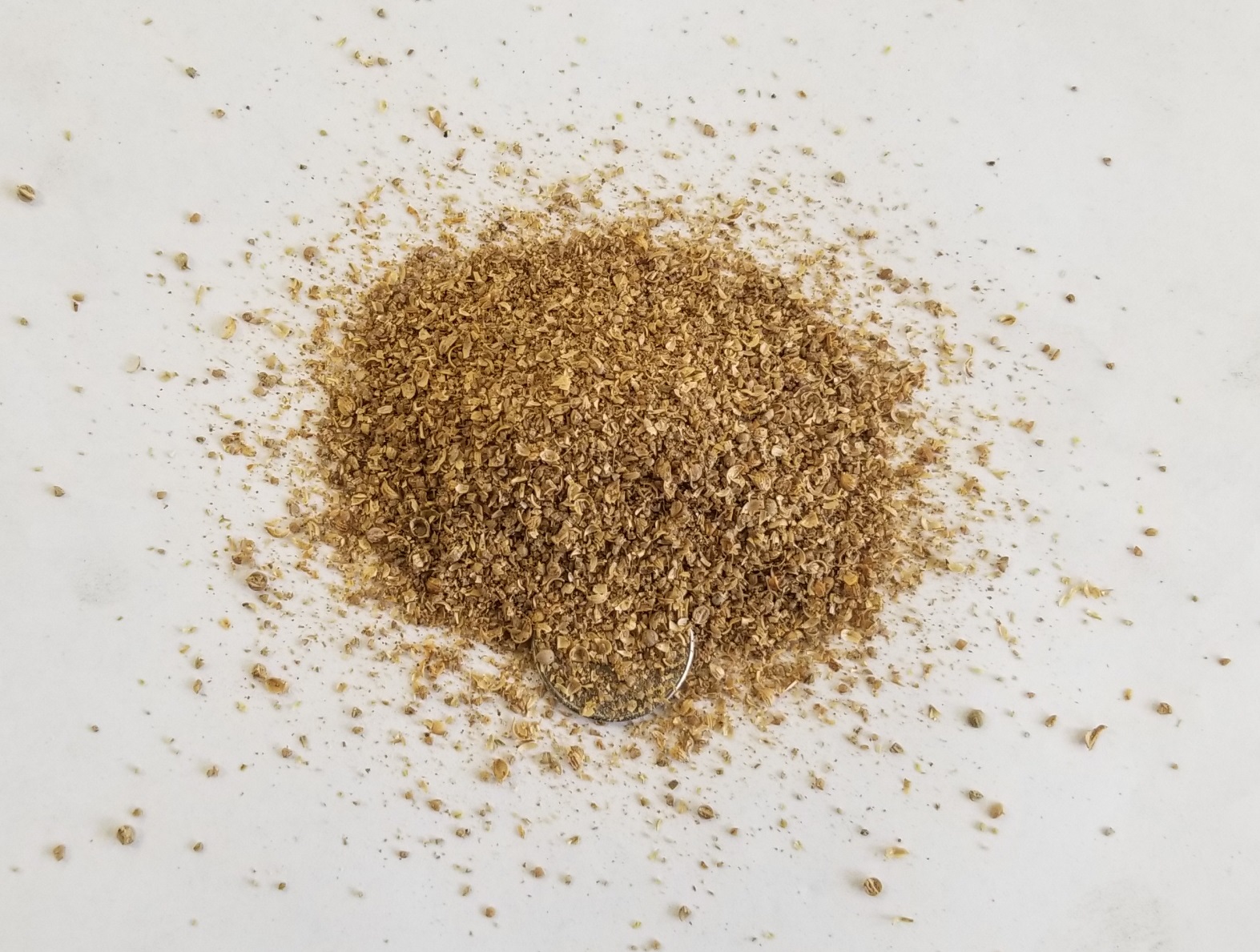

Spices and Vegetables run through the Model 230 Fine Grinder with a 3mm (1/8") screen. (spicesG)

(This is what a hammer mill with a 3mm (1/8") screen would produce as well.)

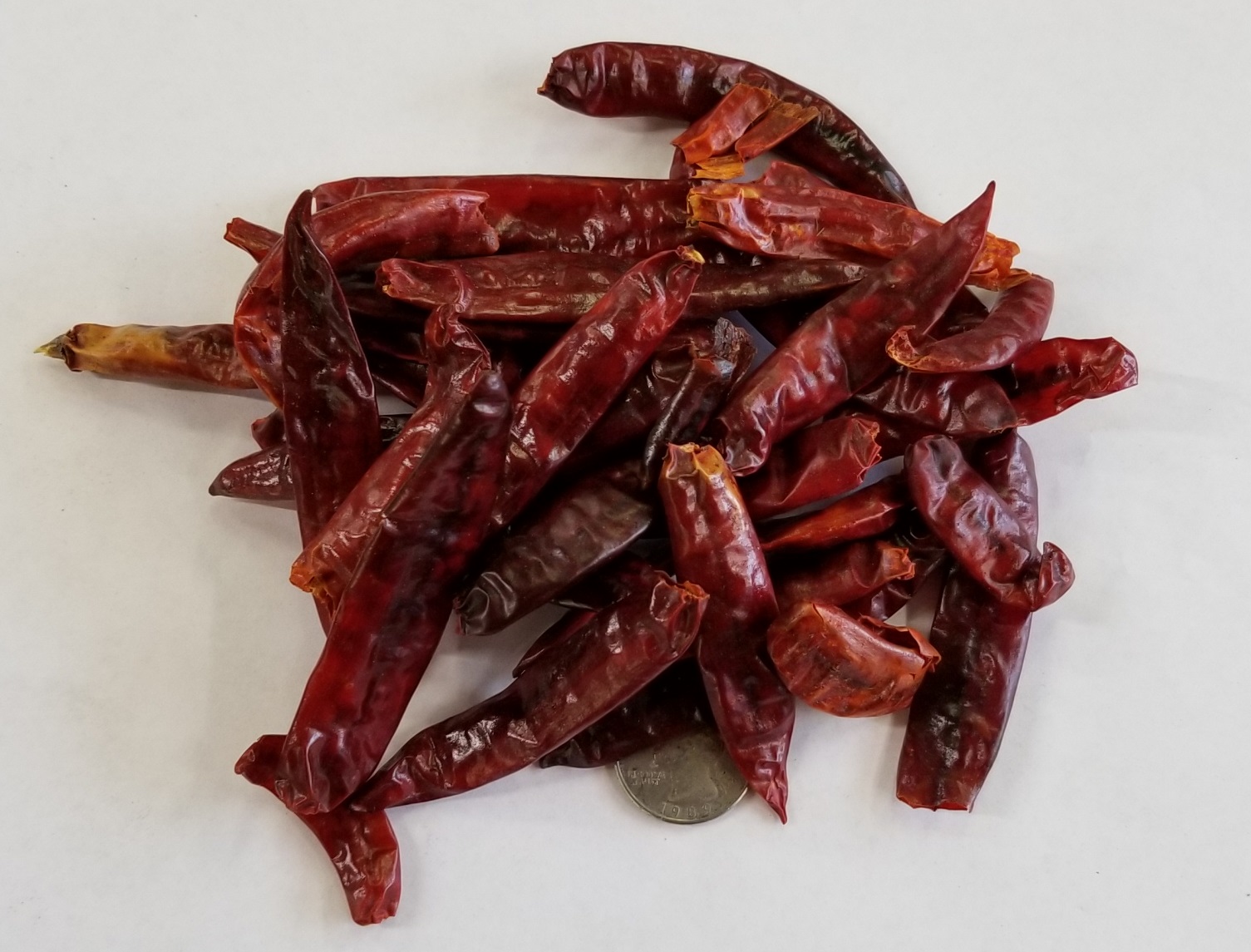

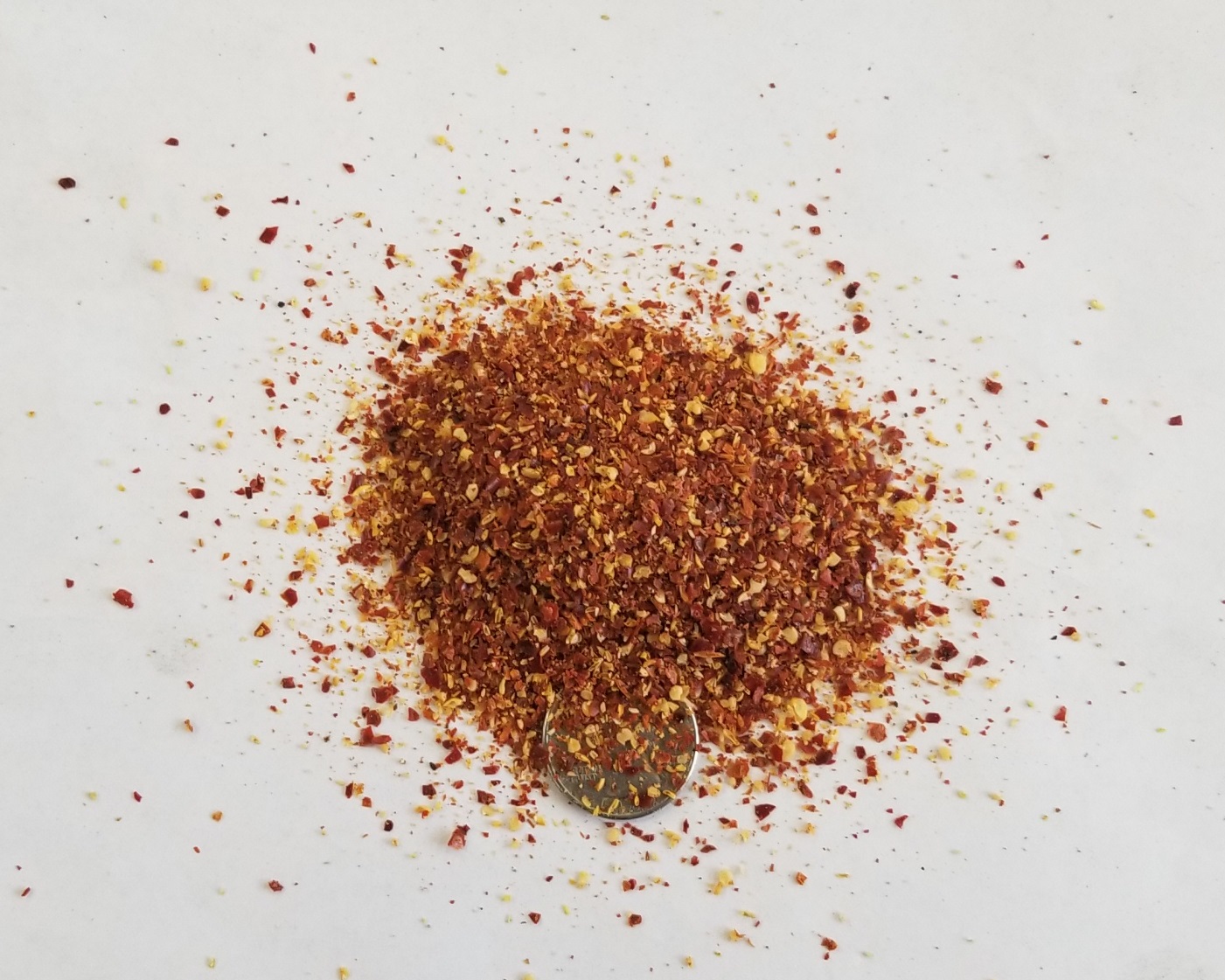

Bird's Eye Chili Pepper	Bird's Eye Chili Pepper	Bird's Eye Chili Pepper	Bird's Eye Chili Pepper

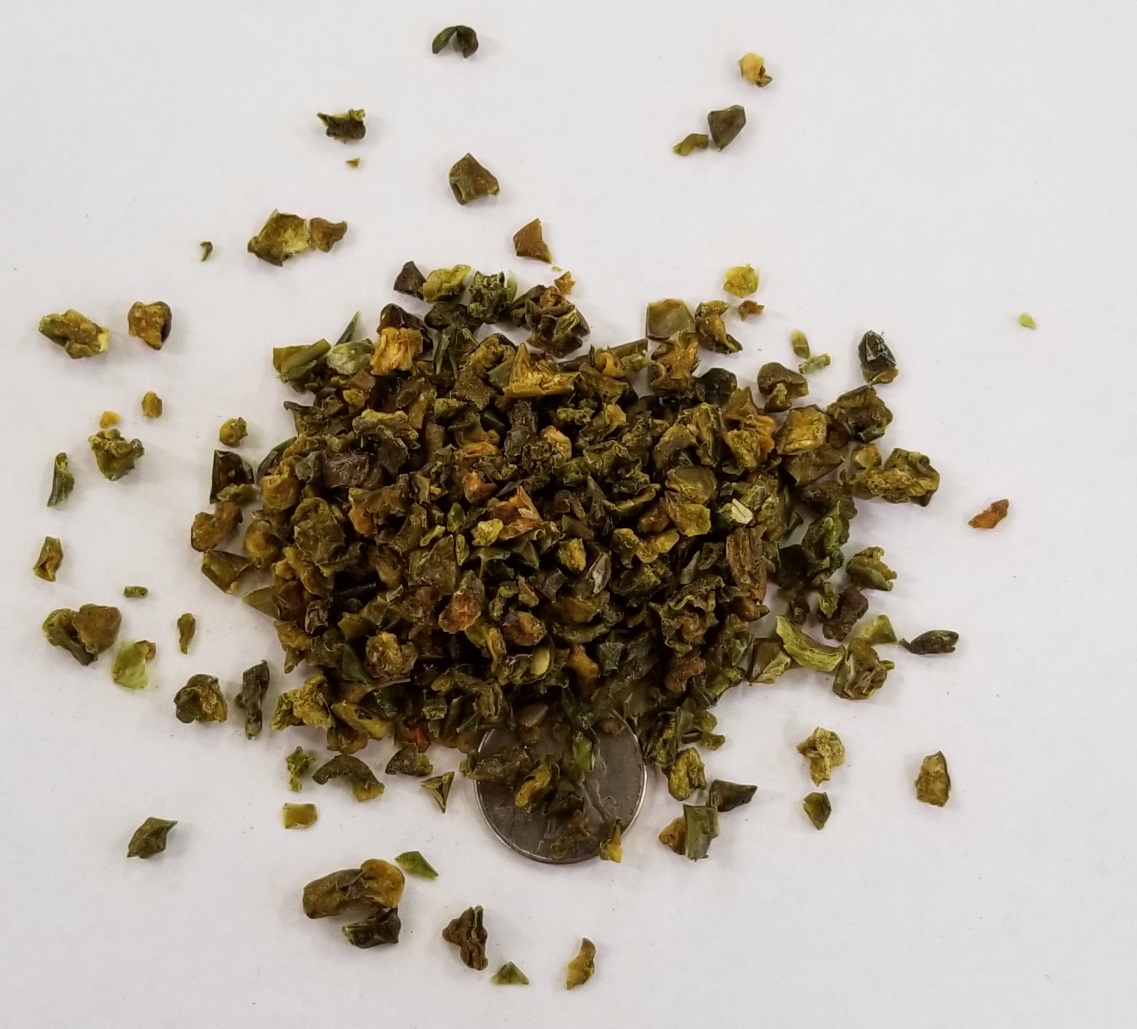

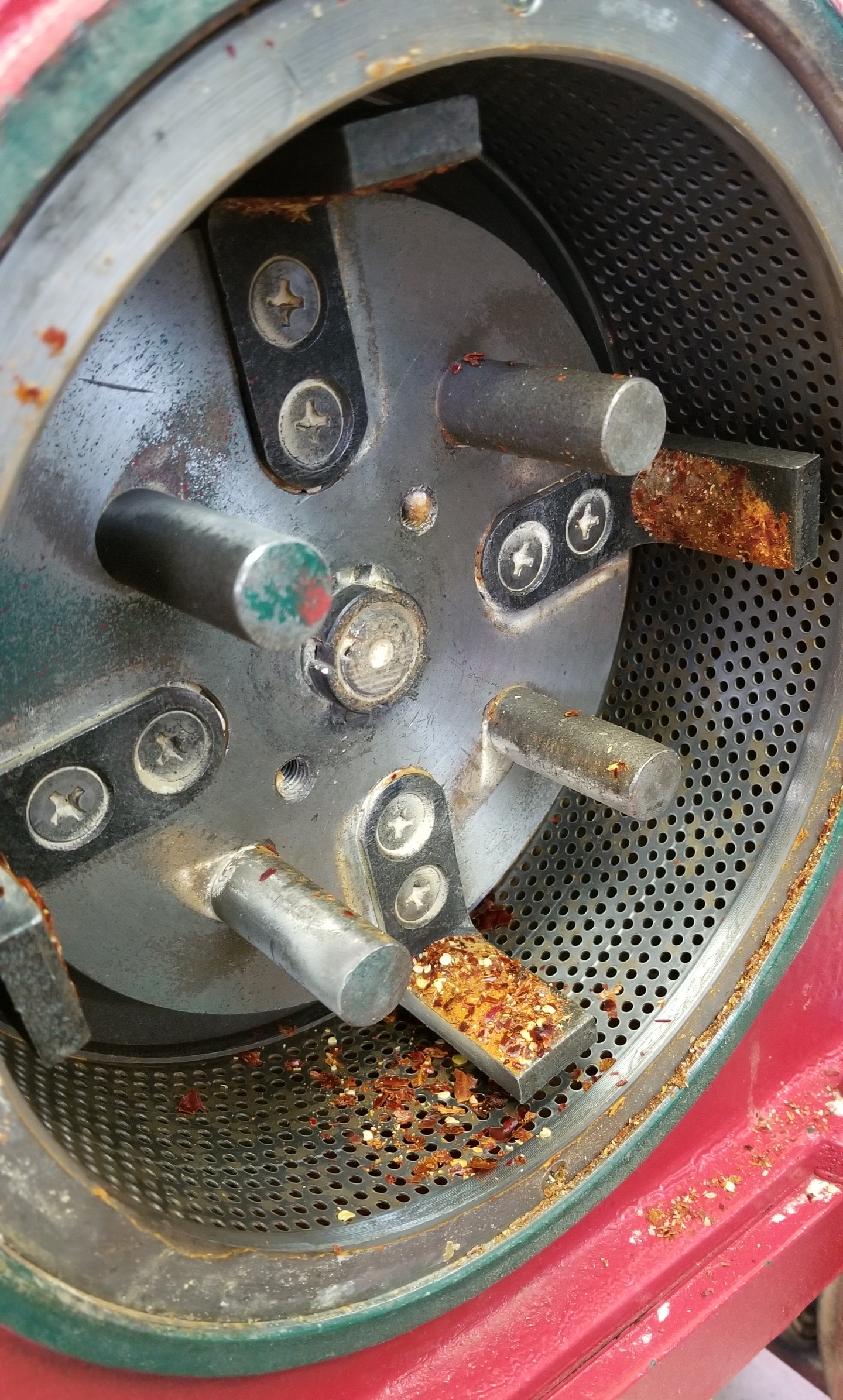

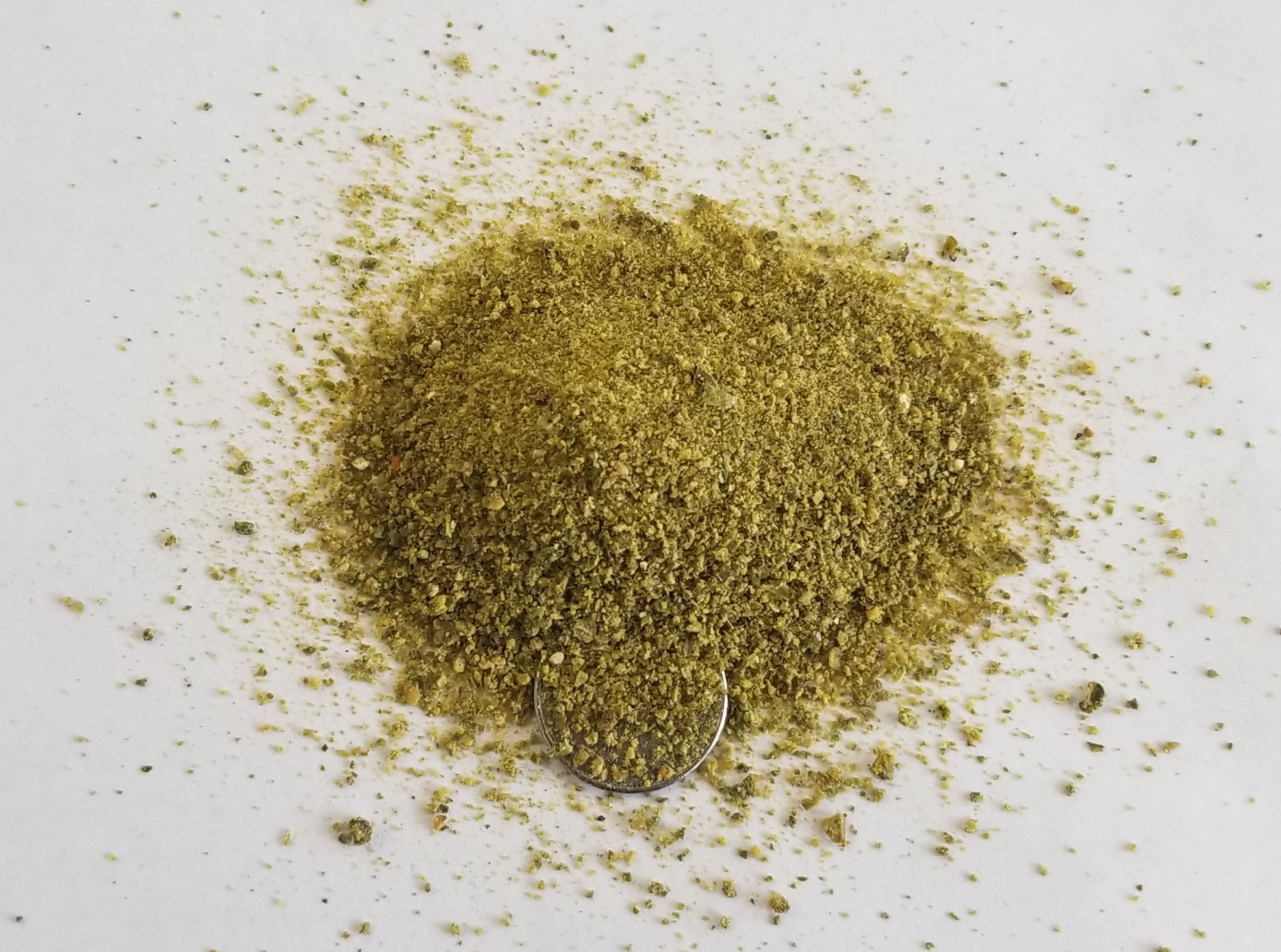

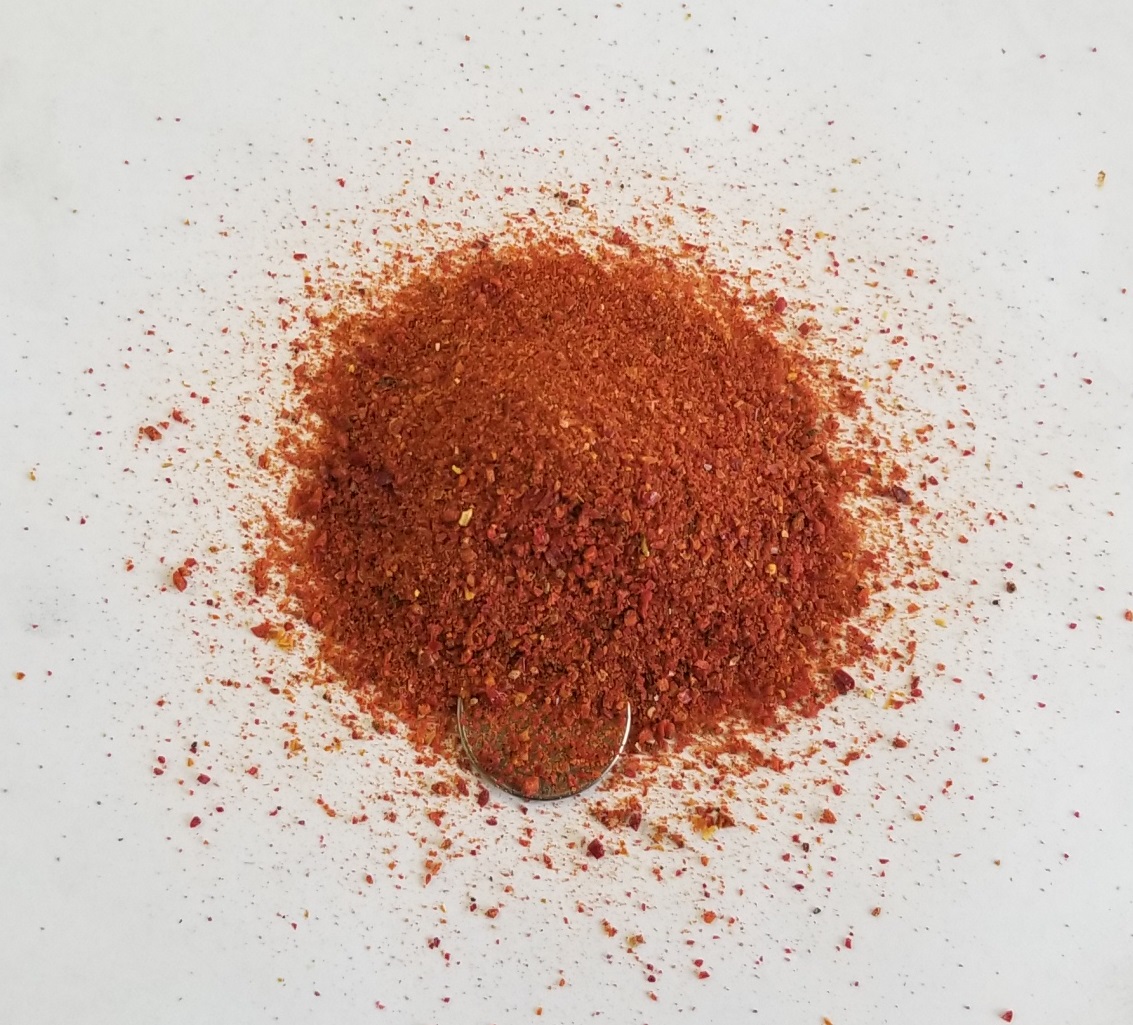

Green Bell Pepper	Green Bell Pepper	Red Bell Pepper	Red Bell Pepper

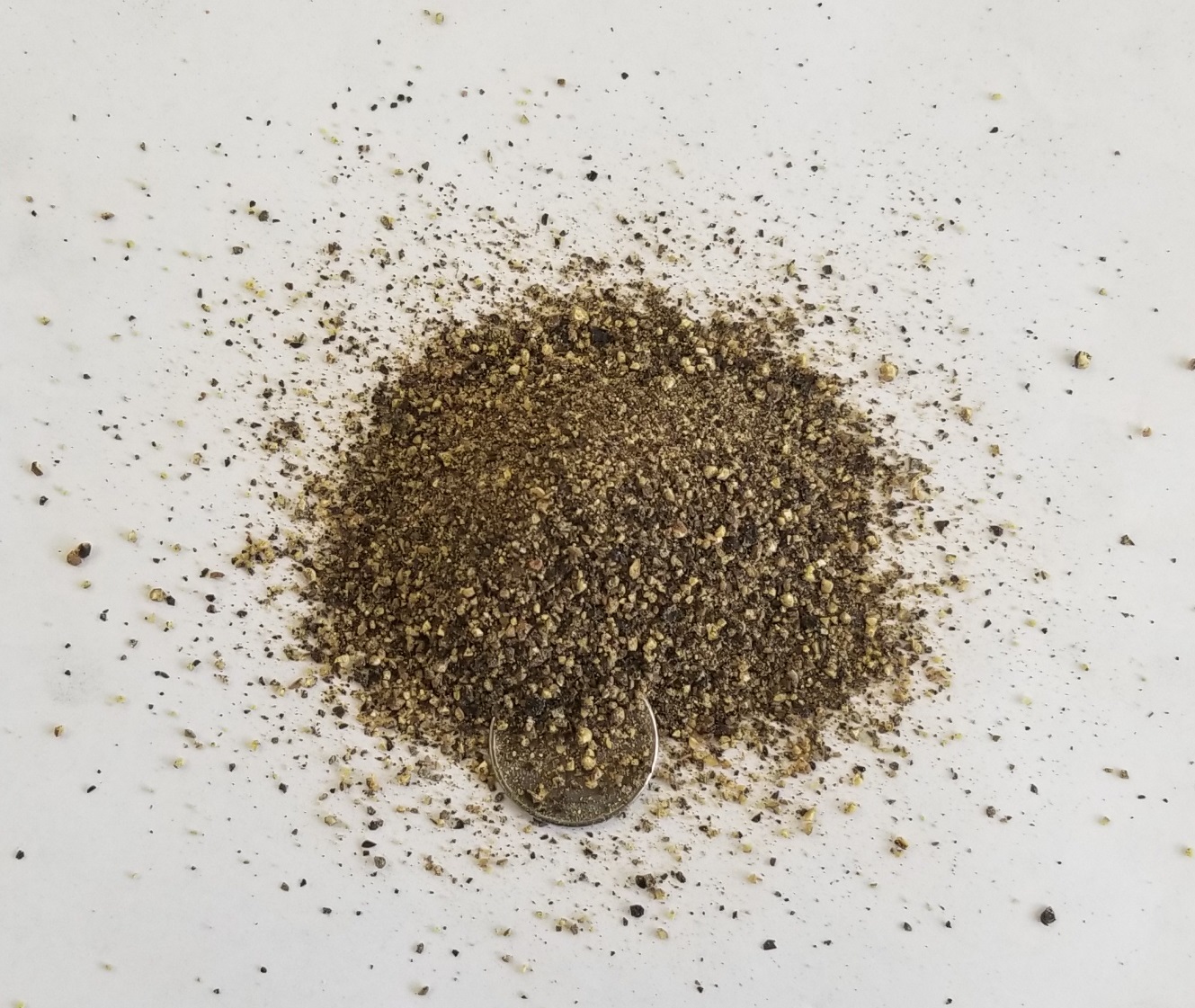

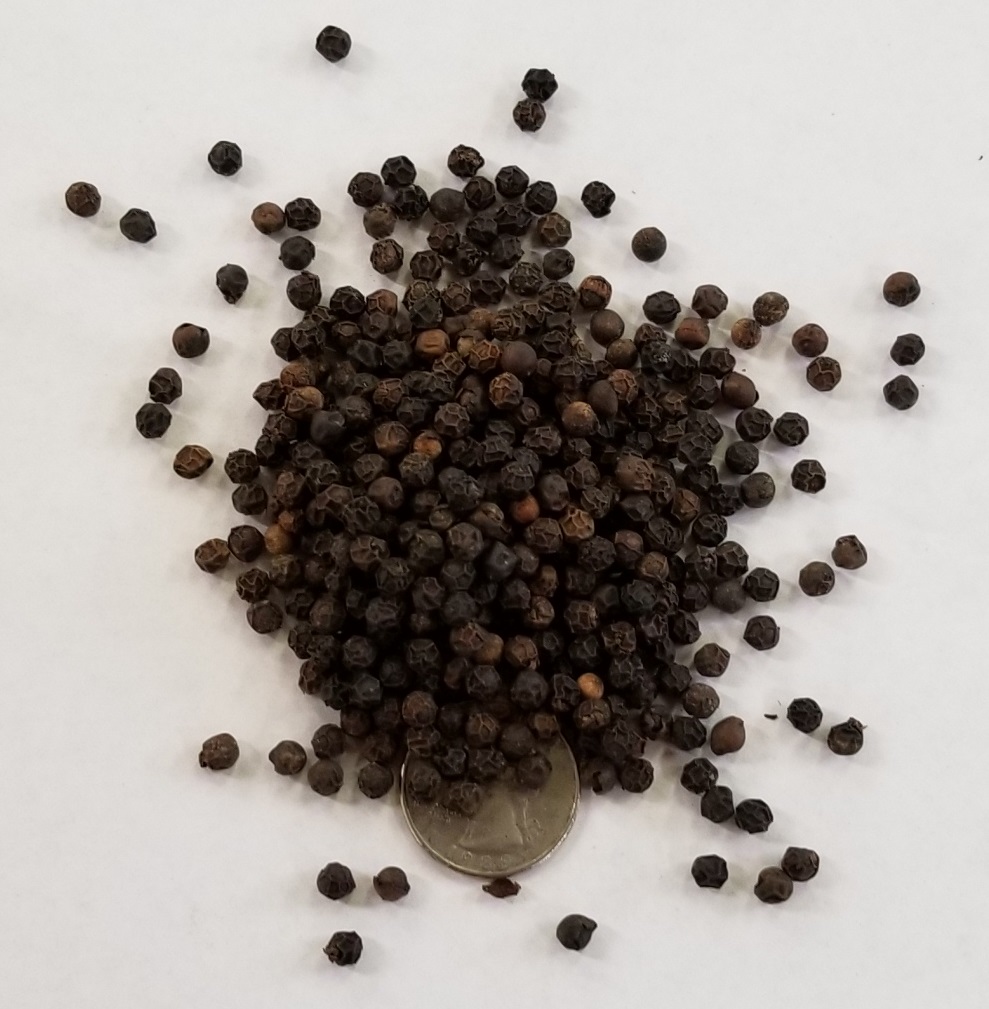

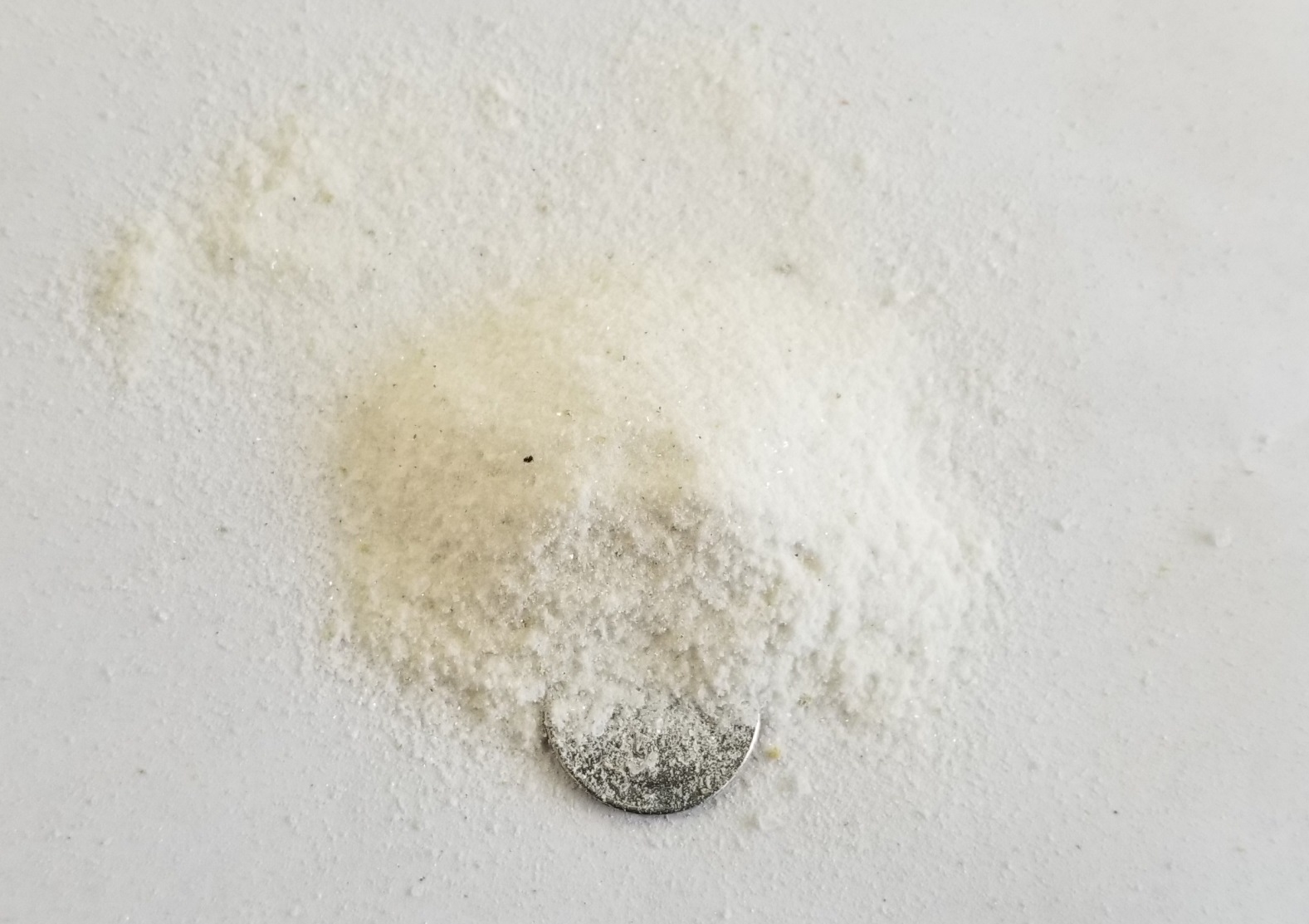

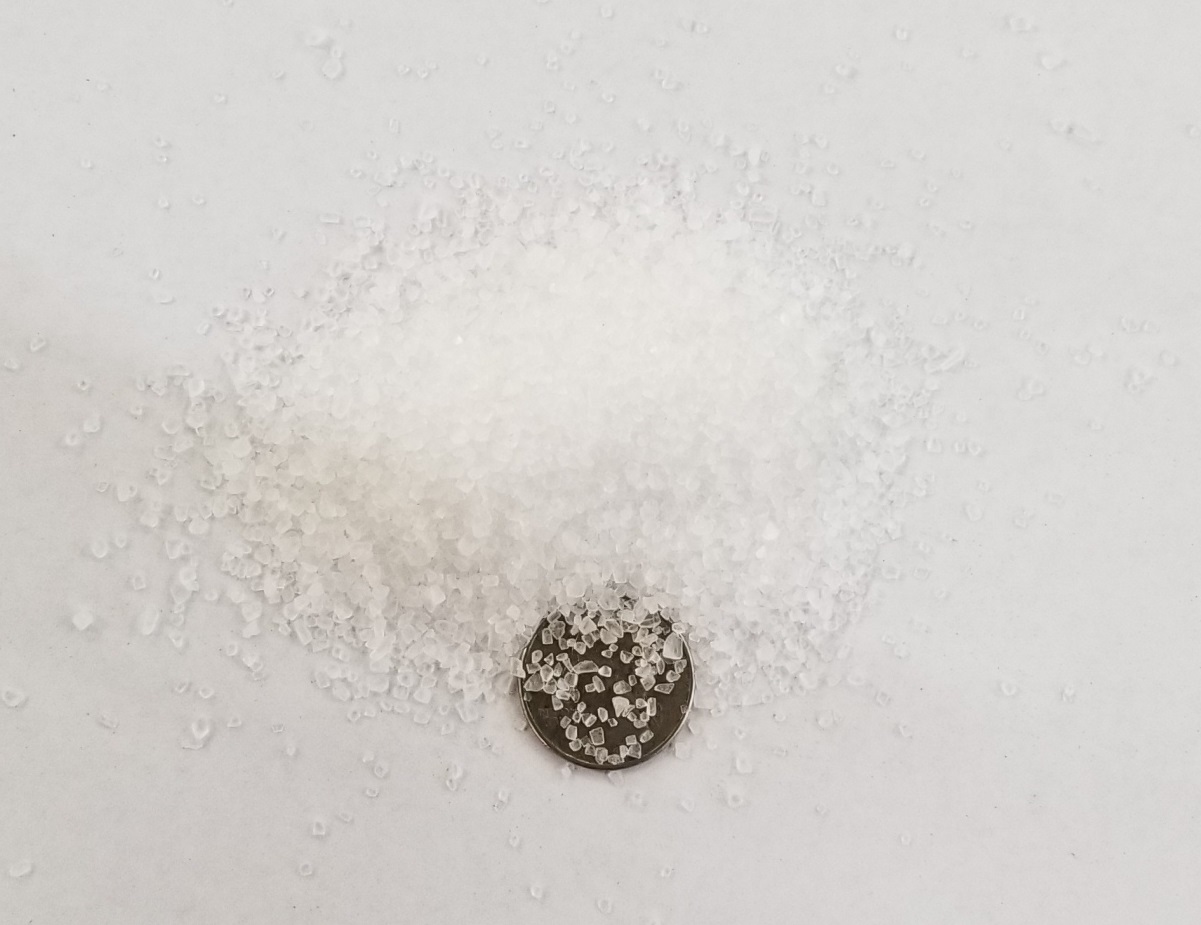

Black Pepper Corn	Black Pepper Corn	Sea Salt	Sea Salt

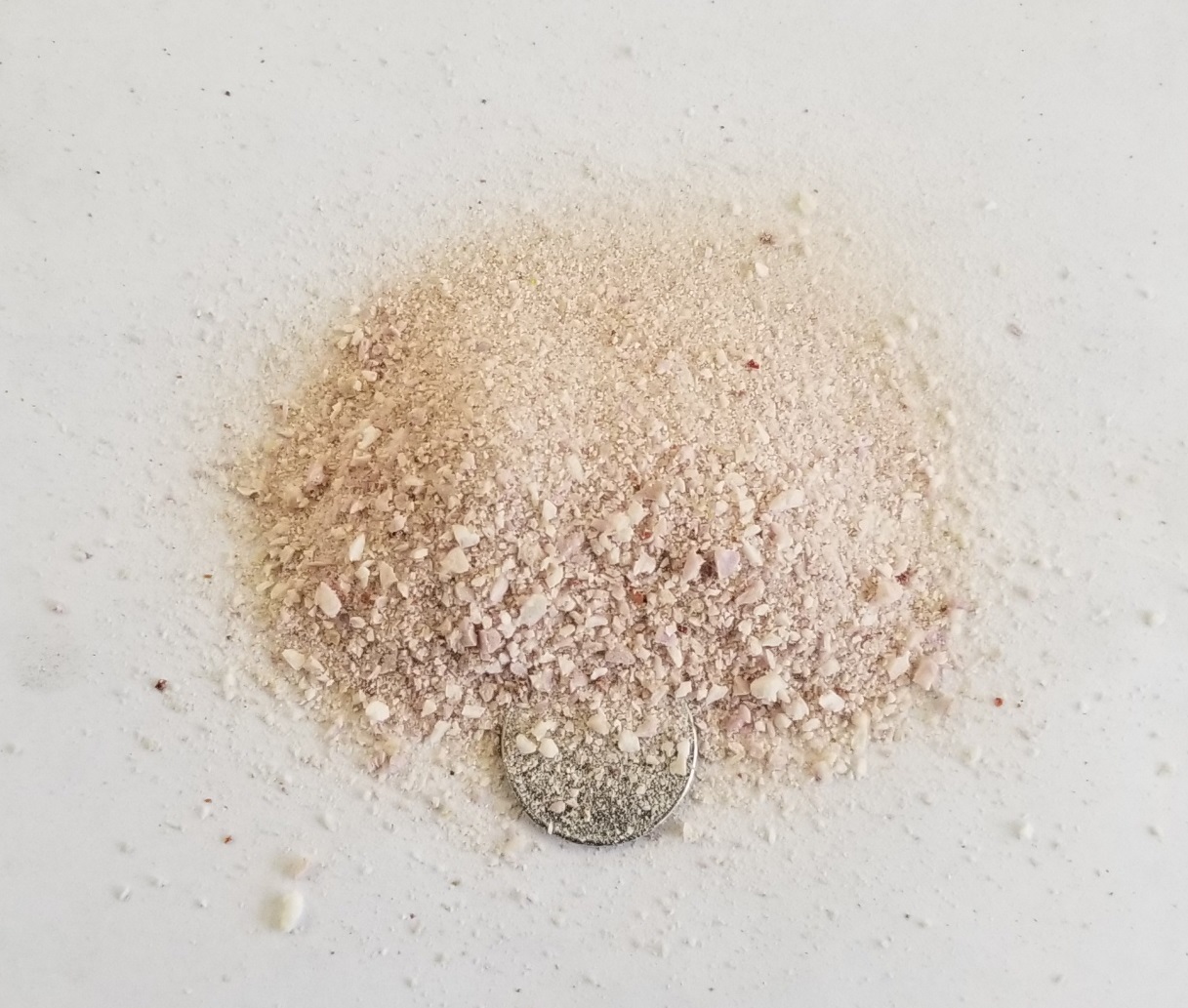

Minced Onion	Minced Onion	Chopped Shallots	Chopped Shallots

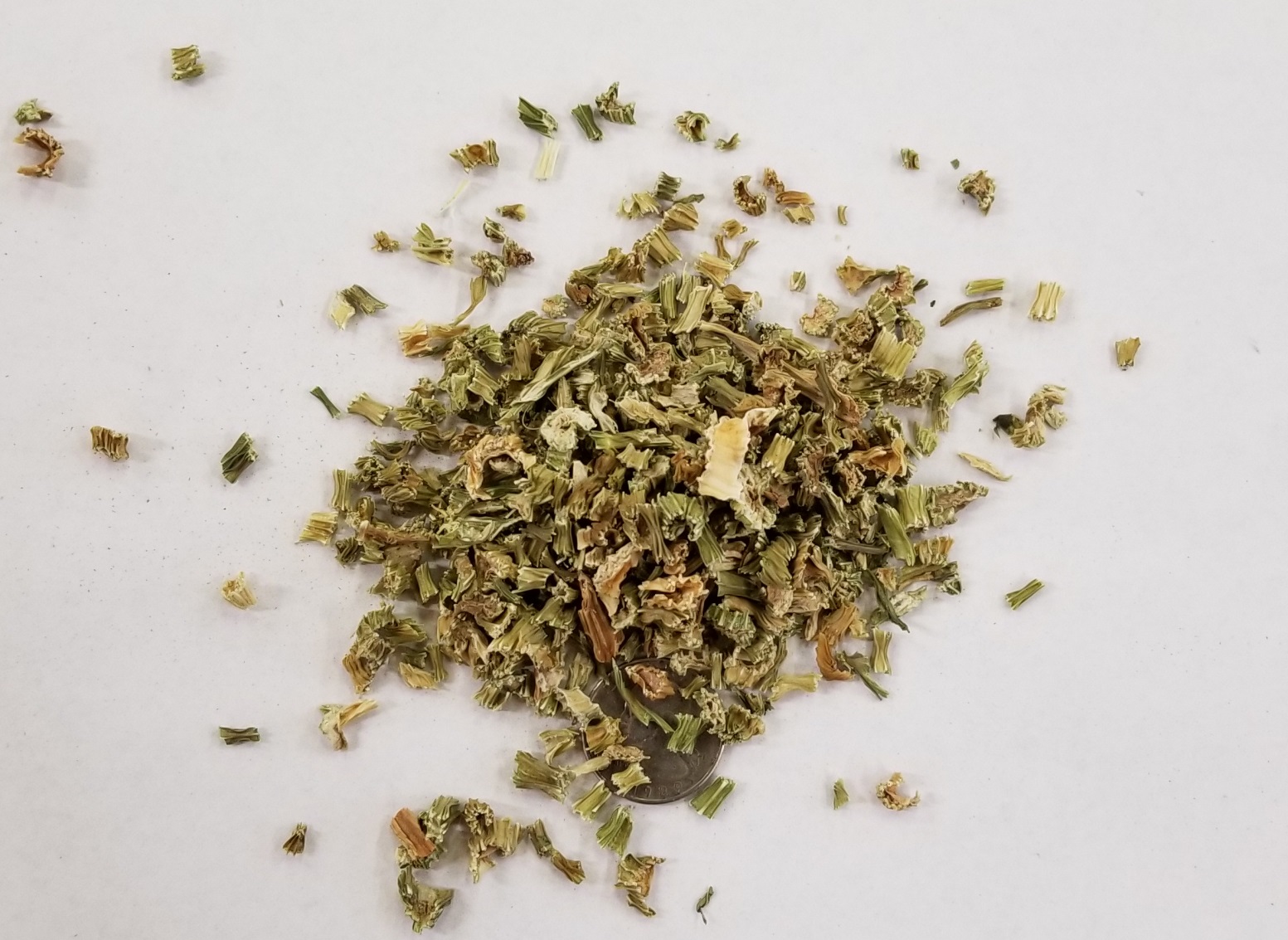

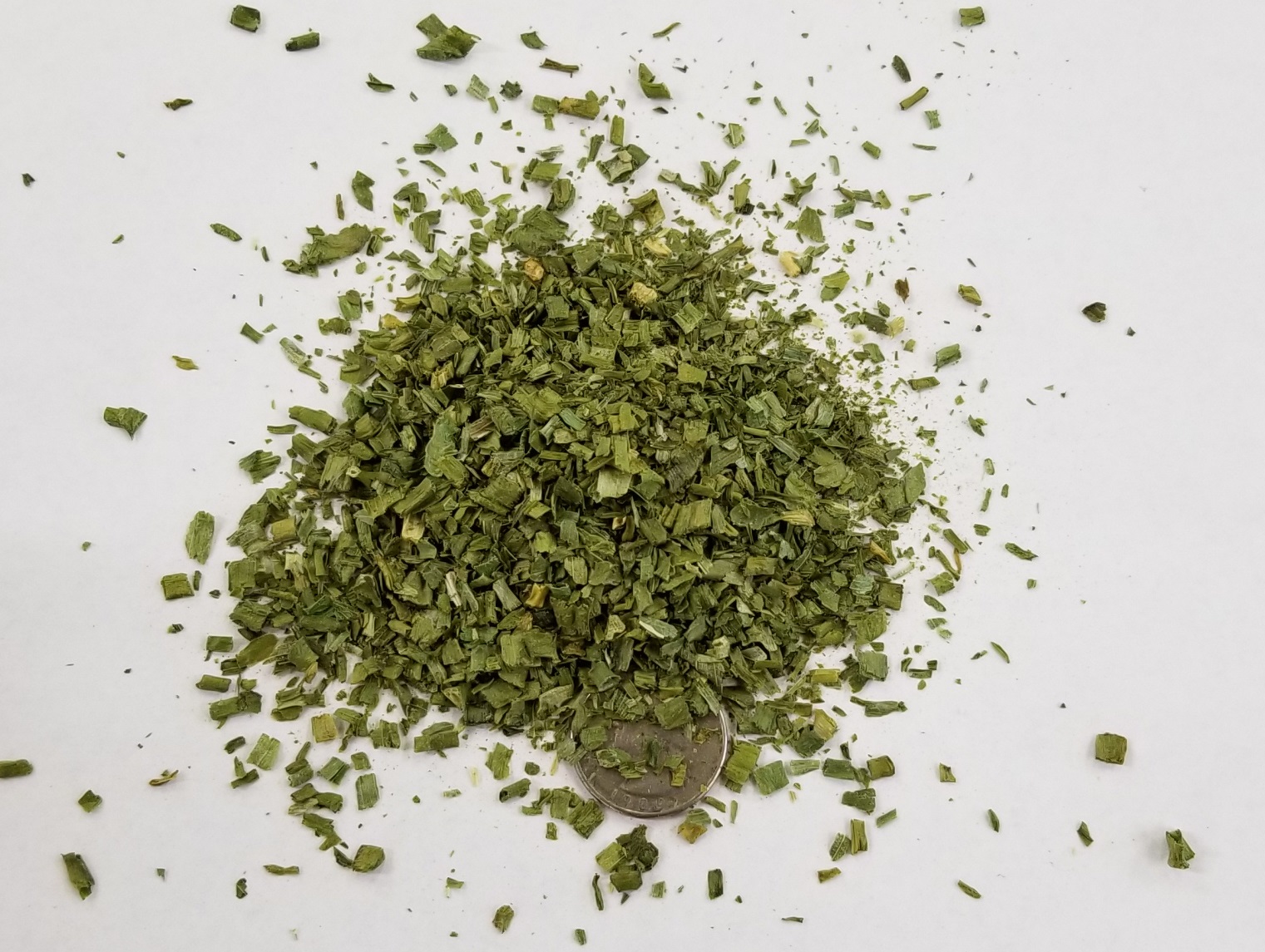

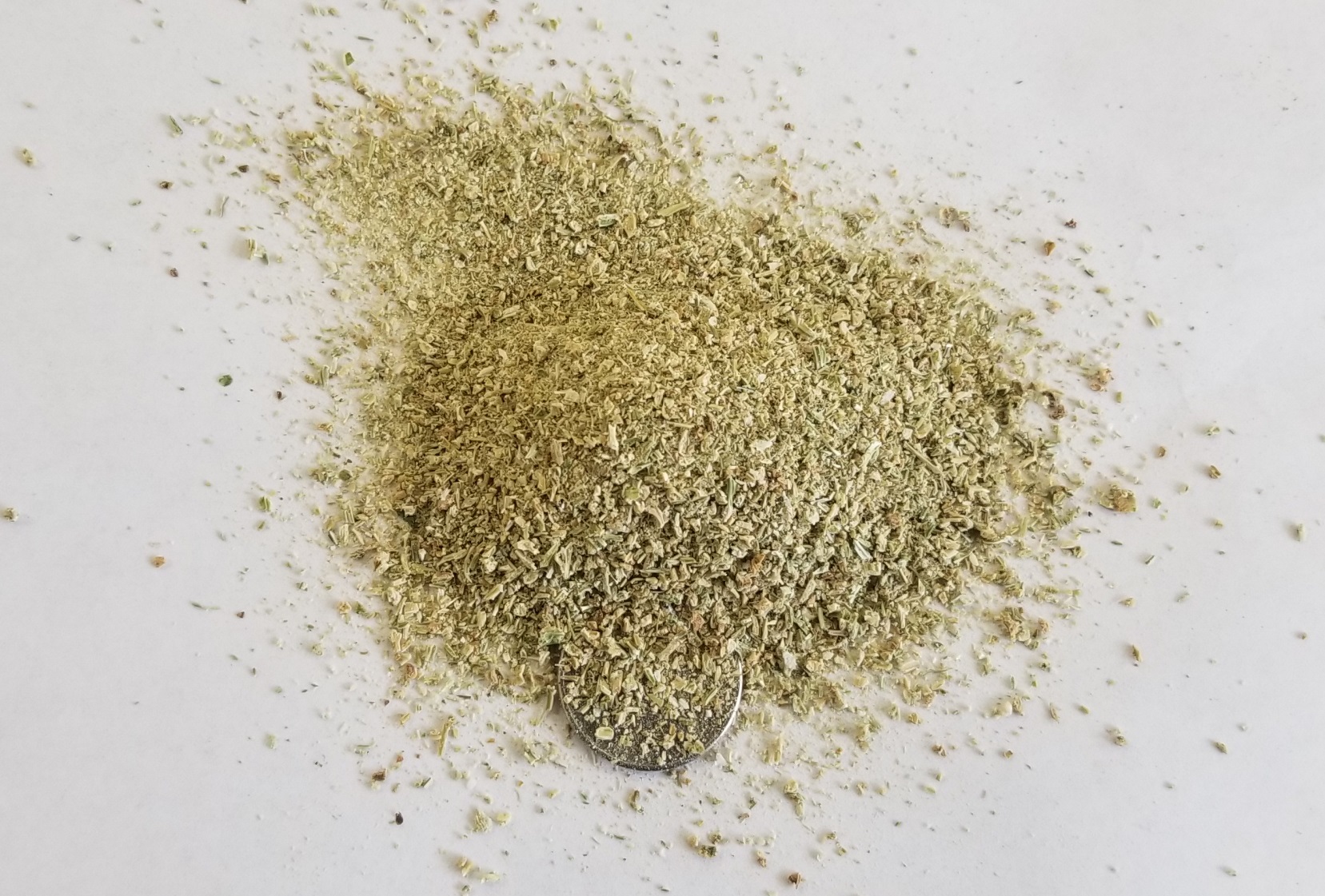

Chives	Chives	Flake Celery	Flake Celery
Mushrooms	Mushrooms	Sun Dried Tomatoes	Sun Dried Tomatoes

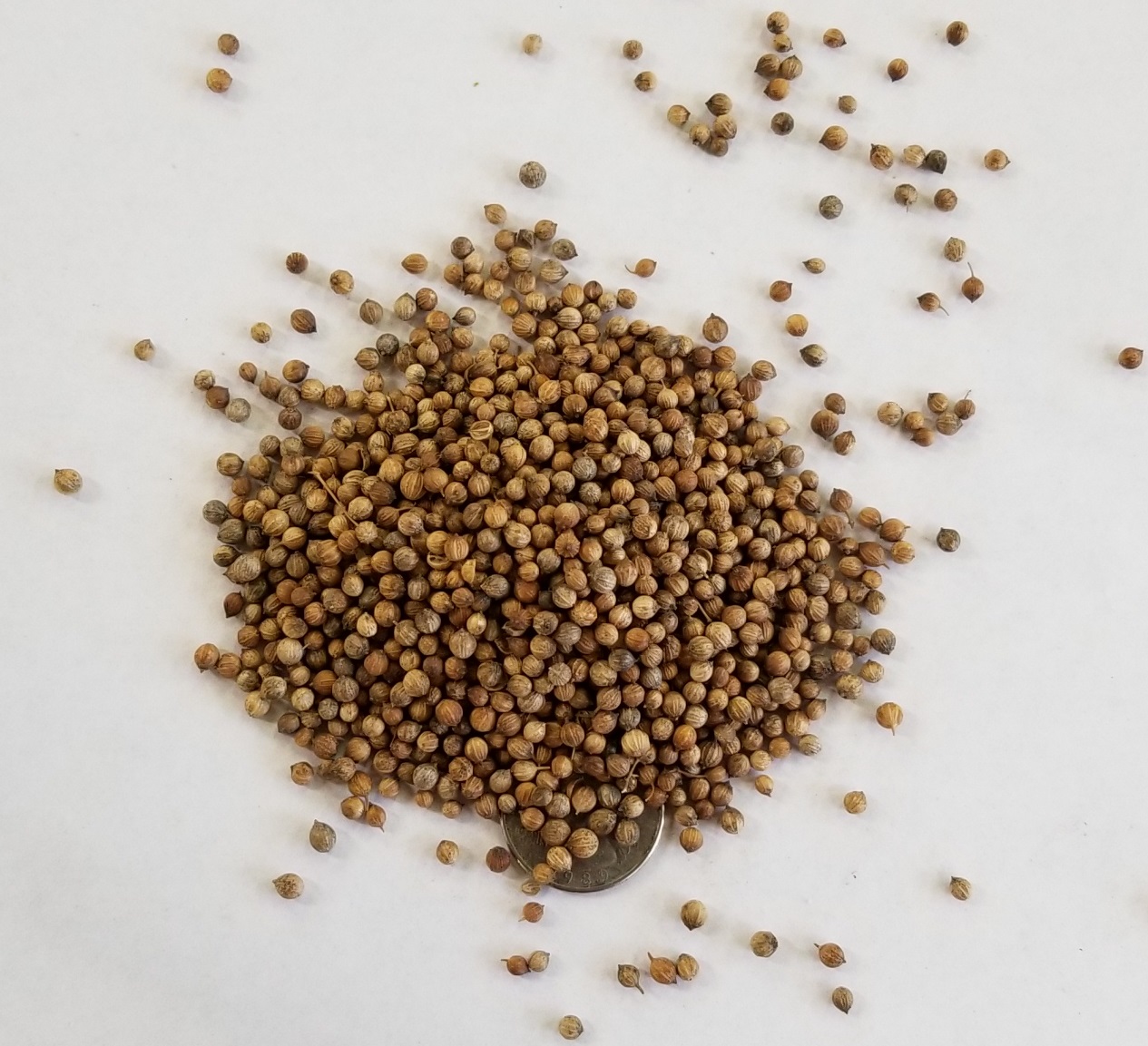

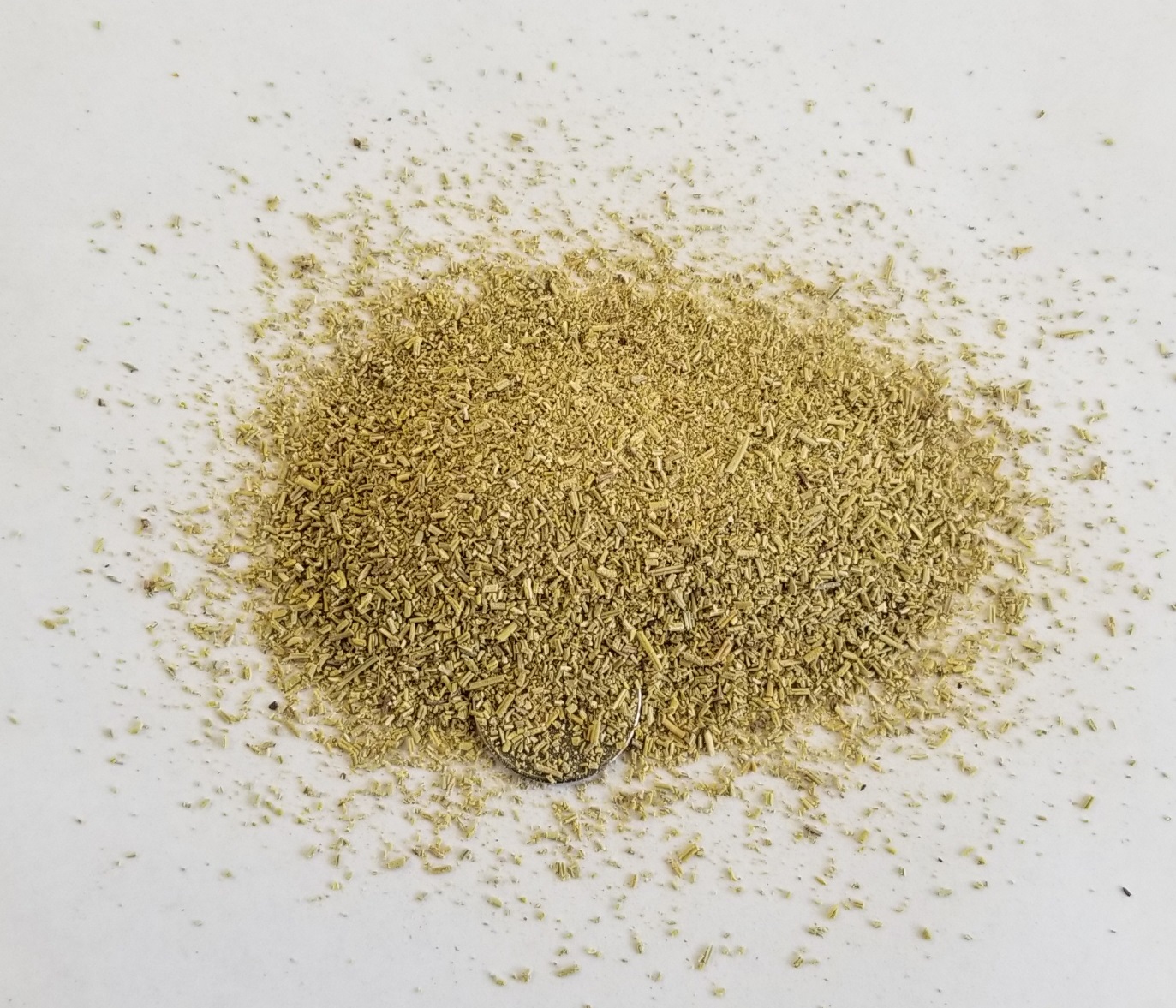

Rosemary	Rosemary	Coriander	Coriander

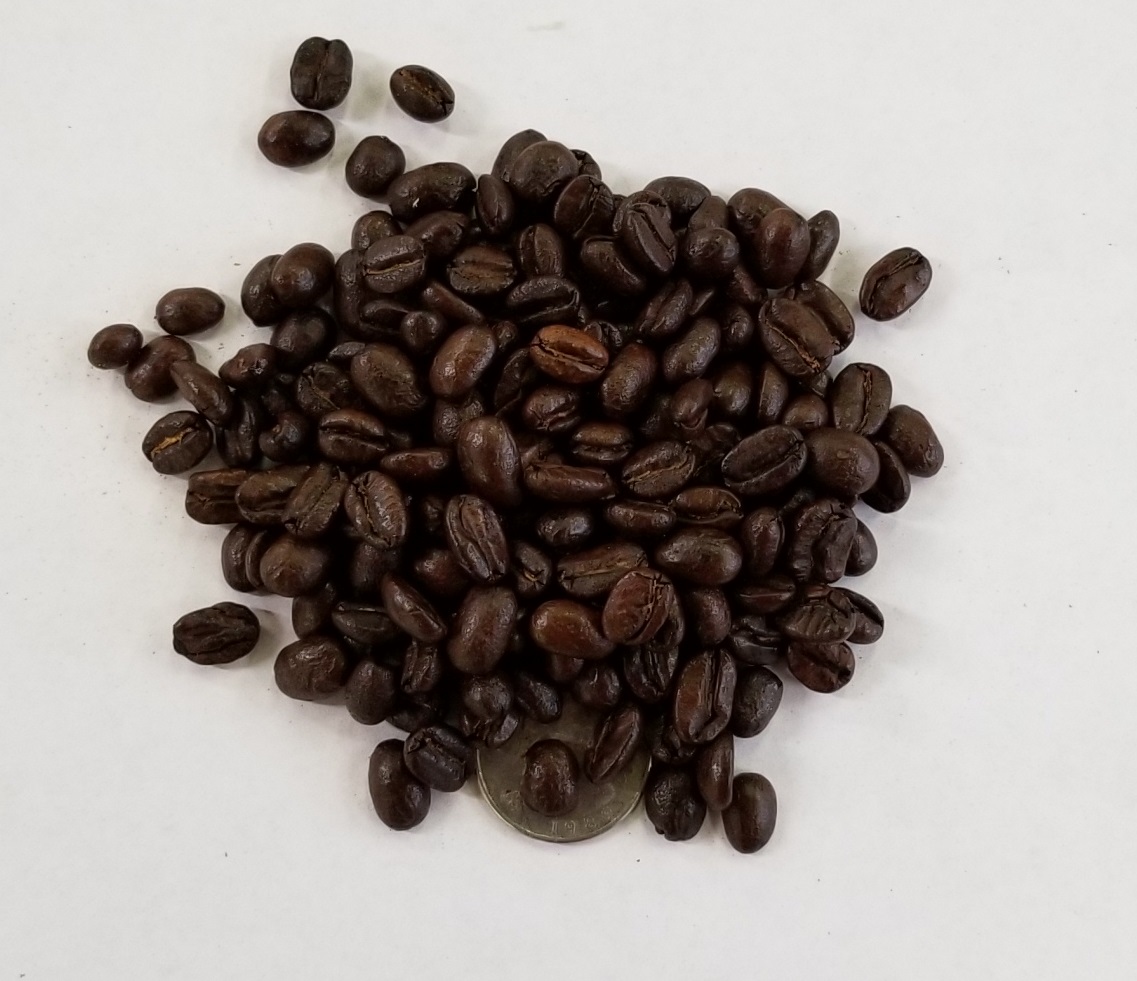

	Espresso Beans	Espresso Beans
Click here for a video of the Red Bell Pepper sample through a 3mm screen. Click here for a video of the Bird's Eye Chili sample through a 3mm screen. Click here for a video of the Black Pepper Corn sample through a 3mm screen. Click here for a video of the Sea Salt sample through a 3mm screen. Click here for a video of the Chives sample through a 3mm screen. Click here for a video of the Celery sample through a 3mm screen. Click here for a video of the Coriander sample through a 3mm screen. Click here for a video of the Espresso Beans sample through a 3mm screen. Click here for a video of the Mushroom sample through a 3mm screen. Click here for a video of the Onions sample through a 3mm screen. Click here for a video of the Rosemary sample through a 3mm screen. Click here for a video of the Sun Dried Tomato sample through a 3mm screen.

---

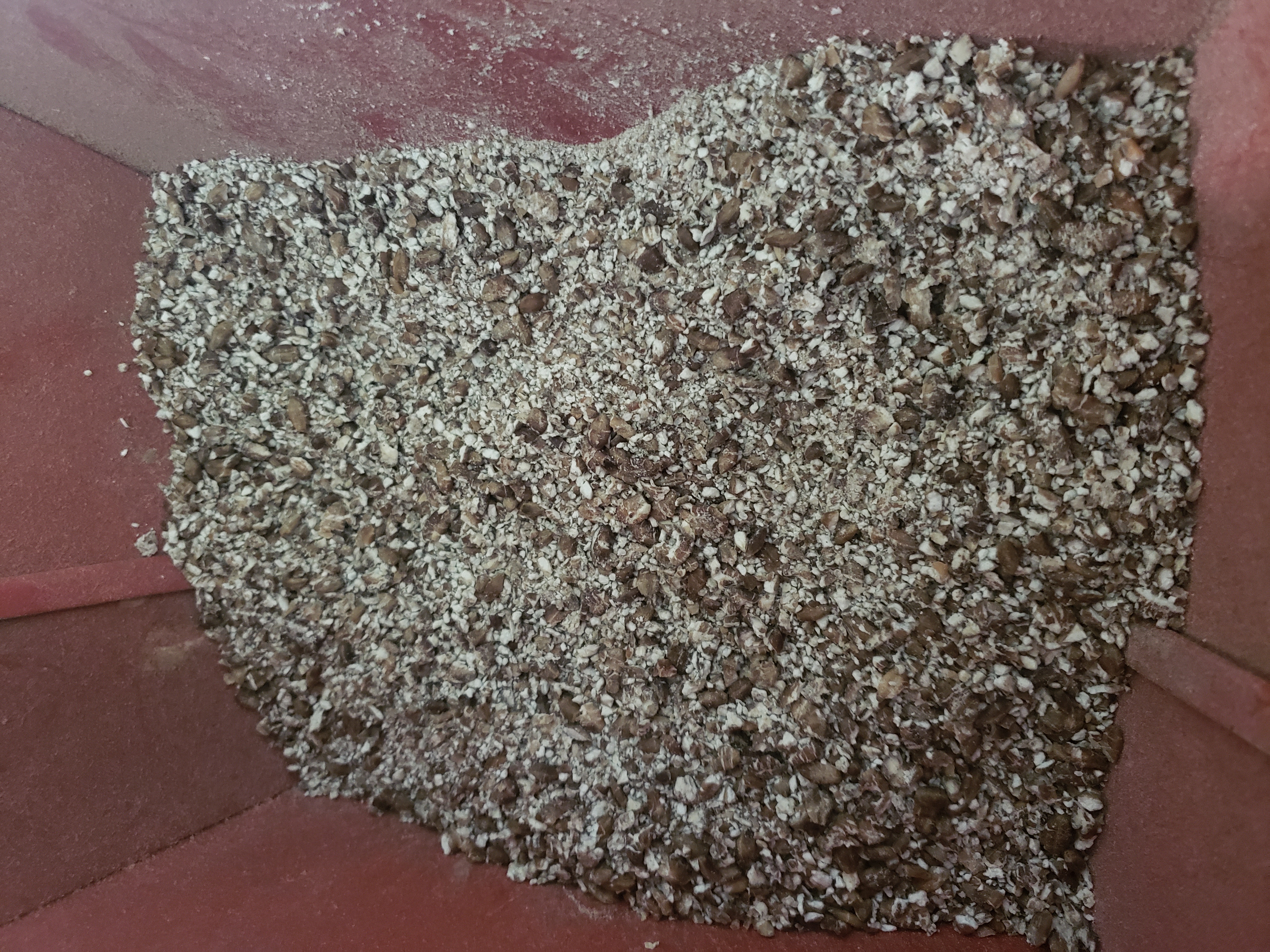

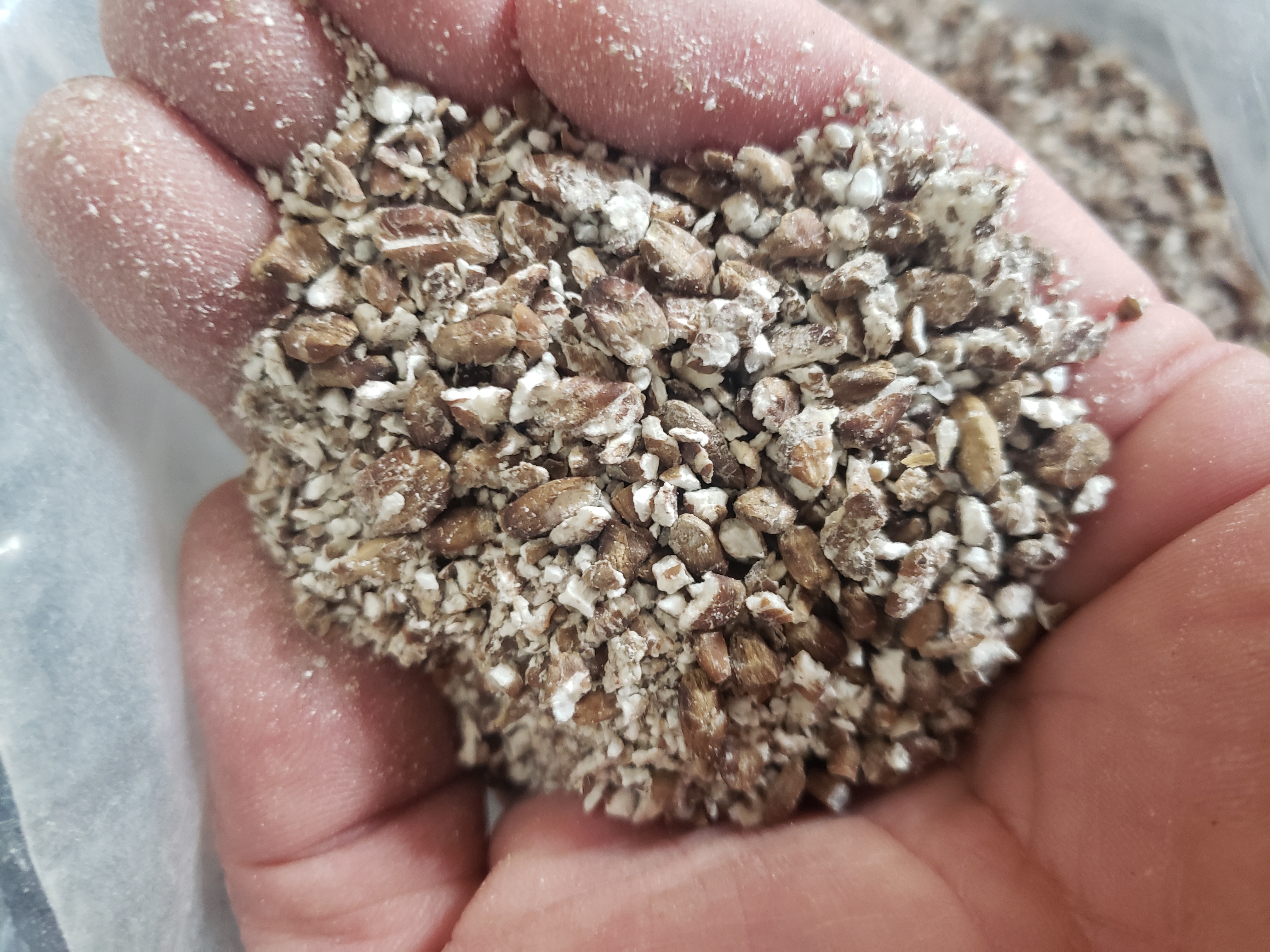

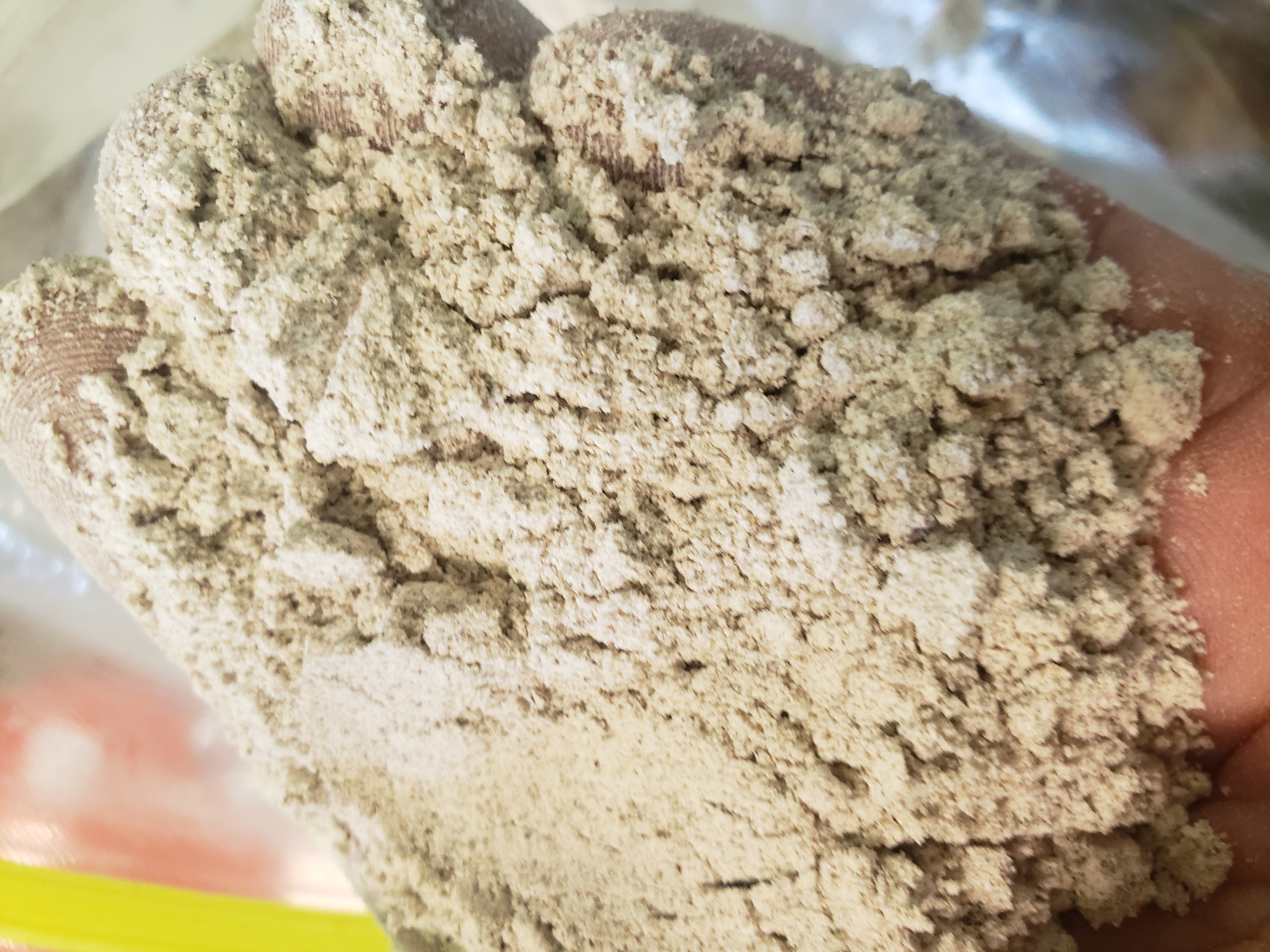

Barley run through the Model 230 Fine Grinder with a 0.4mm screen. (BarleyGrinder)

Barley - Before Barley - Before	Barley - Before Barley - Before	Barley - 0.4mm Screen Barley - 0.4mm Screen	Barley - 0.4mm Screen Barley - 0.4mm Screen
Click here for a video of the Barley run through a 0.4mm screen. Click here for another video of the Barley run through a 0.4mm screen. * We were able to run 3 pounds through the Model 230 Fine Grinder with a 0.4mm Screen in about 5-6 minutes and probably could have feed the machine faster.

---

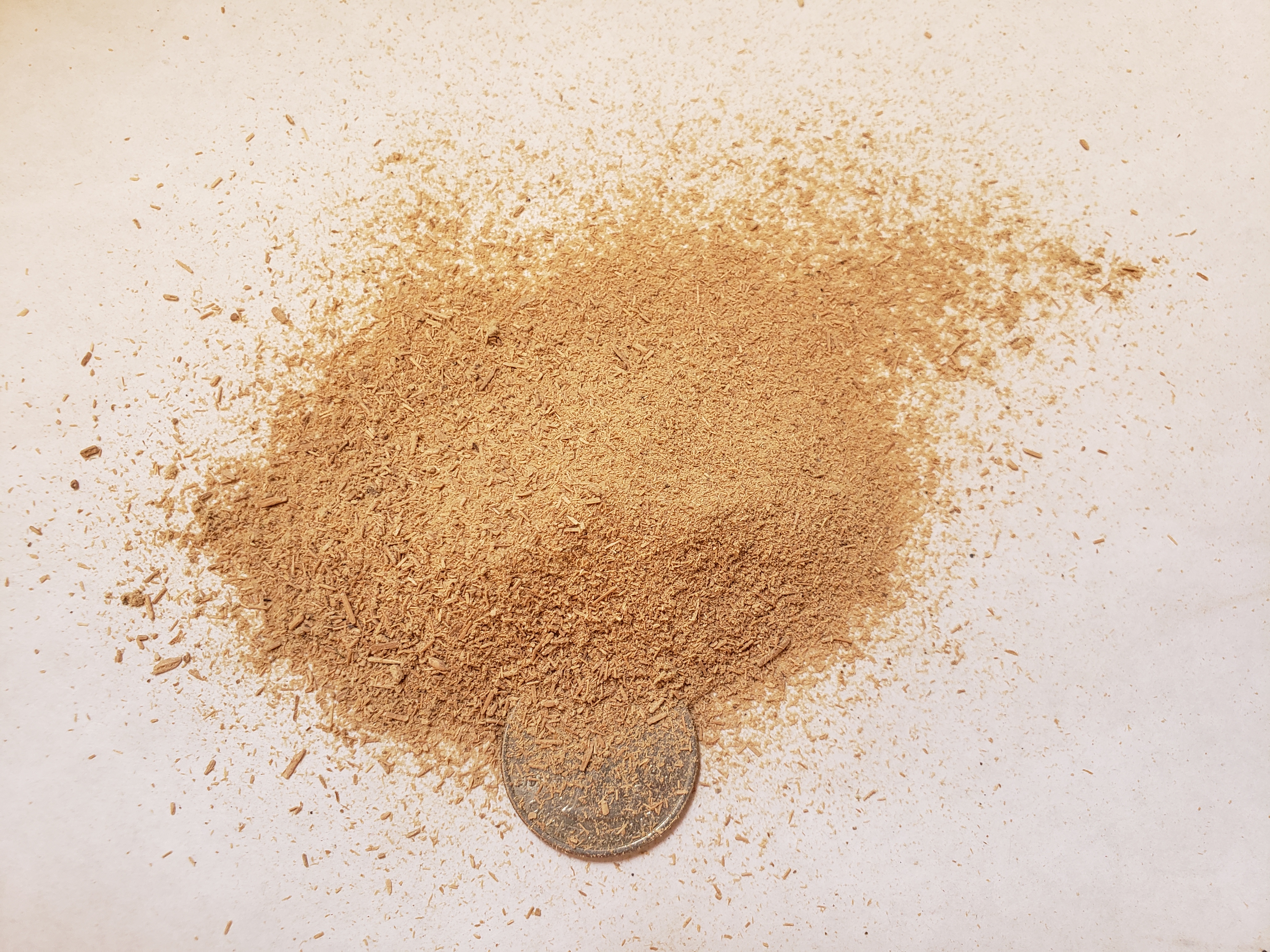

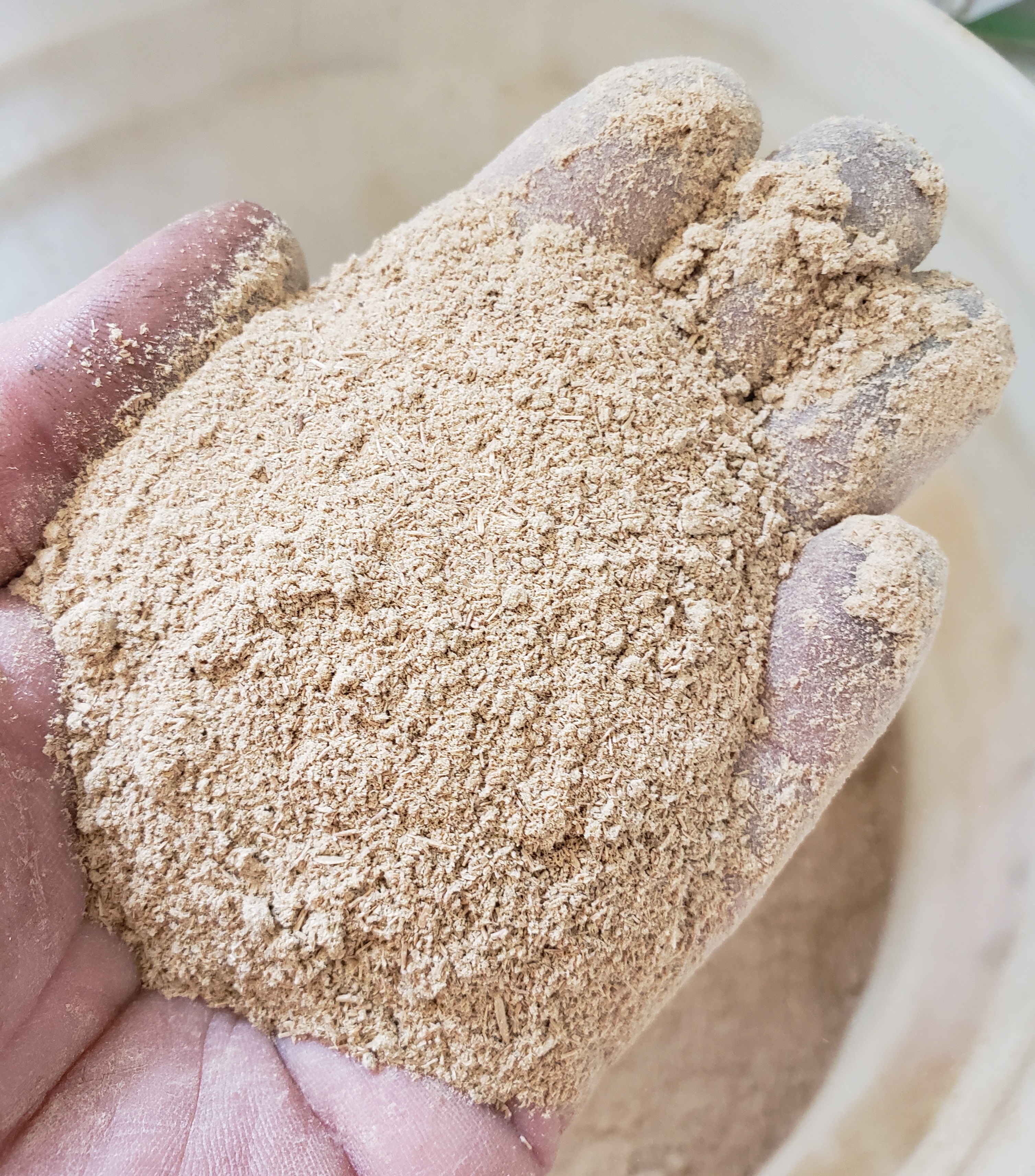

Oak chips run through the Model 230 Fine Grinder with a 0.8mm screen. (OPGrinder)

The Oak chips were chunks run through a hammer mill with a 2mm screen.

Oak chips - Before	Oak chips - Before	Oak chips - 0.8mm Screen	Oak chips - 0.8mm Screen
Click here for a video of the Oak chips run through a 0.8mm screen. Click here for another video of the Oak chips run through a 0.8mm screen. * We were able to run 2 pounds through the Model 230 Fine Grinder with a 0.8mm Screen in about 5-6 minutes.

---

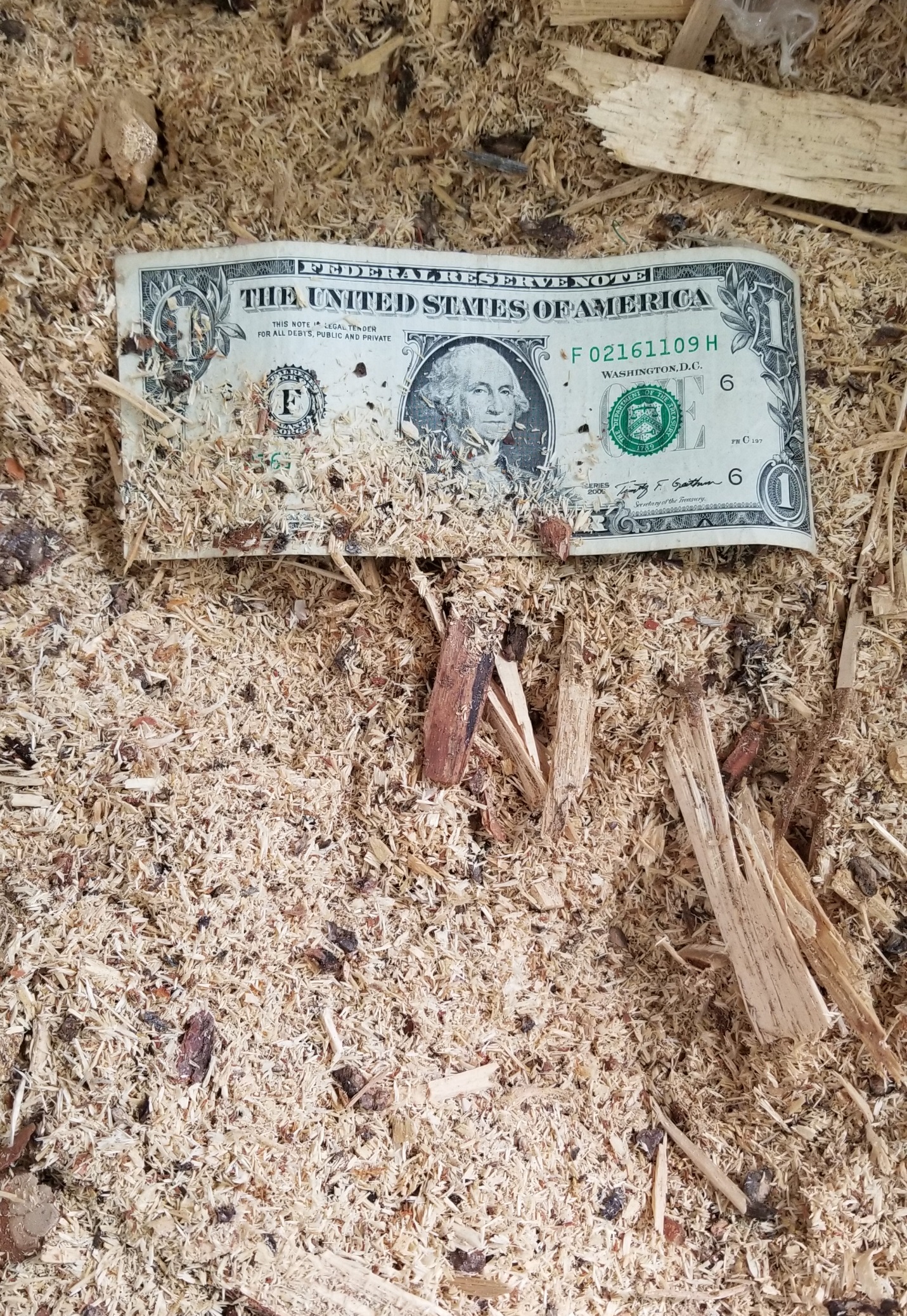

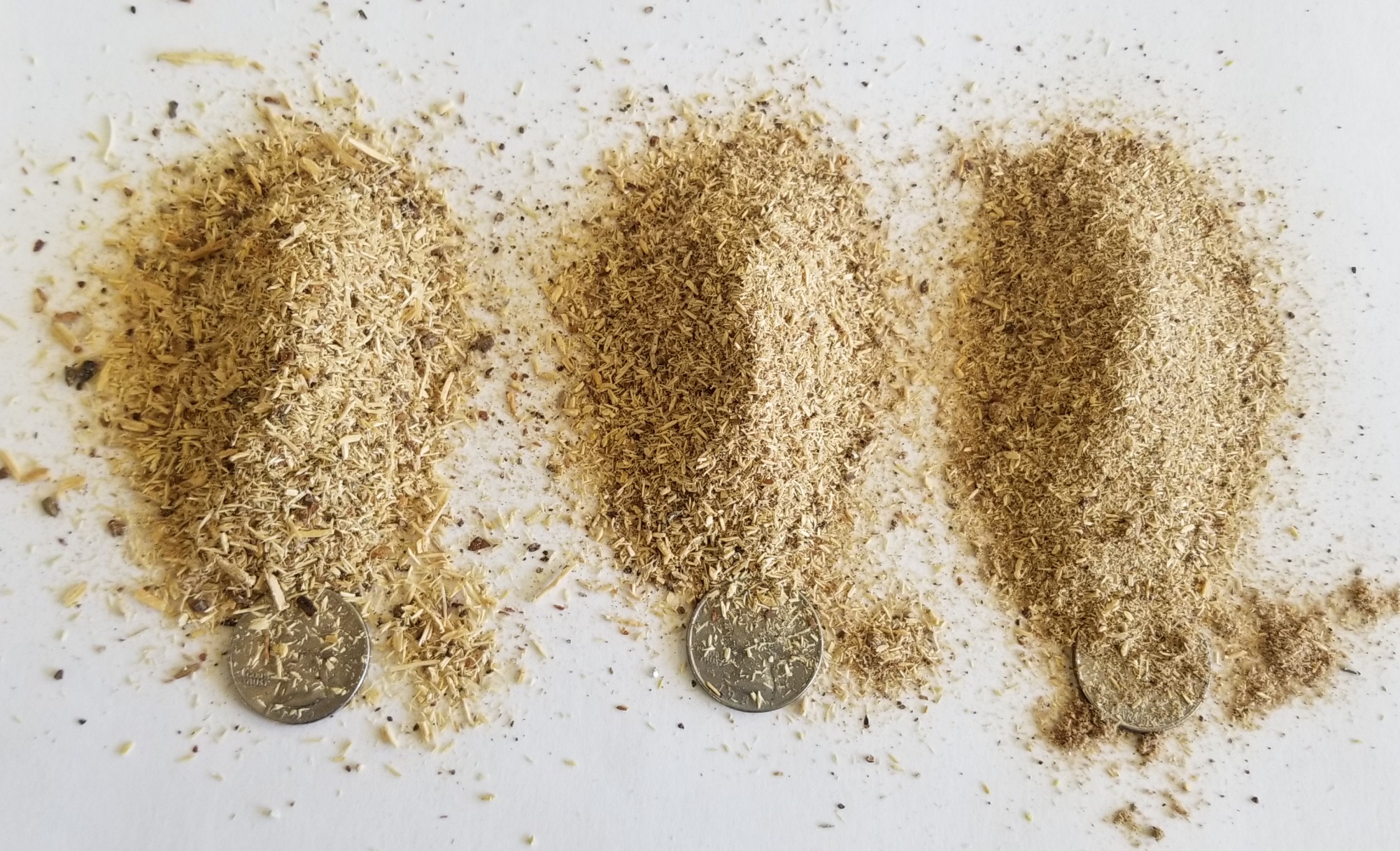

Wood chunks and wood fines run through the Model 230 Fine Grinder with a 0.4mm screen. (woodpiecesG)

The wood fines were chunks run through a hammer mill with 2mm and 6mm screens.

Wood Chunks	Hammer Mill 2mm Screen	Fine Grinder 0.4mm Screen	Screens Compared
Click here for a video of the wood chunks run through a 0.4mm screen. Click here for a video of the wood chunks run through a 0.4mm screen. Click here for a video of the wood chunks run through a 0.4mm screen. Click here for a video of the wood fines (2mm) run through a 0.4mm screen. Click here for a video of the wood fines (2mm) run through a 0.4mm screen. Click here for a video of the wood fines (6mm) run through a 0.4mm screen. Click here for a video of the wood fines (6mm) run through a 0.4mm screen. It took around 2-3 minutes to run a ½ pound scoop of chunks through the 0.4mm screen. It took about 45 seconds to run a ½ pound scoop of the 2mm hammer milled material through the 0.4mm screen and around 60 seconds to run a ½ pound scoop of the 6mm hammer milled material through the 0.4mm screen. We first ran this material through our Model 198 5.3hp 220v Single Phase Hammer Mill. We then ran this material through our 9" 2-Roller 10hp 220v Three Phase Pellet Mill.

---

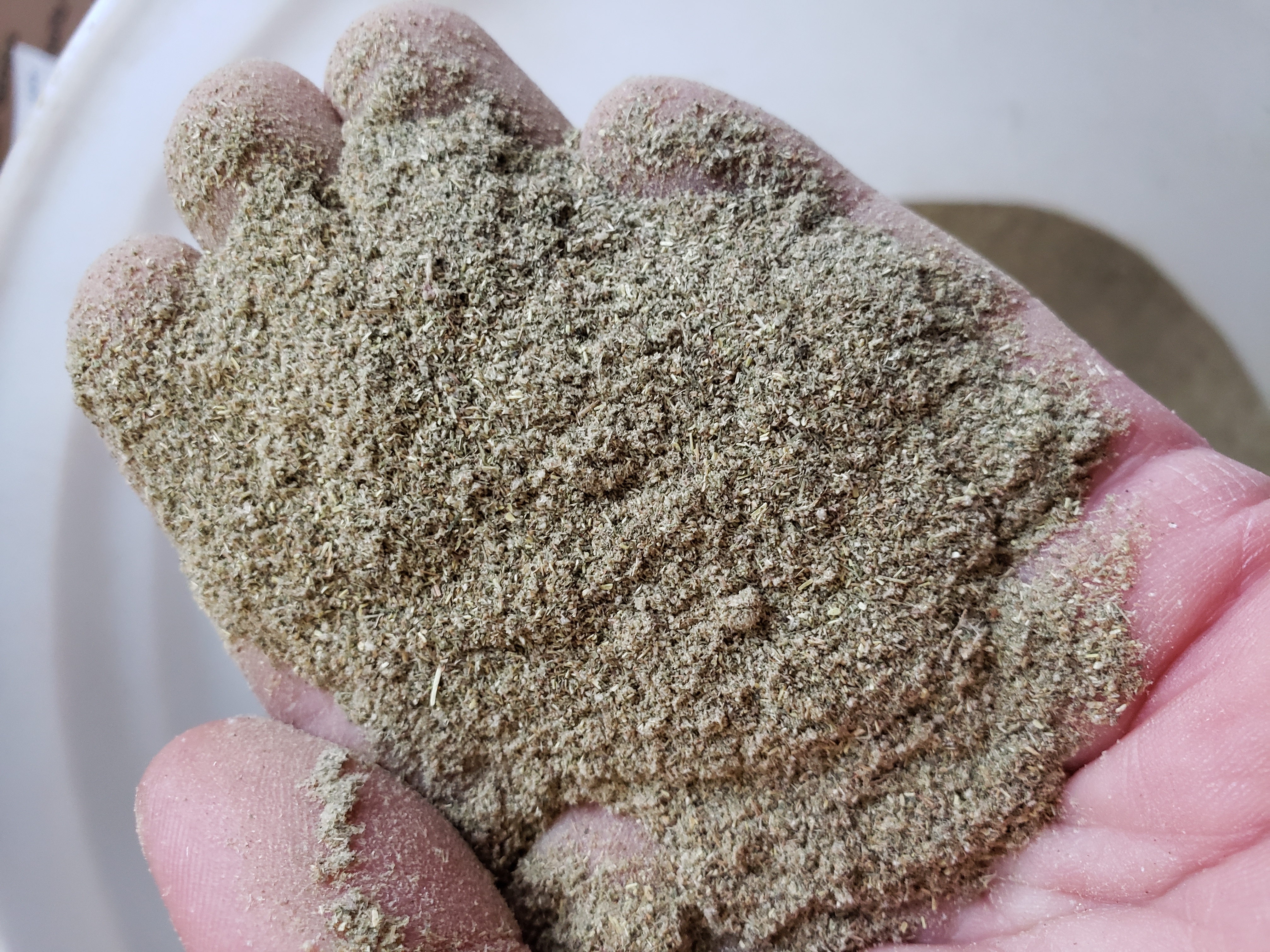

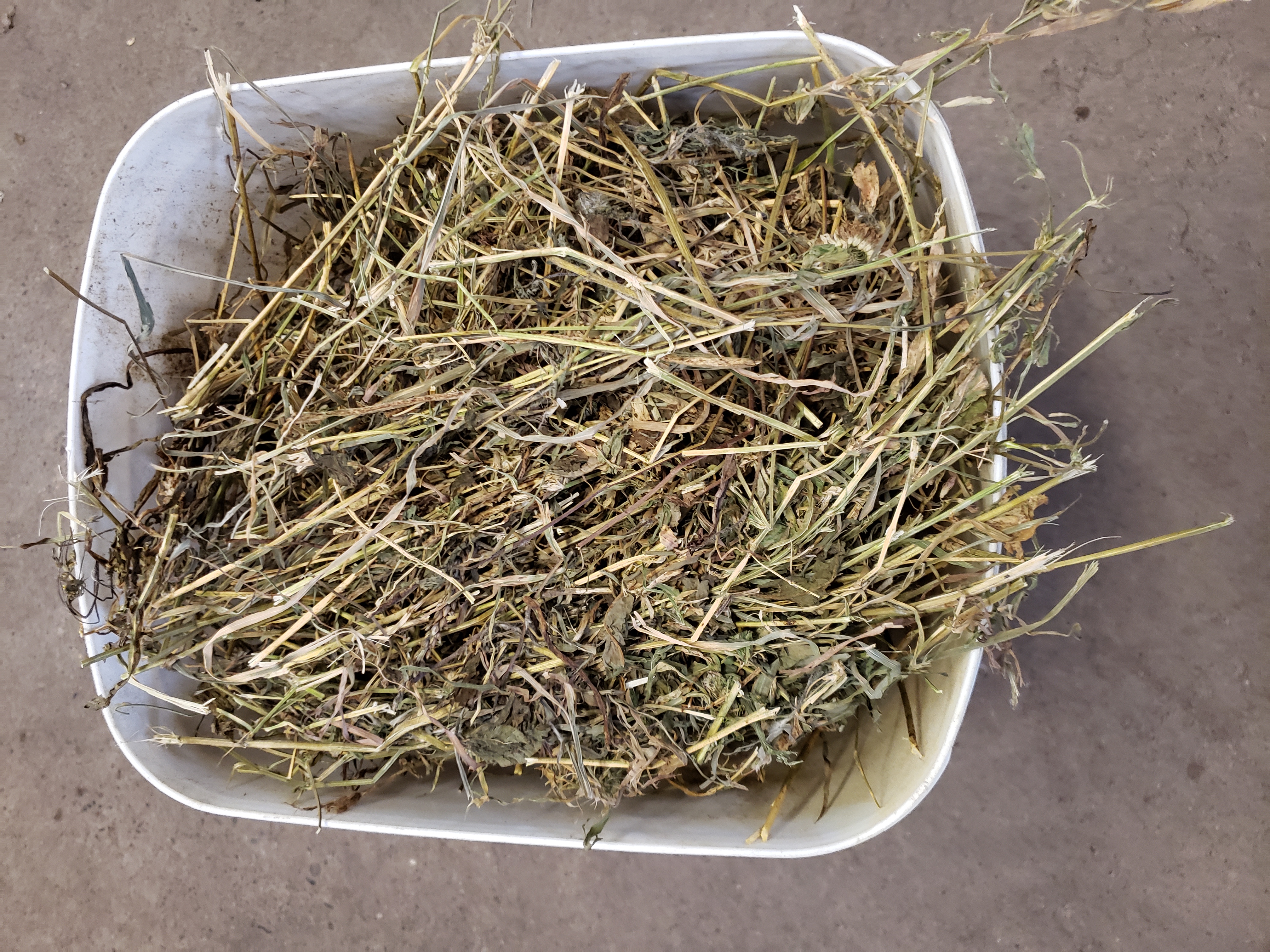

Alfalfa hay run through the Model 230 Fine Grinder with 0.4mm screen. (#Alfalfa230)

Alfalfa Hay - Before	Alfalfa Hay - Before	Alfalfa Hay - 0.4mm	Alfalfa Hay - 0.4mm
Click here for a video of alfalfa hay through a 0.4mm screen. We first ran this material through our Model 198 5.3hp 220v Single Phase Hammer Mill.

---

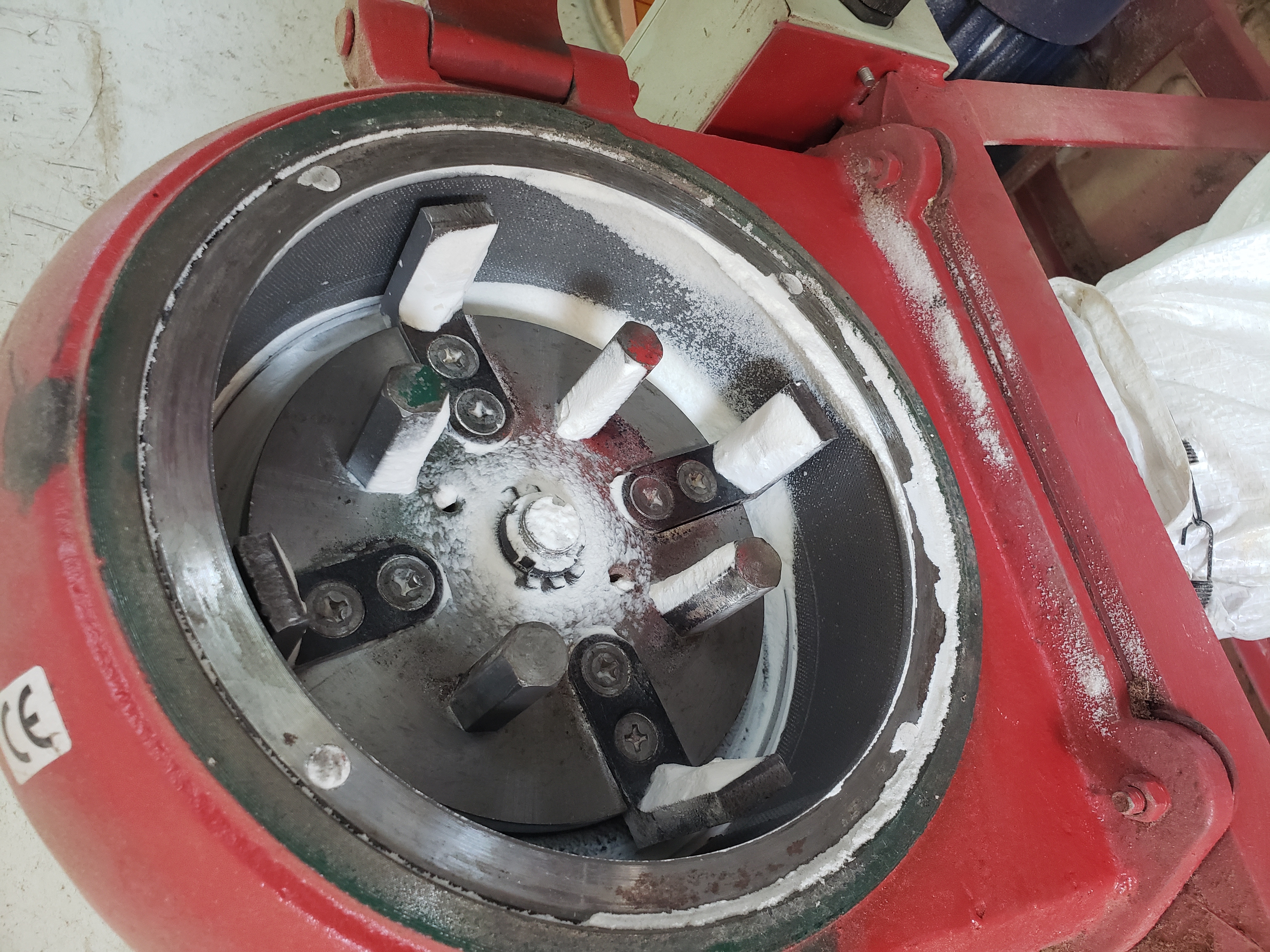

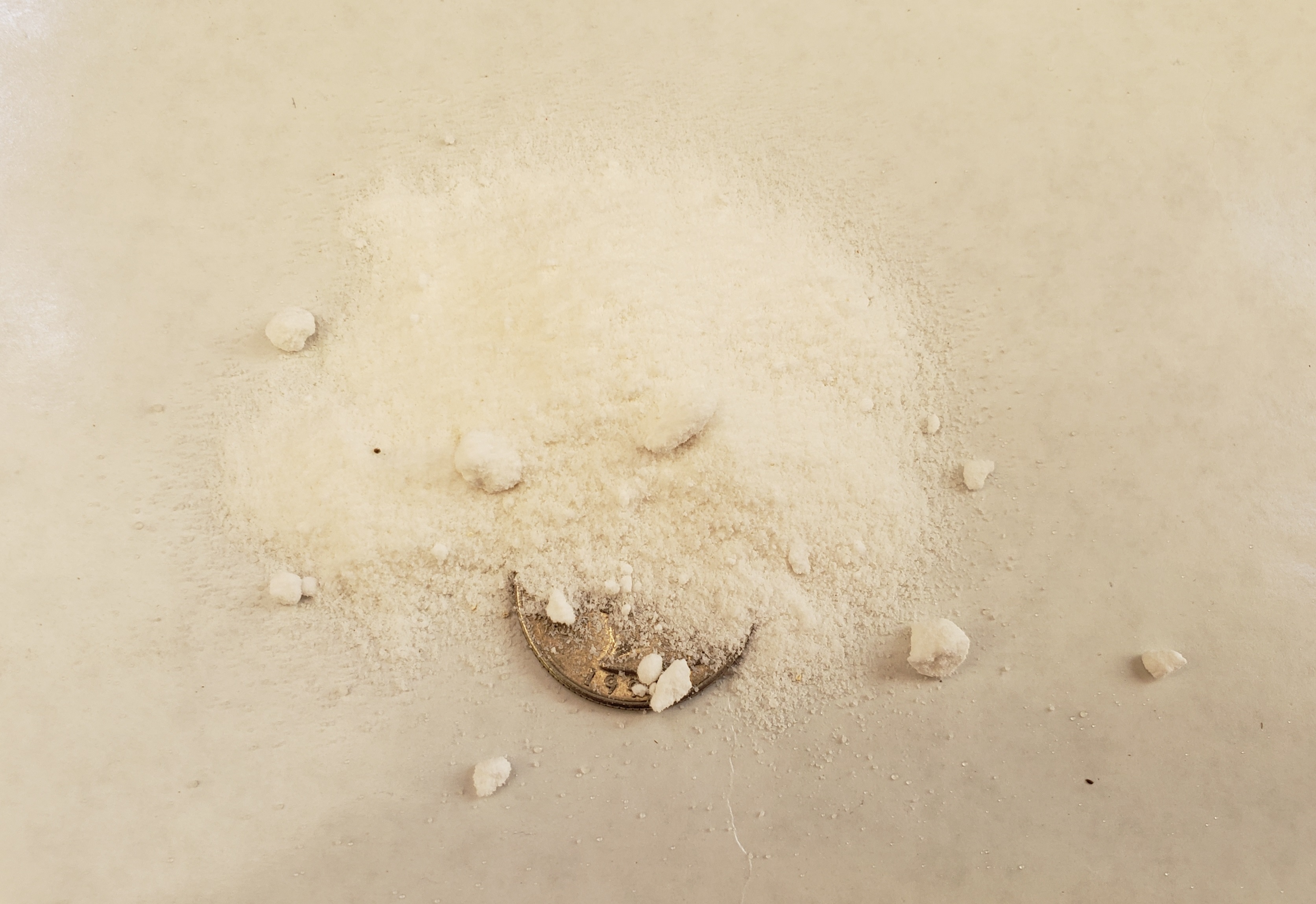

Magnesium Chloride run through the Model 230 Fine Grinder with 0.4mm screen. (#MC230)

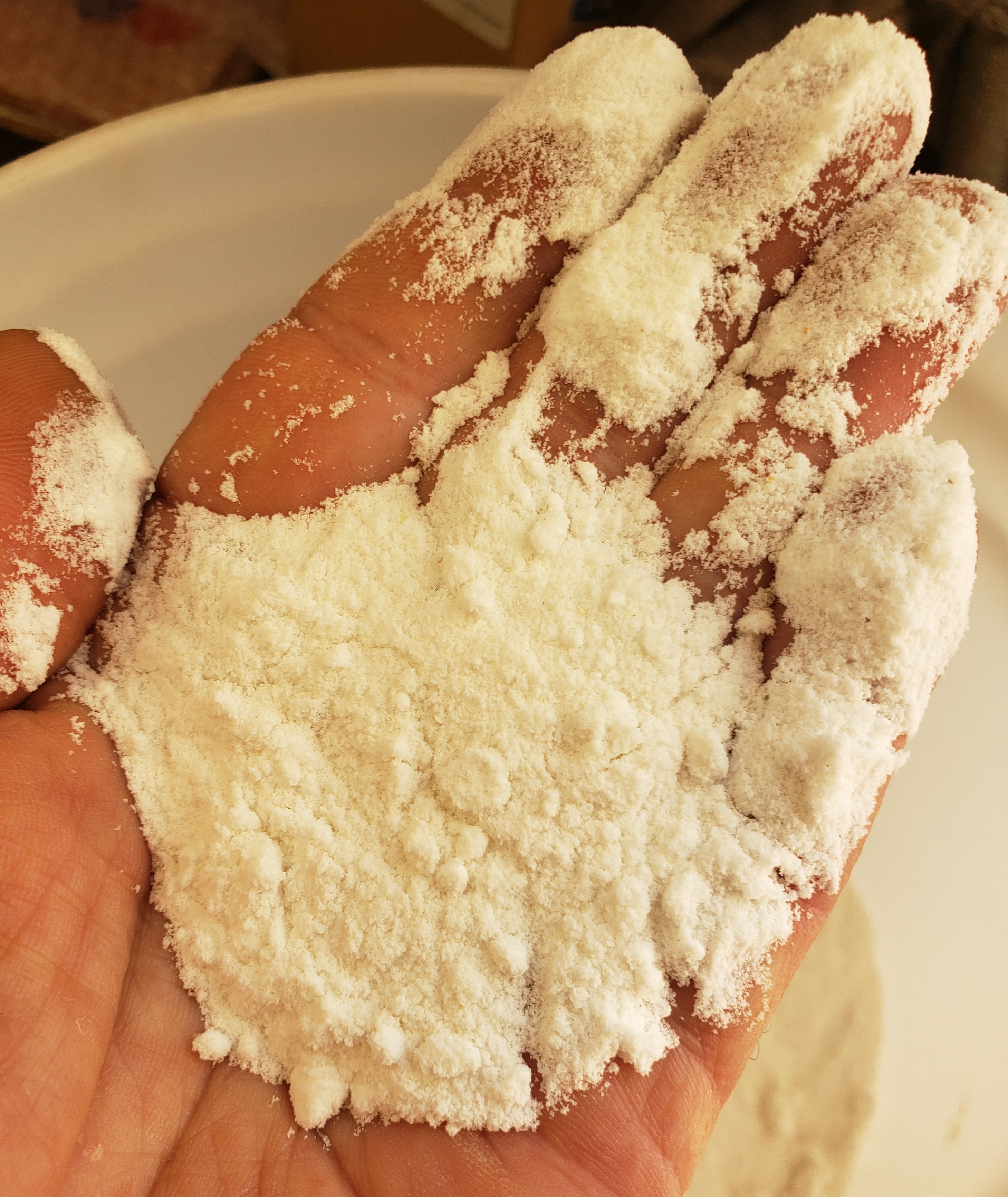

Magnesium Chloride	Magnesium Chloride	Magnesium Chloride	Magnesium Chloride
Click here for a video of Magnesium Chloride through a 0.4mm screen. Click here for a video of Magnesium Chloride through a 0.4mm screen. Click here for a video of Magnesium Chloride through a 0.4mm screen. *We were able to run 10 pounds through the model 198 Hammer Mill with a 6mm Screen in about a minute. *We were able to run 4 pounds through the model 230 Fine Grinder with a 0.4mm Screen in about 3 minutes. We also ran this material through our Model 198 5.3hp 220v Three Phase Hammer Mill.

---

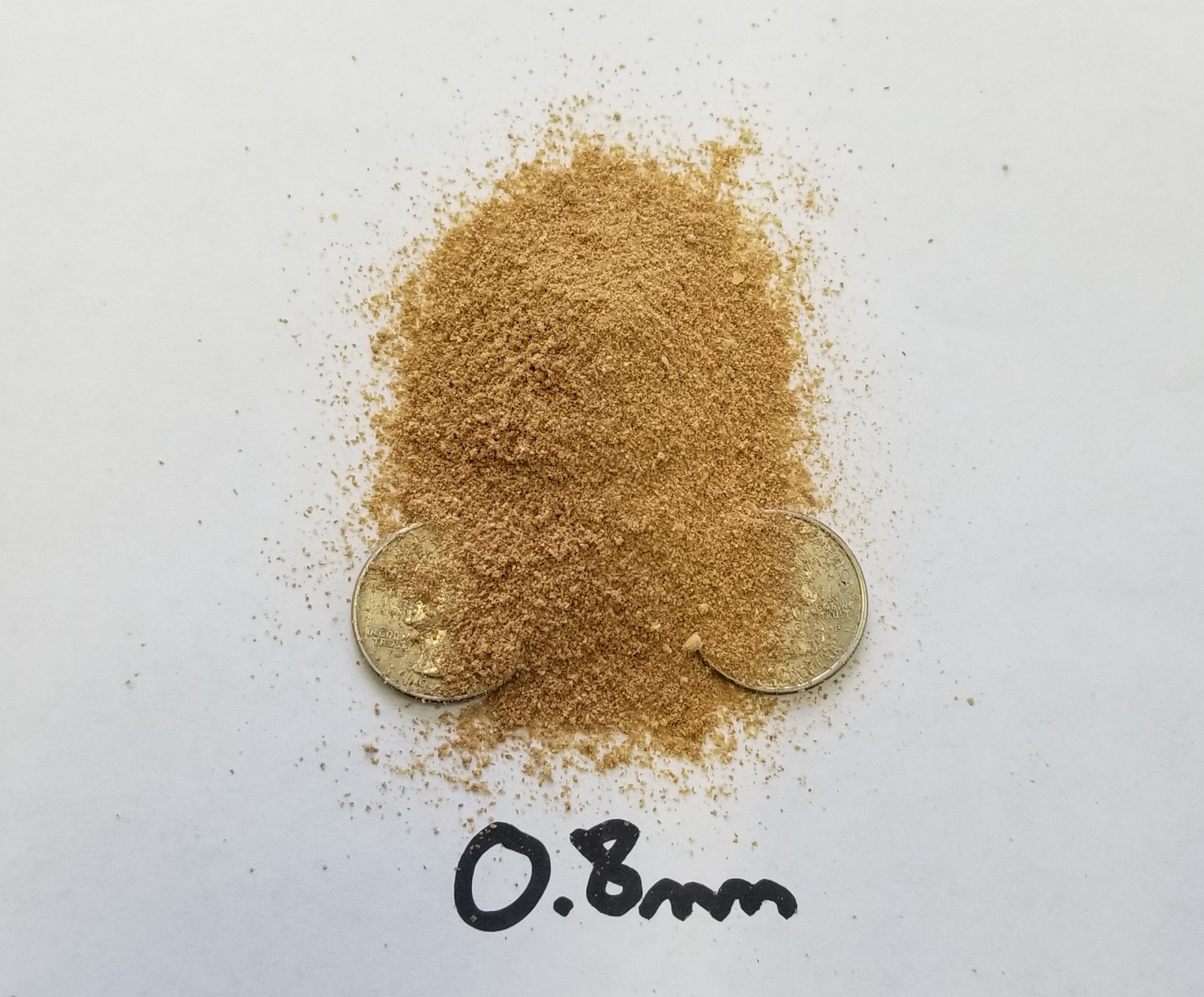

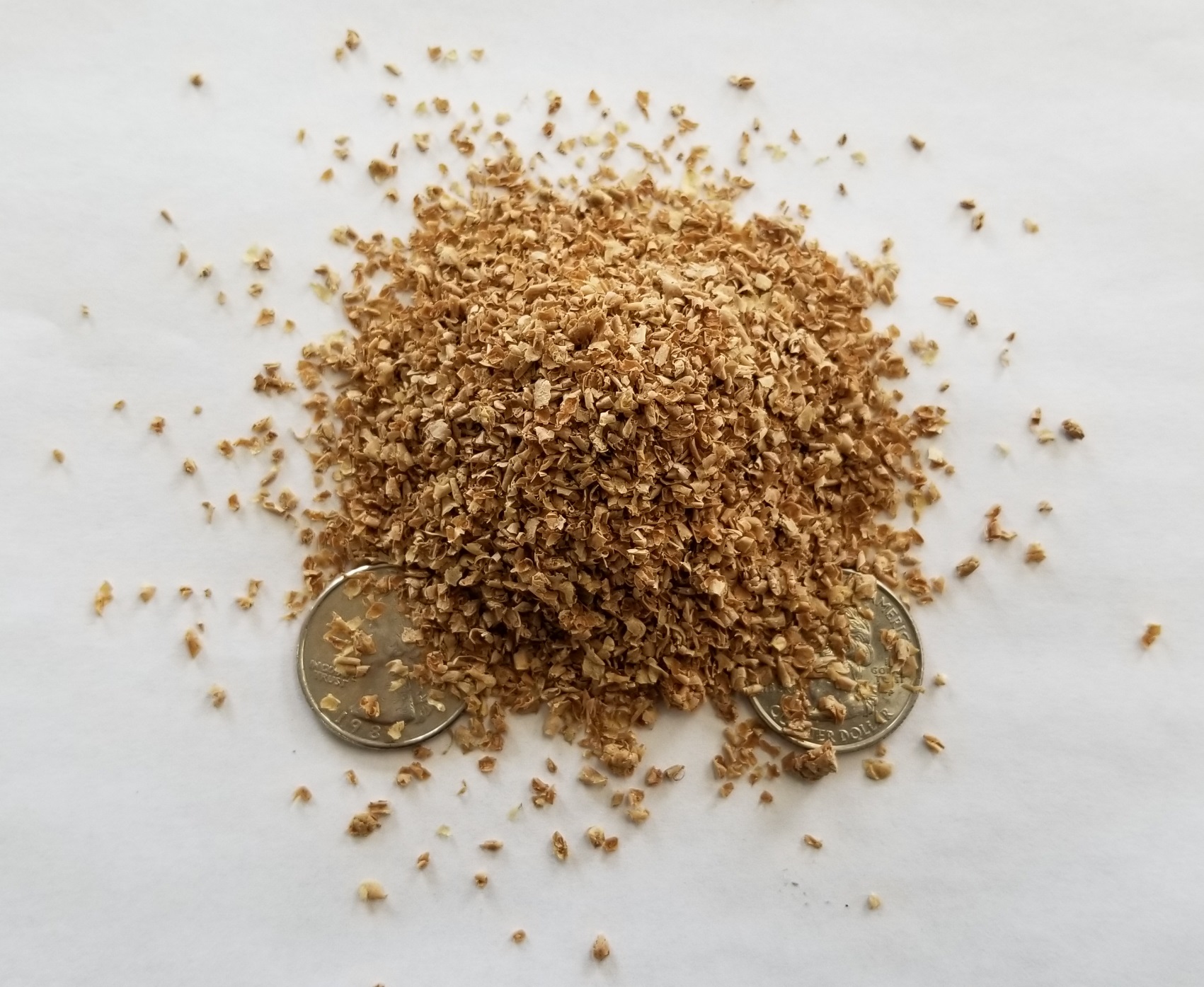

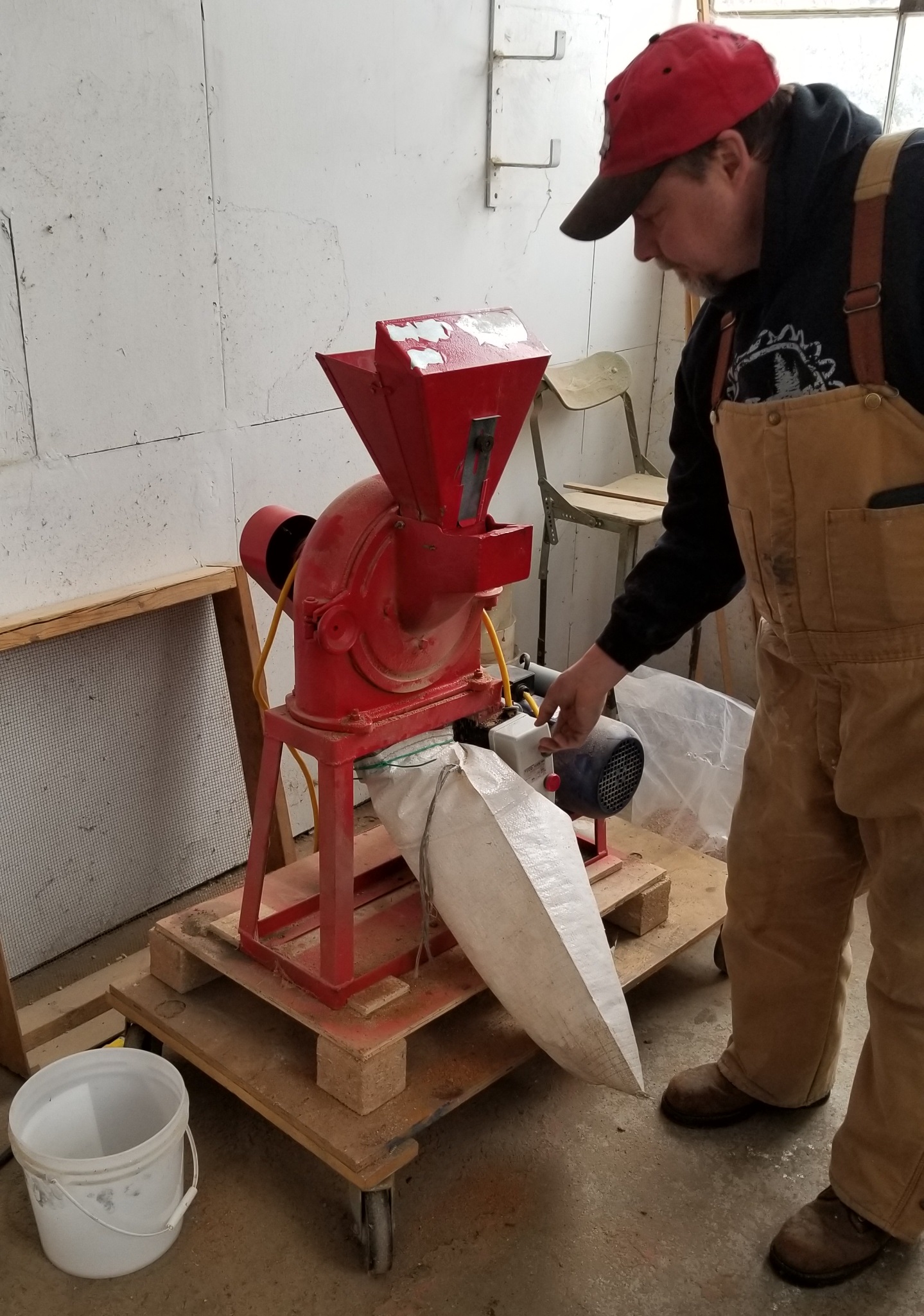

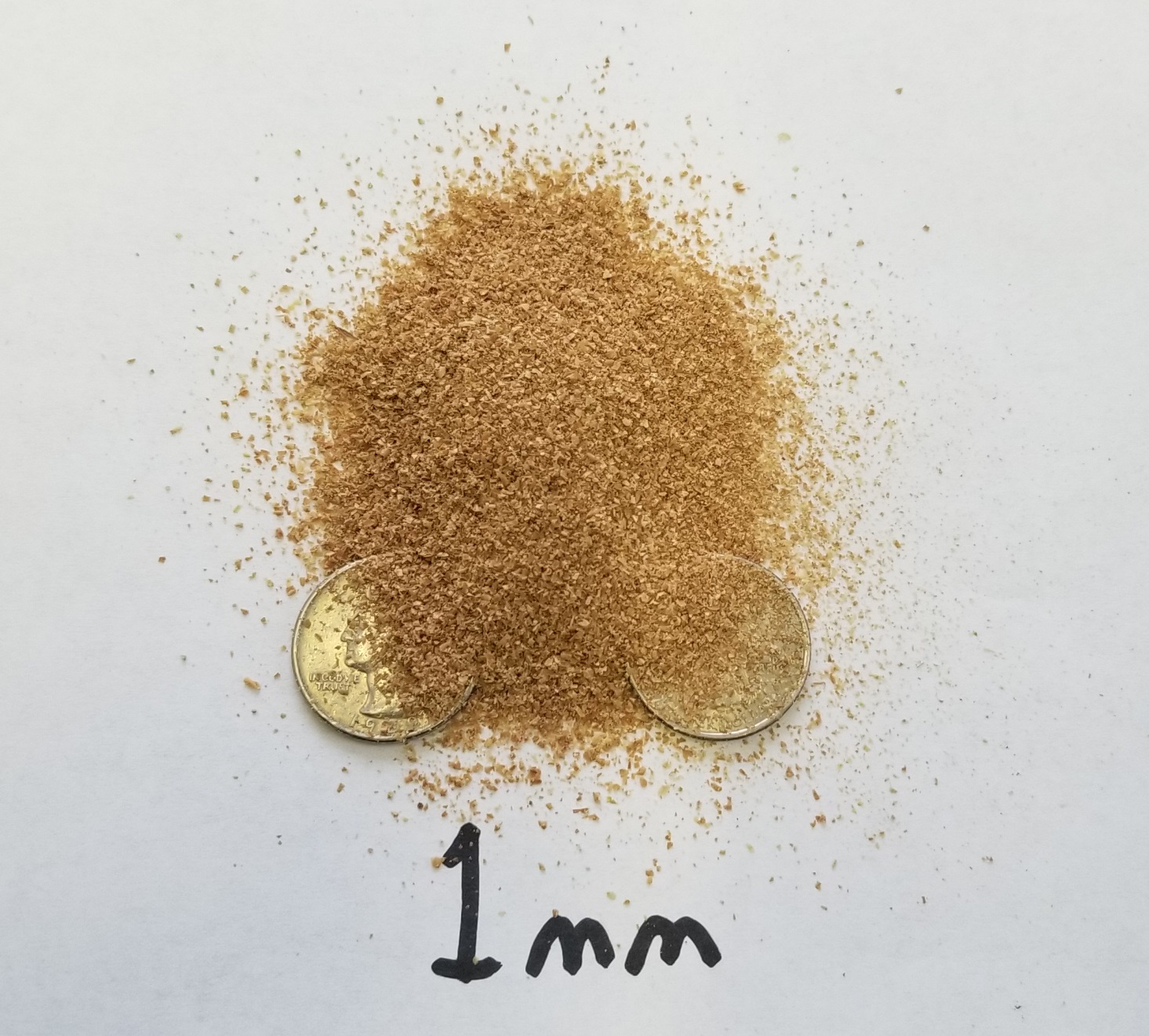

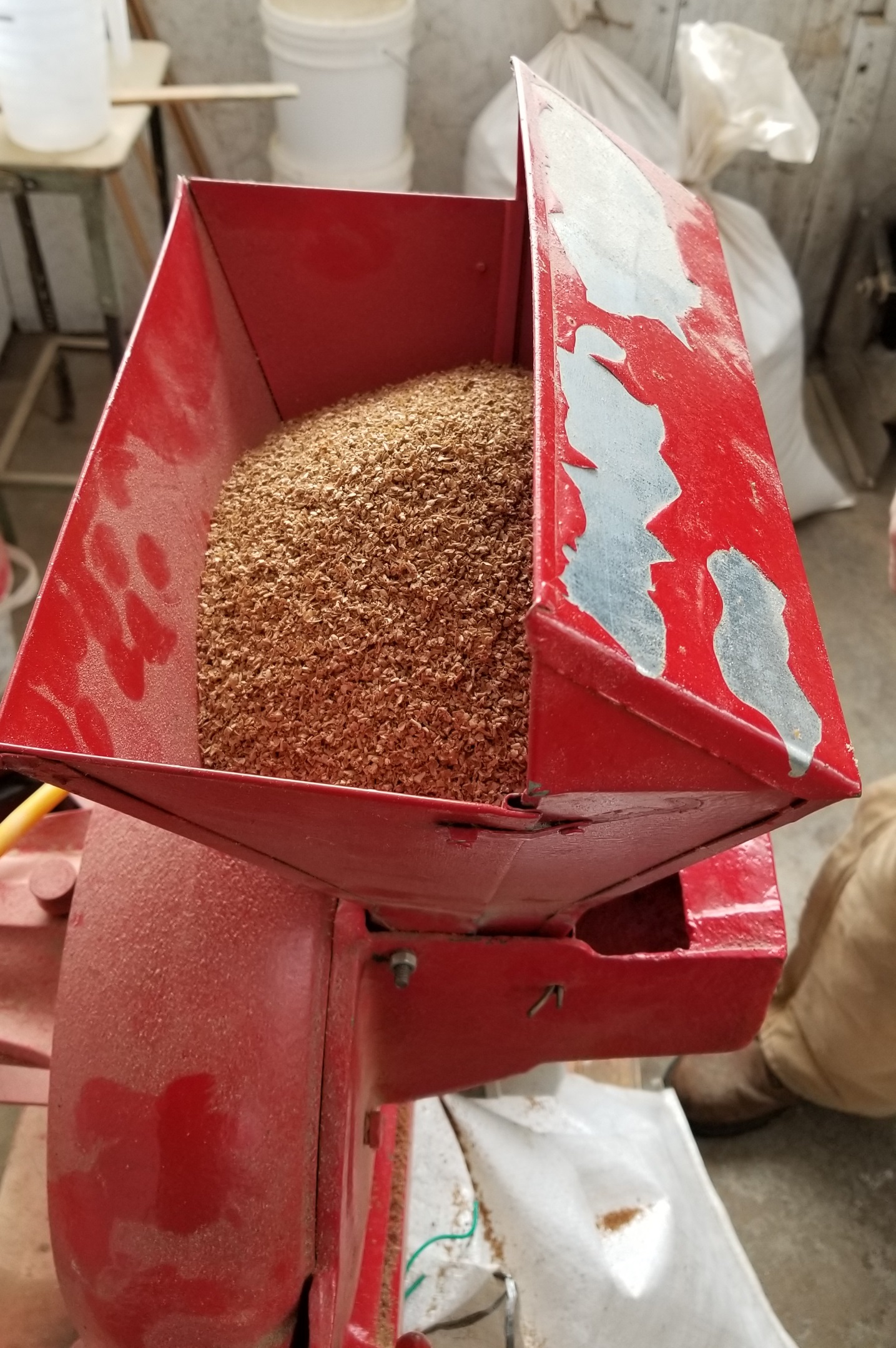

Wheat Bran run through the Model 230 Fine Grinder with 0.8mm and 1mm screens. (wheatbranG)

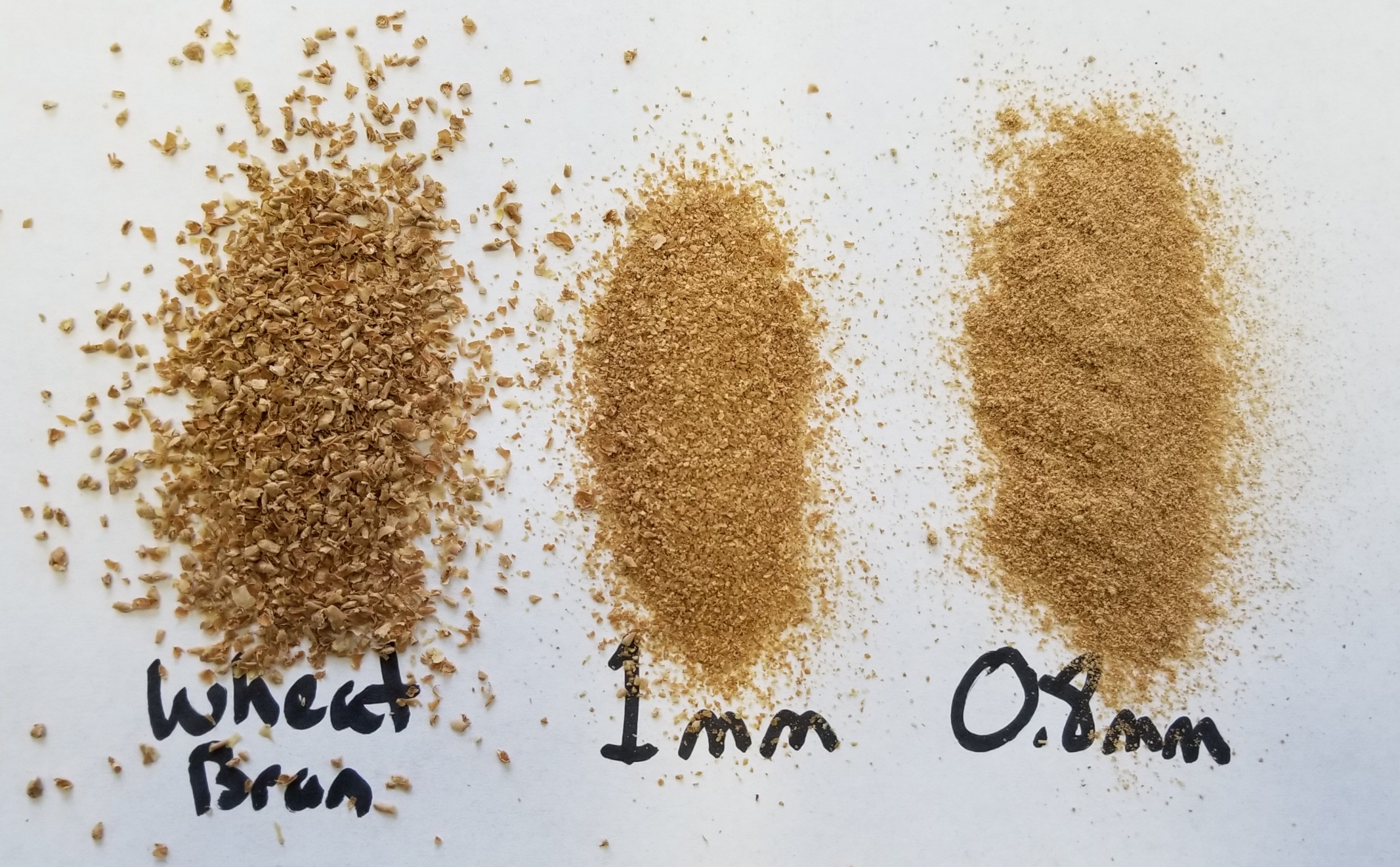

Wheat Bran Bran - 0.8mm Screen Bran - Sample Run	Wheat Bran Bran - 0.8mm Screen Bran - Sample	Wheat Bran Bran - 1mm Screen Bran - 0.8mm Screen	Screen Comparison Bran - 1mm Screen Bran - 1mm Screen
Click here for a video of the wheat bran sample through a 0.8mm screen. Click here for a video of the wheat bran sample through a 1mm screen.

---

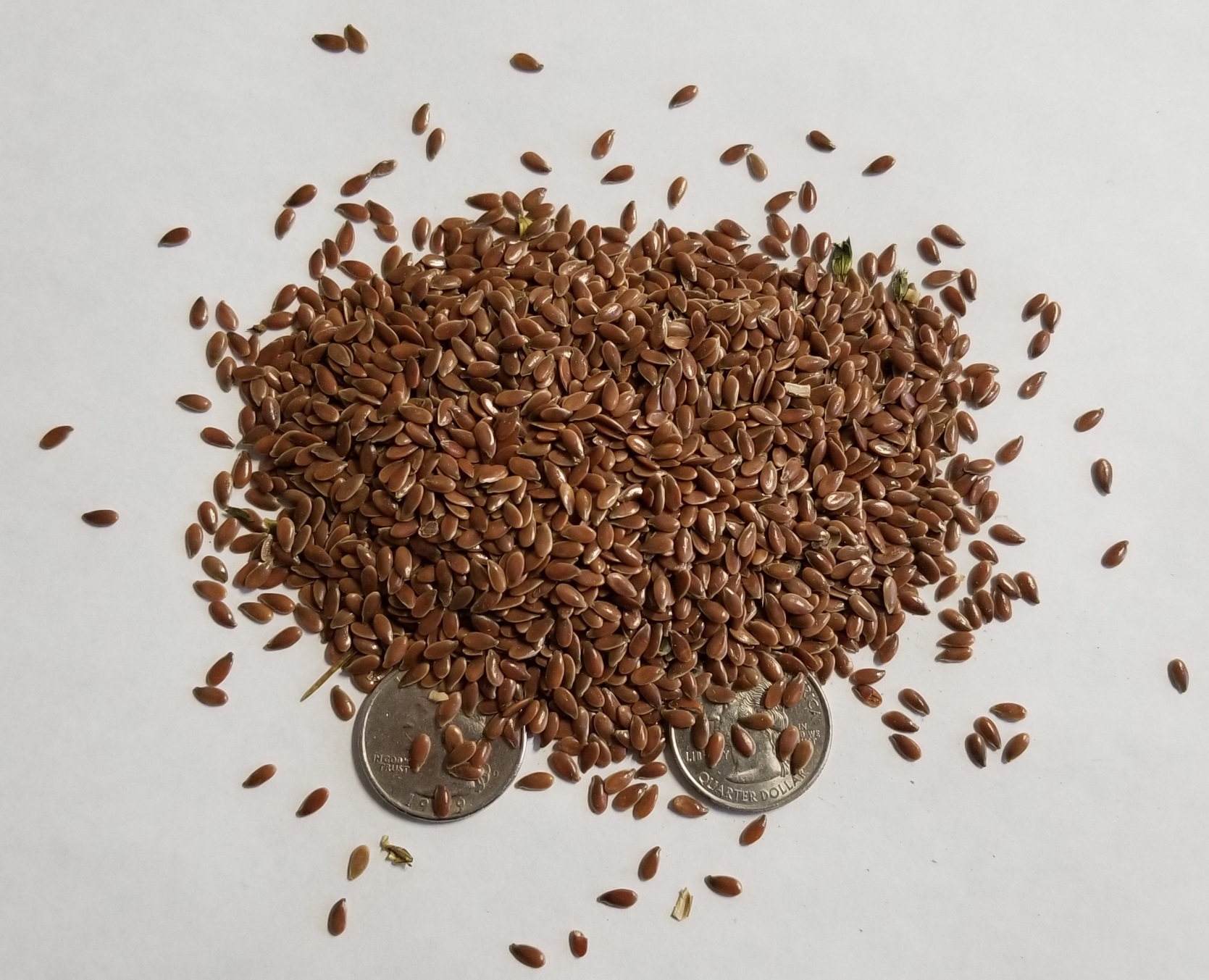

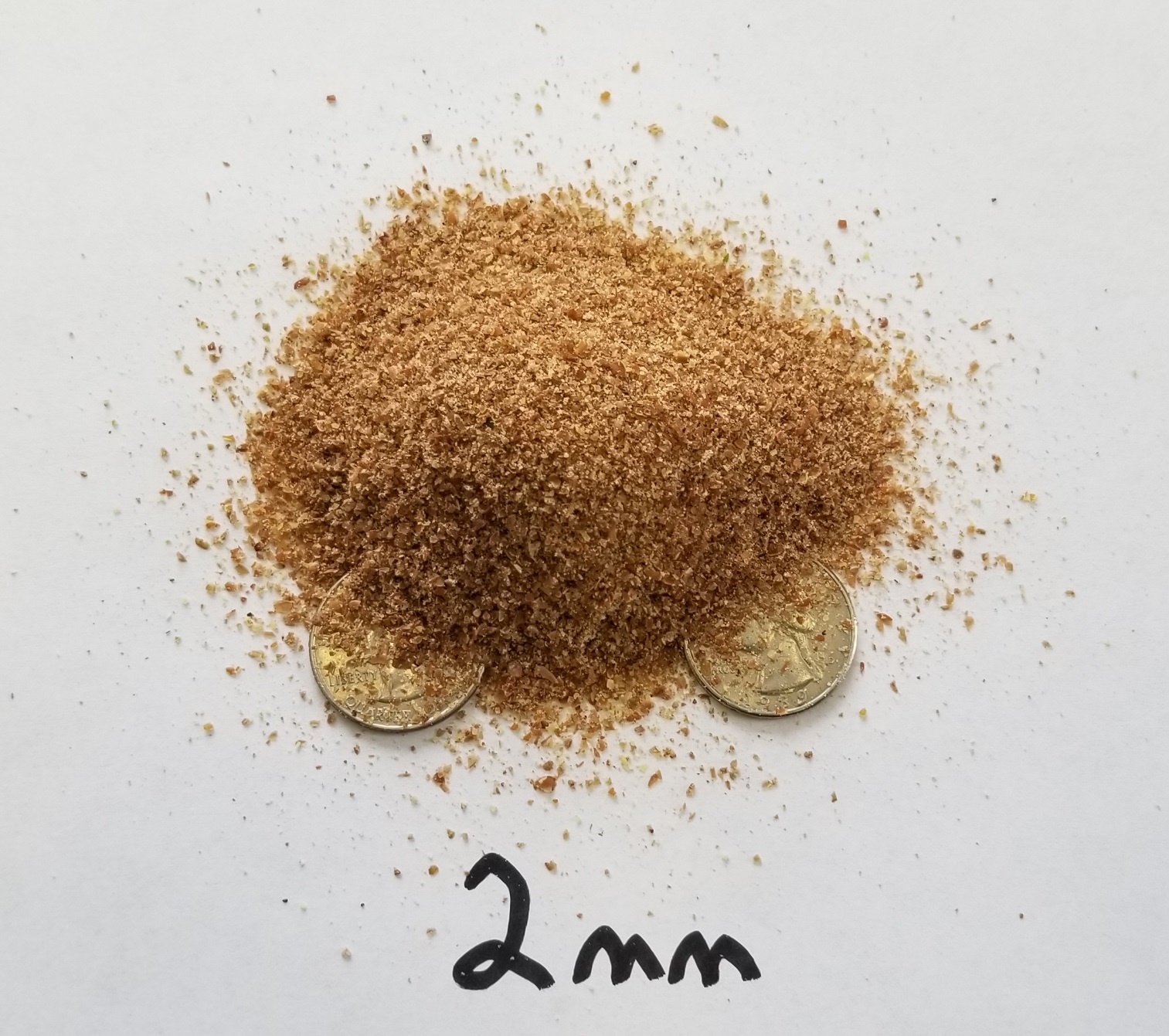

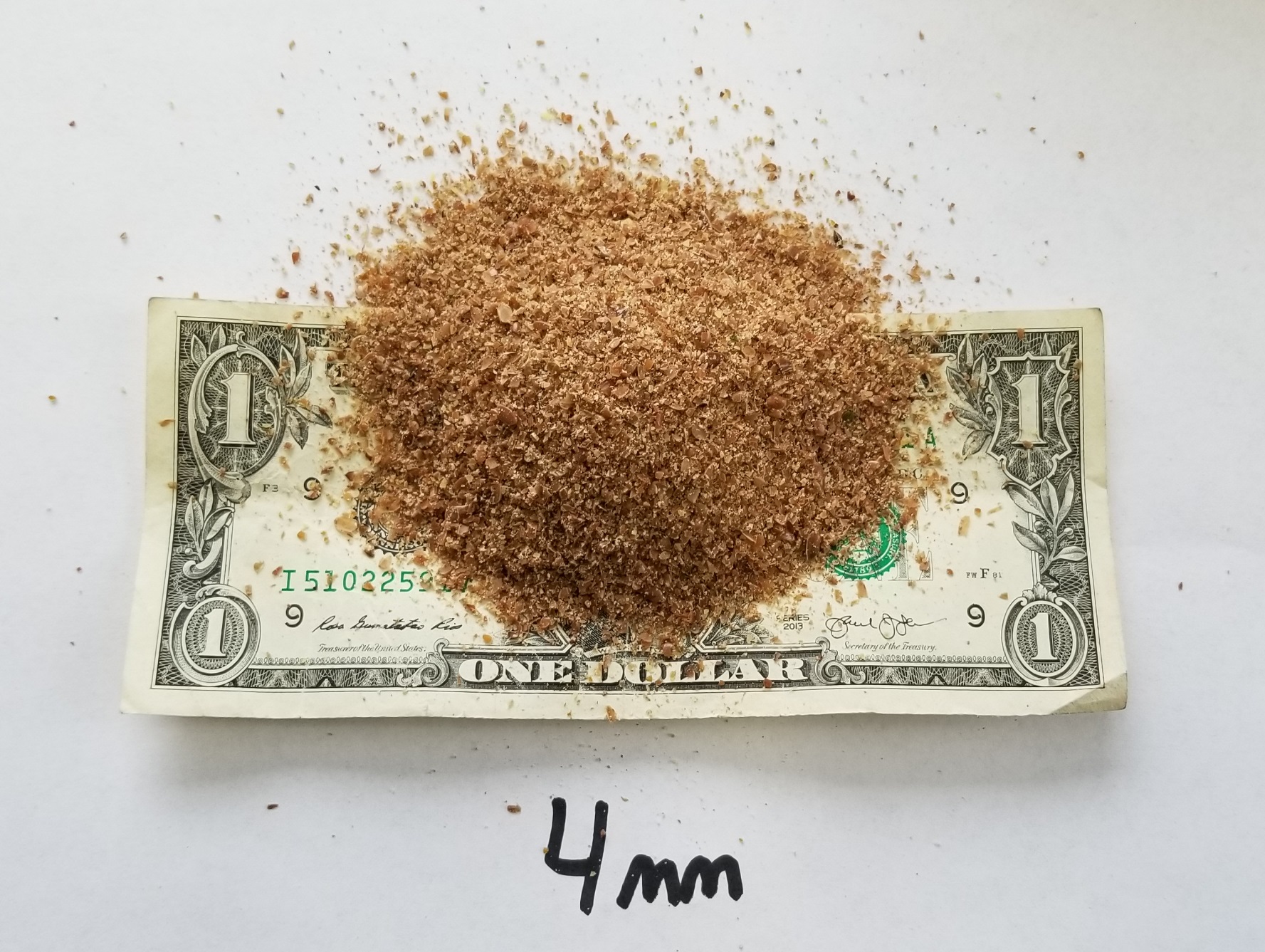

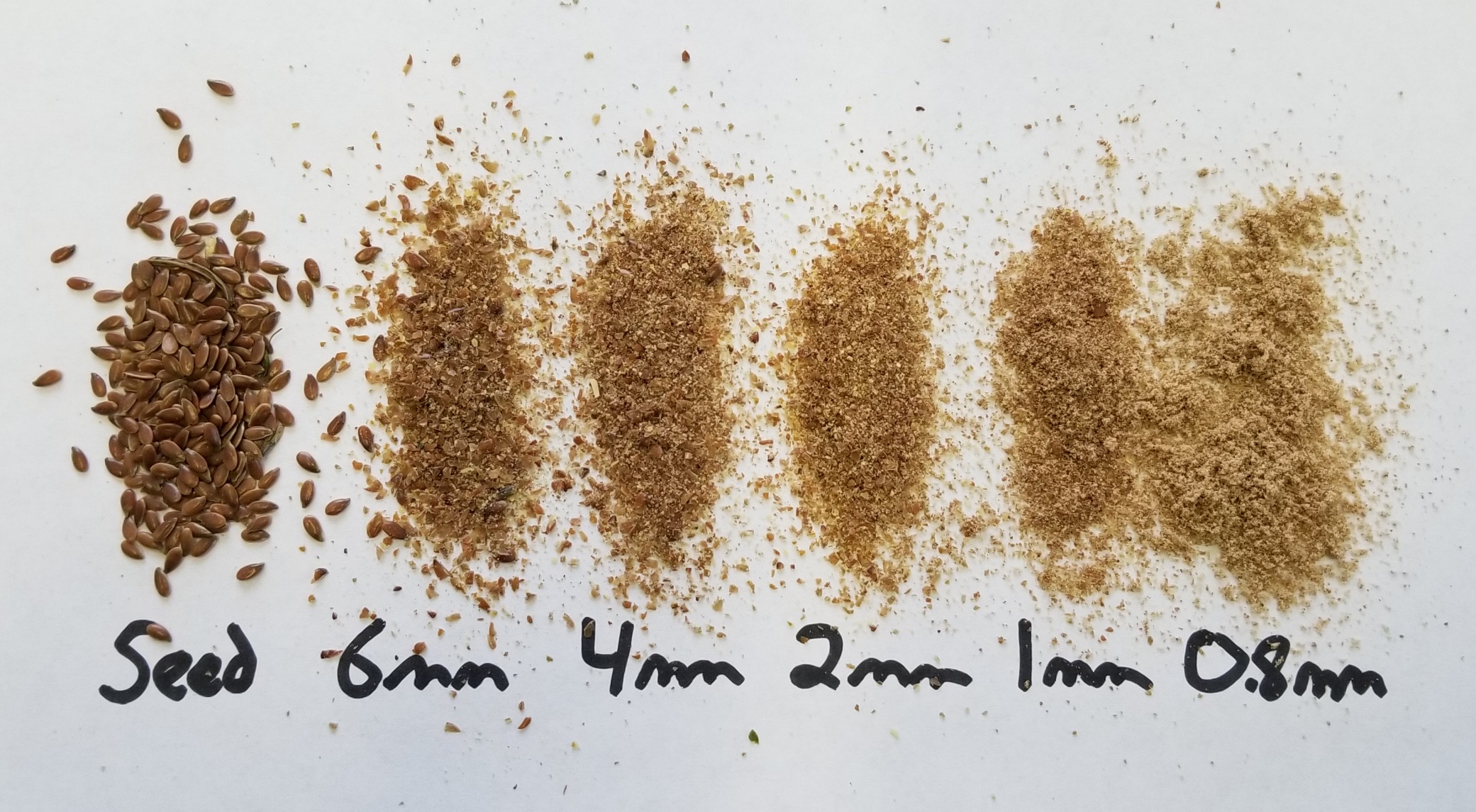

Flax seed run through the Model 230 Fine Grinder with various screen sizes. (flaxseedG)

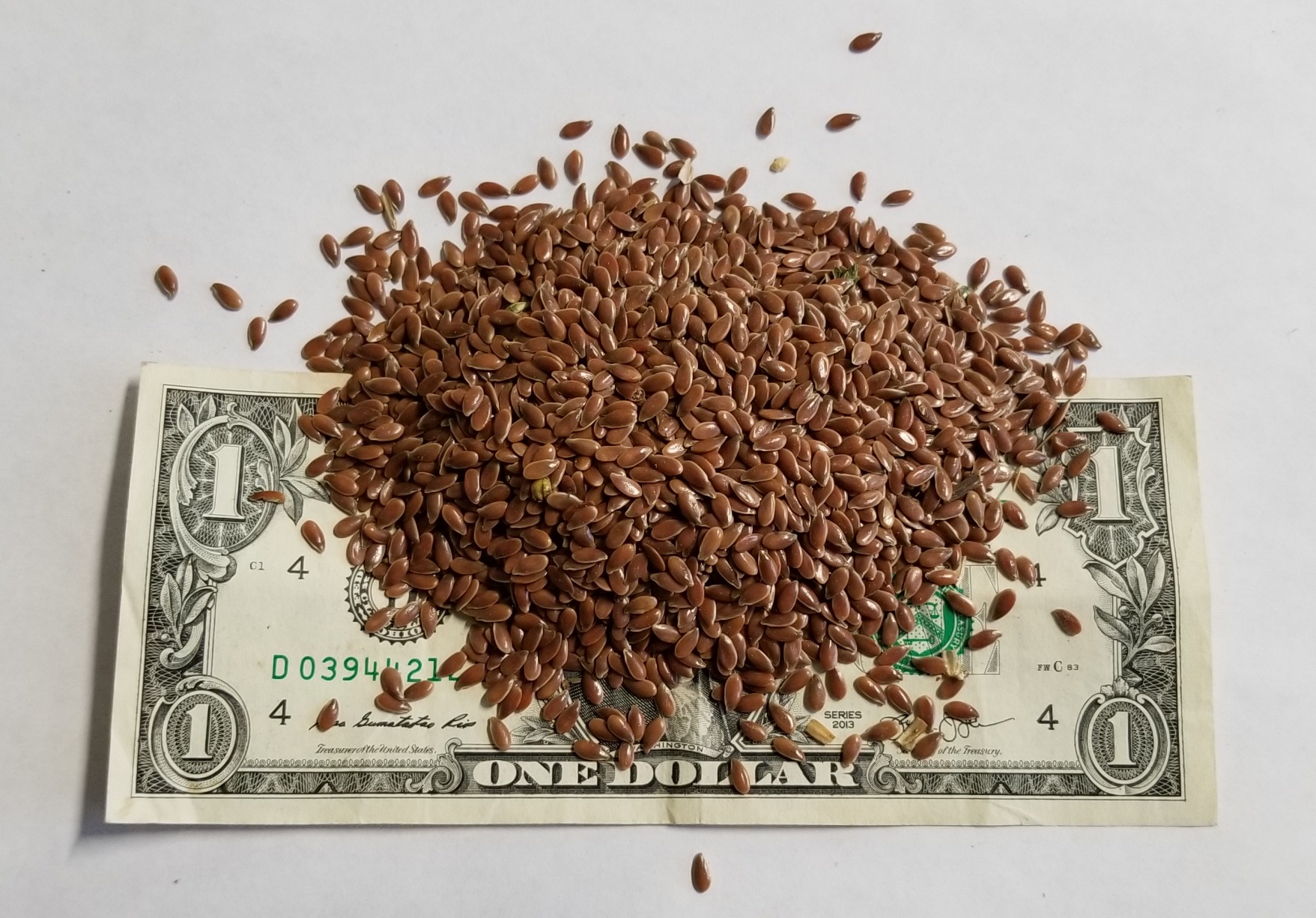

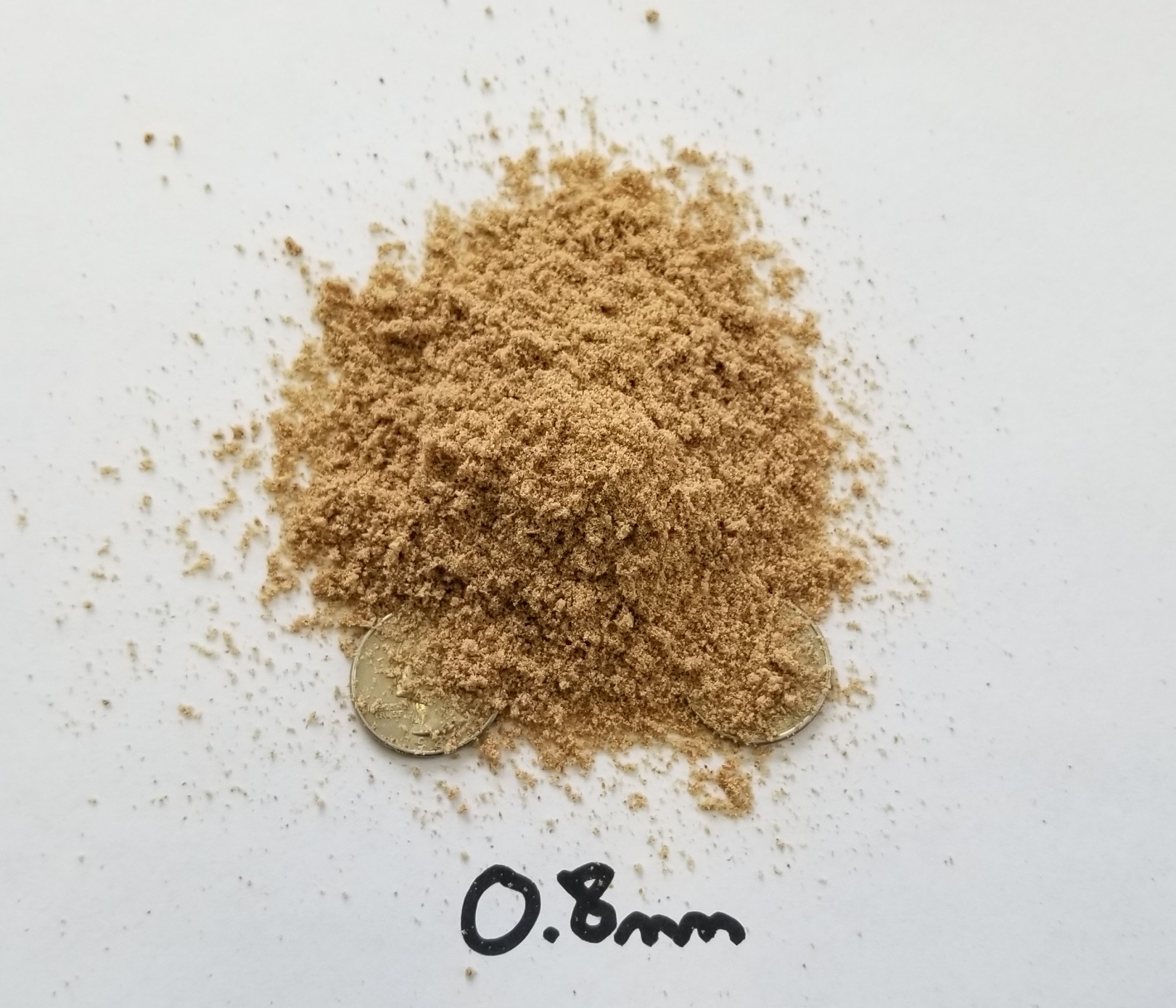

Flax Seed Flax - 1mm Screen Flax - 4mm Screen Screen Comparison	Flax Seed Flax - 1mm Screen Flax - 4mm Screen Flax - 0.8mm Screen	Flax - 0.8mm Screen Flax - 2mm Screen Flax - 6mm Screen Flax - 6mm Screen	Flax - 0.8mm Screen Flax - 2mm Screen Flax - 6mm Screen Flax - 6mm Screen
Click here for a video of the flax seed sample. Click here for another video of the flax seed sample. Click here for another video of the flax seed sample.

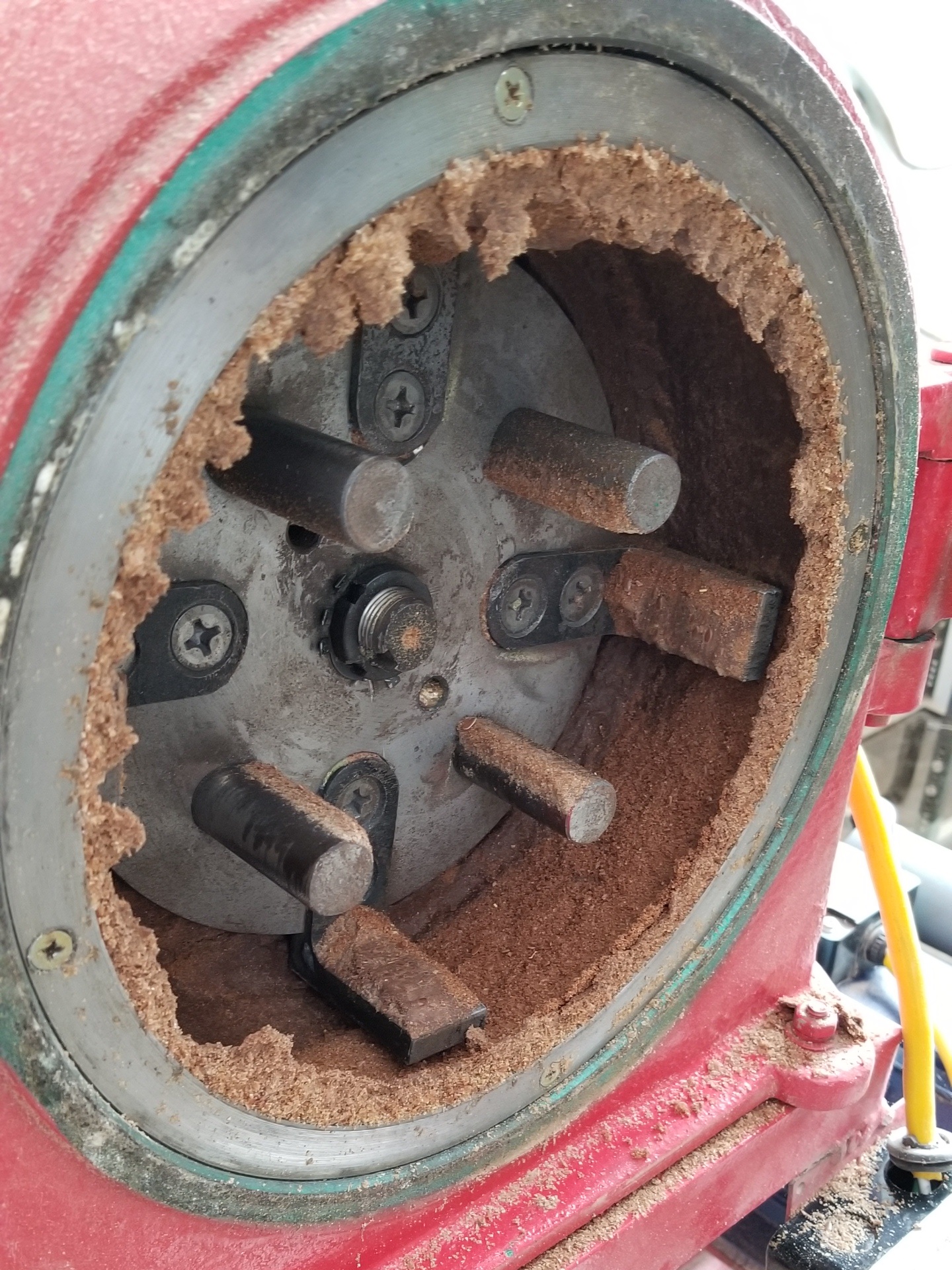

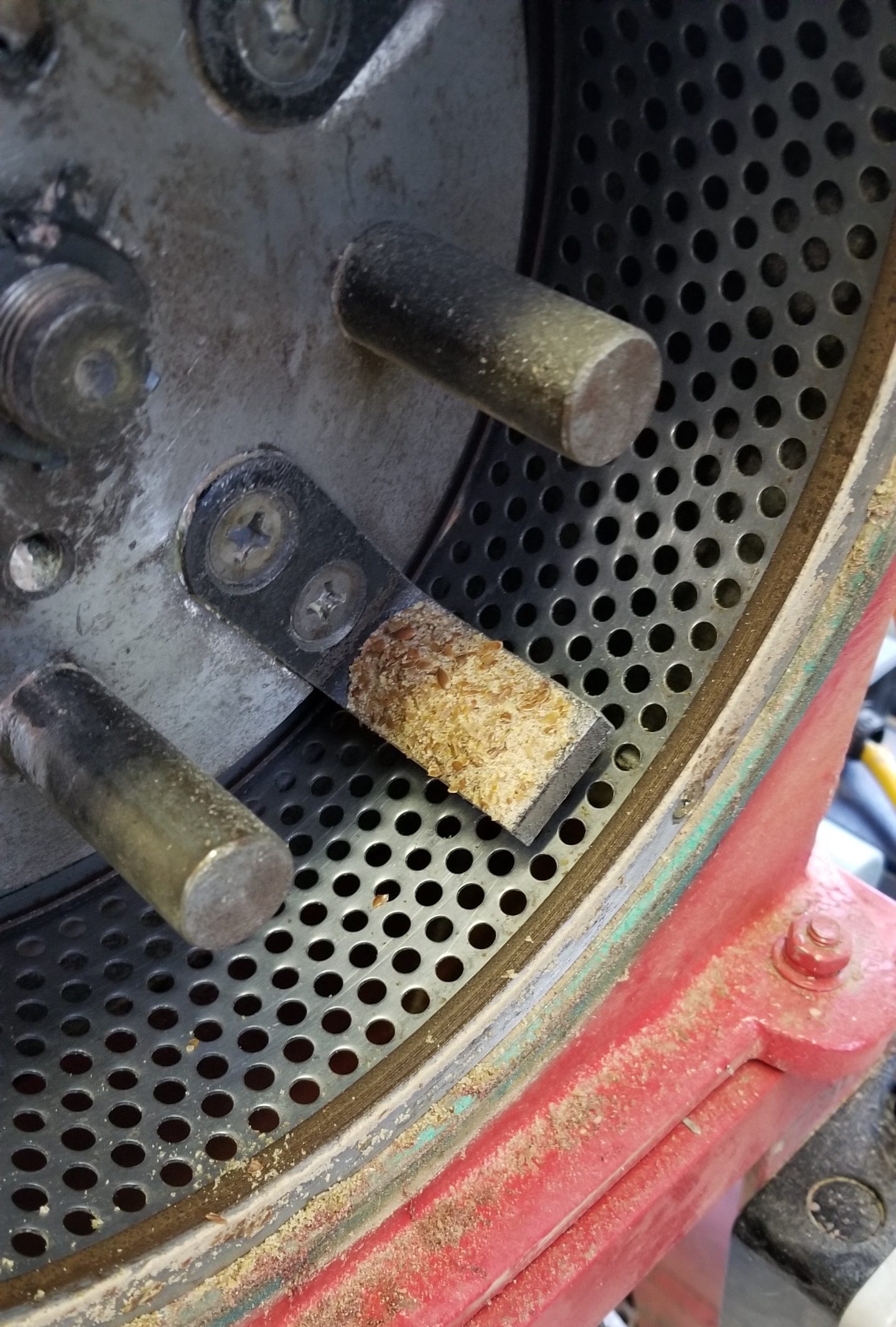

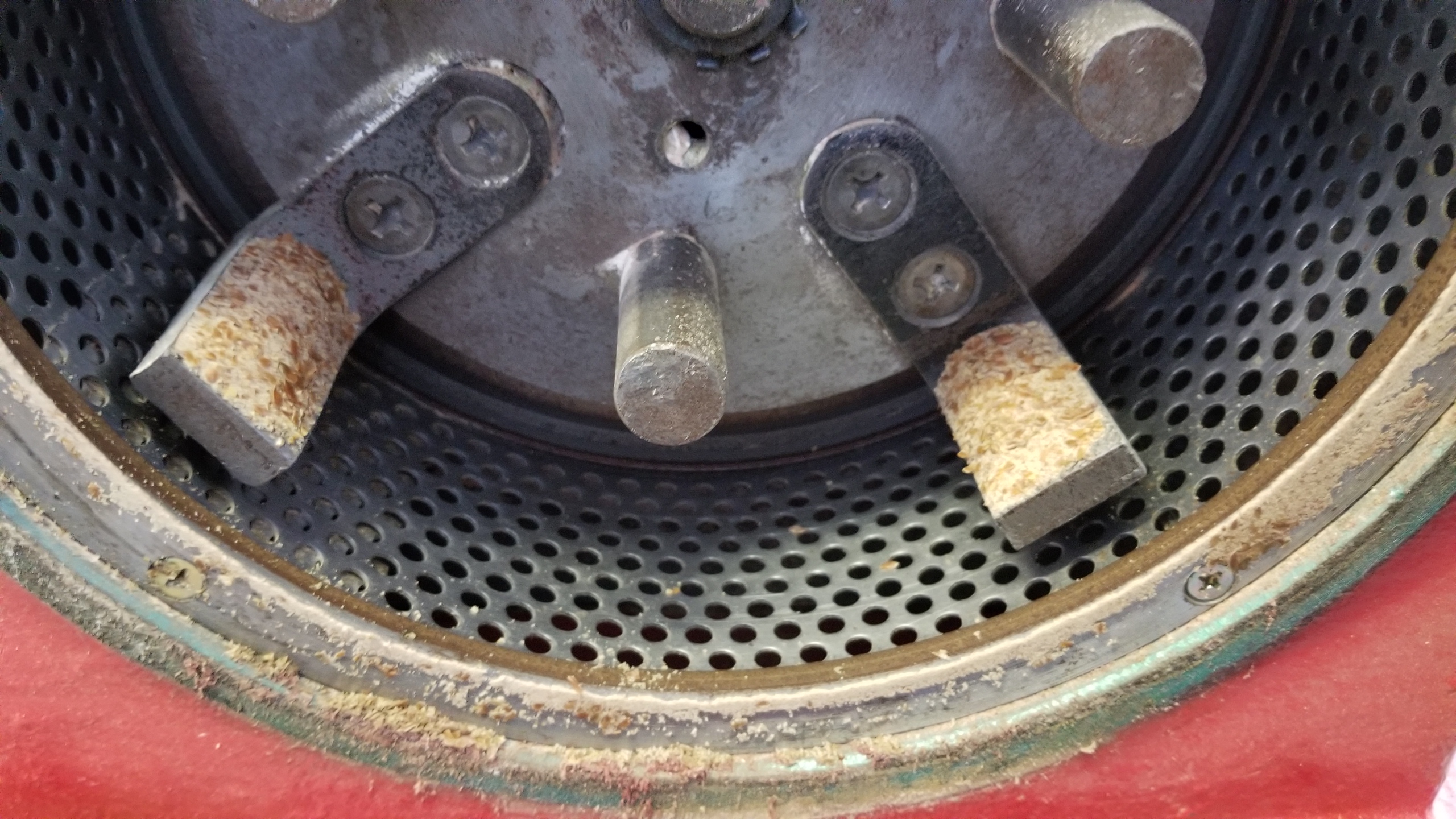

The model 230 was not able to process the flax seed with the 0.8mm screen because of the flax seed oil. Initially, it was working, but after a gallon or so of material the screen clogged. We changed to a 1mm screen and achieved positive results with the larger screen. The model 230 was then able to process the flax seed continually.

---

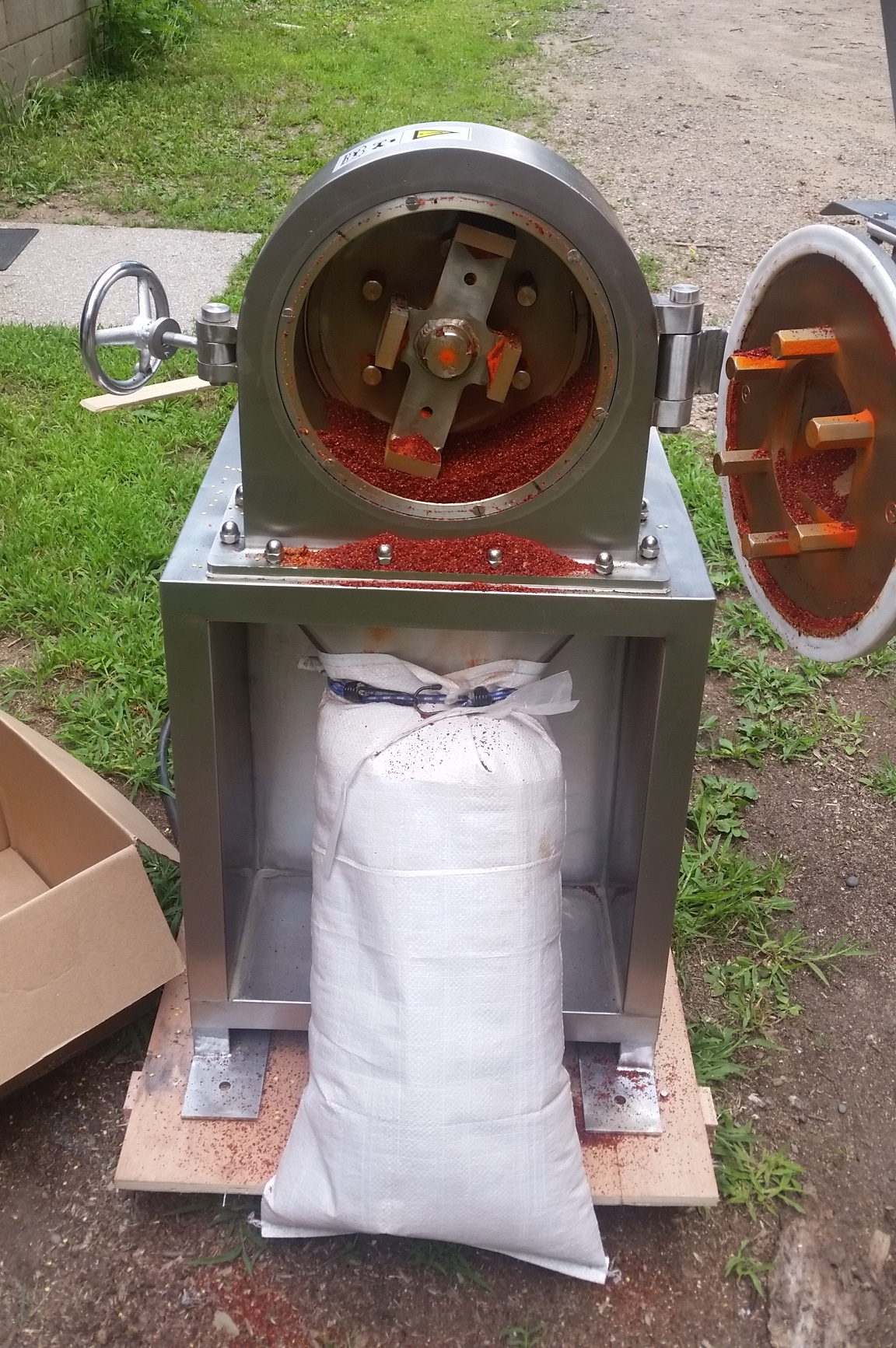

Dried chili peppers run through the Stainless Steel Fine Grinder using an 80 mesh screen. (chiliSS)

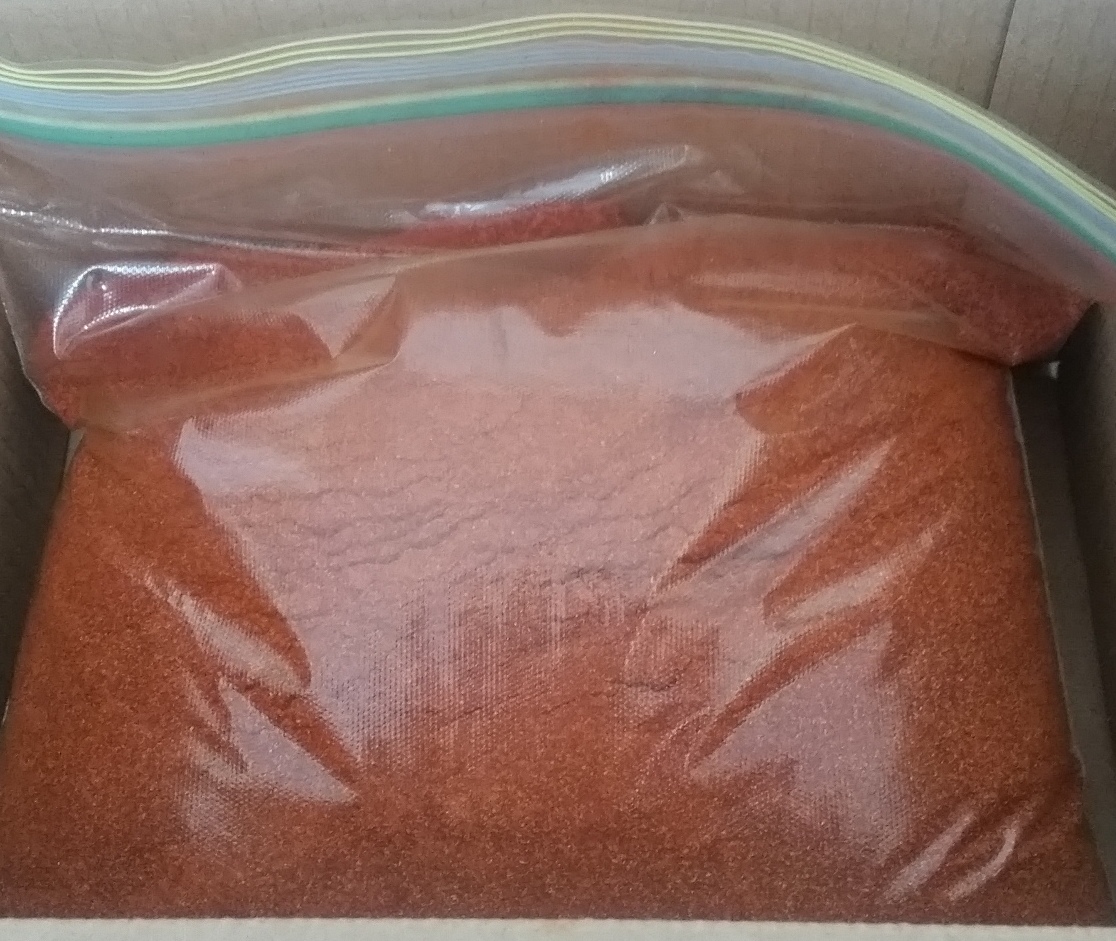

Dried Chili Peppers	Grinding Chili Peppers	Ground Chili Powder
Click here for a video of the dried chili peppers sample.
